Chapter 8 Installing B68 Cabinets
8.1 Installation Requirements and Procedures
8.1.1 Planning the Site
Plan the installation site before installing the cabinet, allowing adequate clearance around the

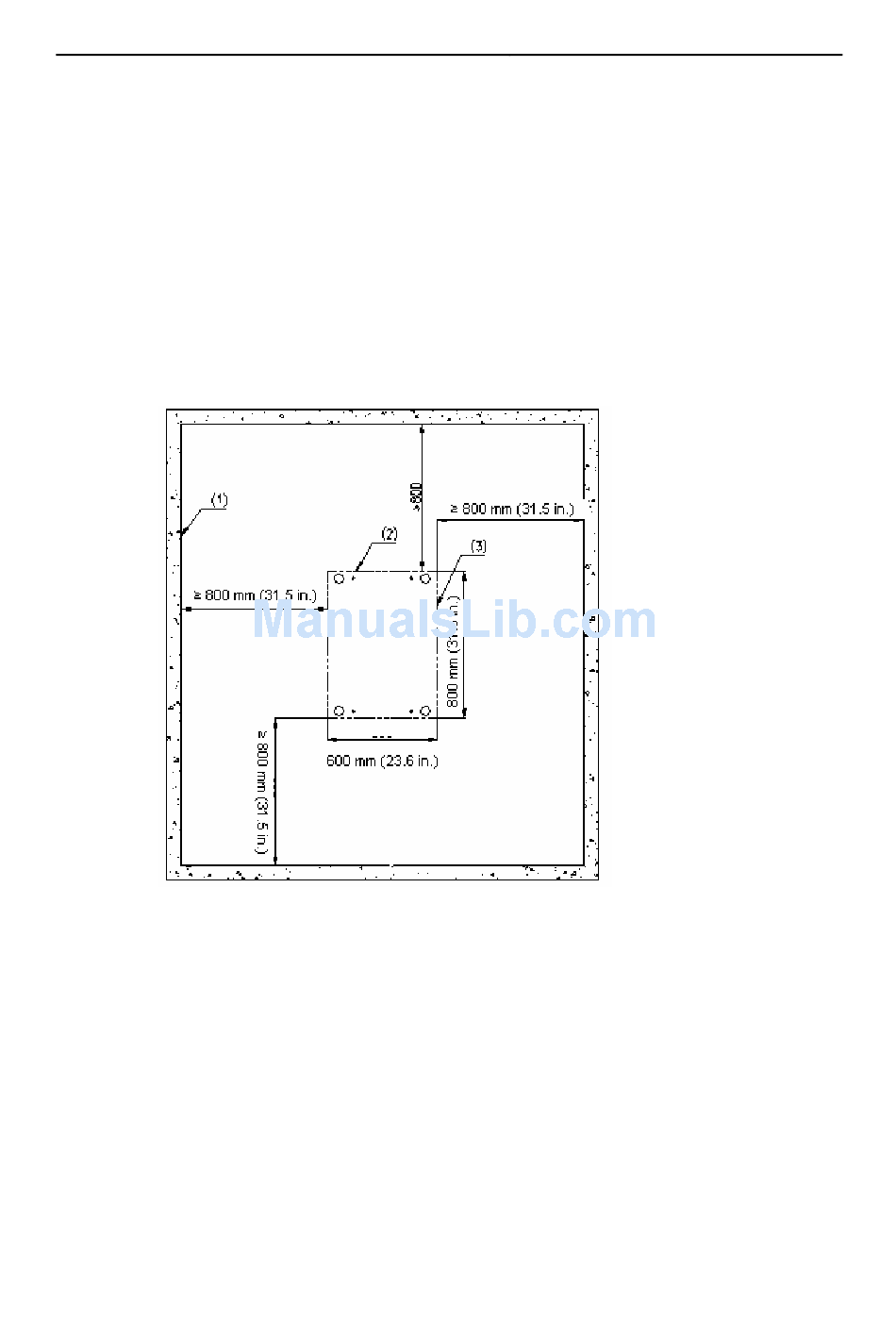

cabinet for operation and maintenance. Figure 8-1 shows the footprint of a single cabinet and
Figure 8-2 shows the footprint of combined cabinets.
1) Inner wall or reference
Figure 8-1 Footprint of the cabinet
2) Cabinet rear
3Com Corporation
8-1
Installing B68 Cabinets
3) outer dimensions of the cabinet
Chapter 8
