Combining Cabinets - 3Com 6040 Installation Manual

3Com Router 6000 Family
Installation Manual
1) Retaining nut of cabinets
3) Retaining nut of anchor strips

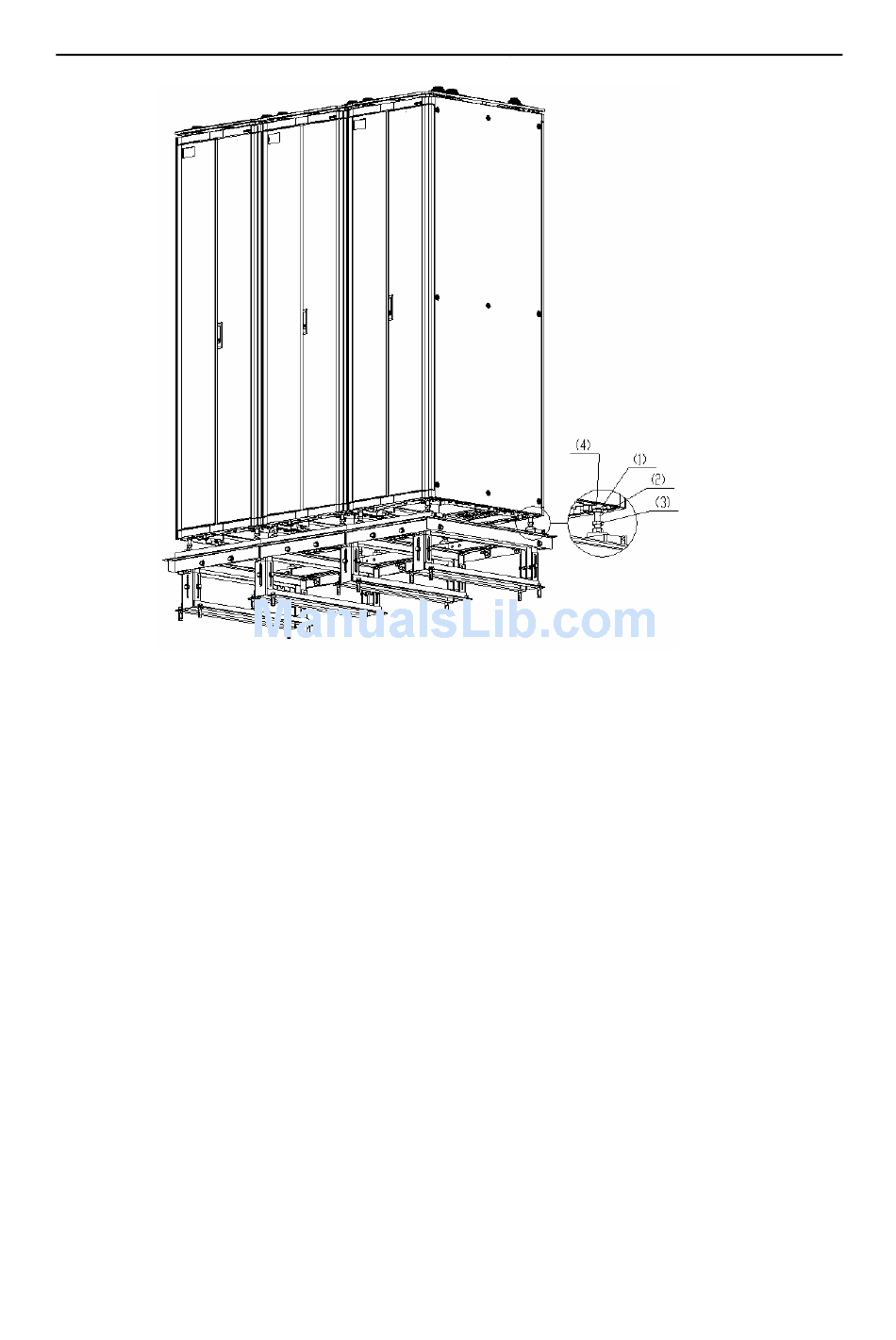

Figure 8-33 Fasten cabinet feet

8.3.9 Combining Cabinets

If multiple cabinets are used, follow these steps to connect them together:
1) Remove the cabinet covers as shown in Figure 8-34.
2) Rotate the combining brackets on top of the cabinets 180 degrees, tighten them,
and connect the cabinets with flat washers, spring washers, bolts and nuts, as
shown in Figure 8-35.
3) Figure 8-34 illustrates the original position of the combining brackets and Figure
8-35 illustrates the position after they are rotated.
2) Cabinet feet
4) Lower enclosure frame of the cabinet
3Com Corporation
8-29
Chapter 8
Installing B68 Cabinets
