6.6.2 Installing the Encryption Daughter Card

Take these steps to install the encryption daughter card:
Step 1: Locate the position of the encryption daughter card on the RPU2.
Step 2: Fasten four bolts on the RPU2 using four screws, which can fix and support the
card.

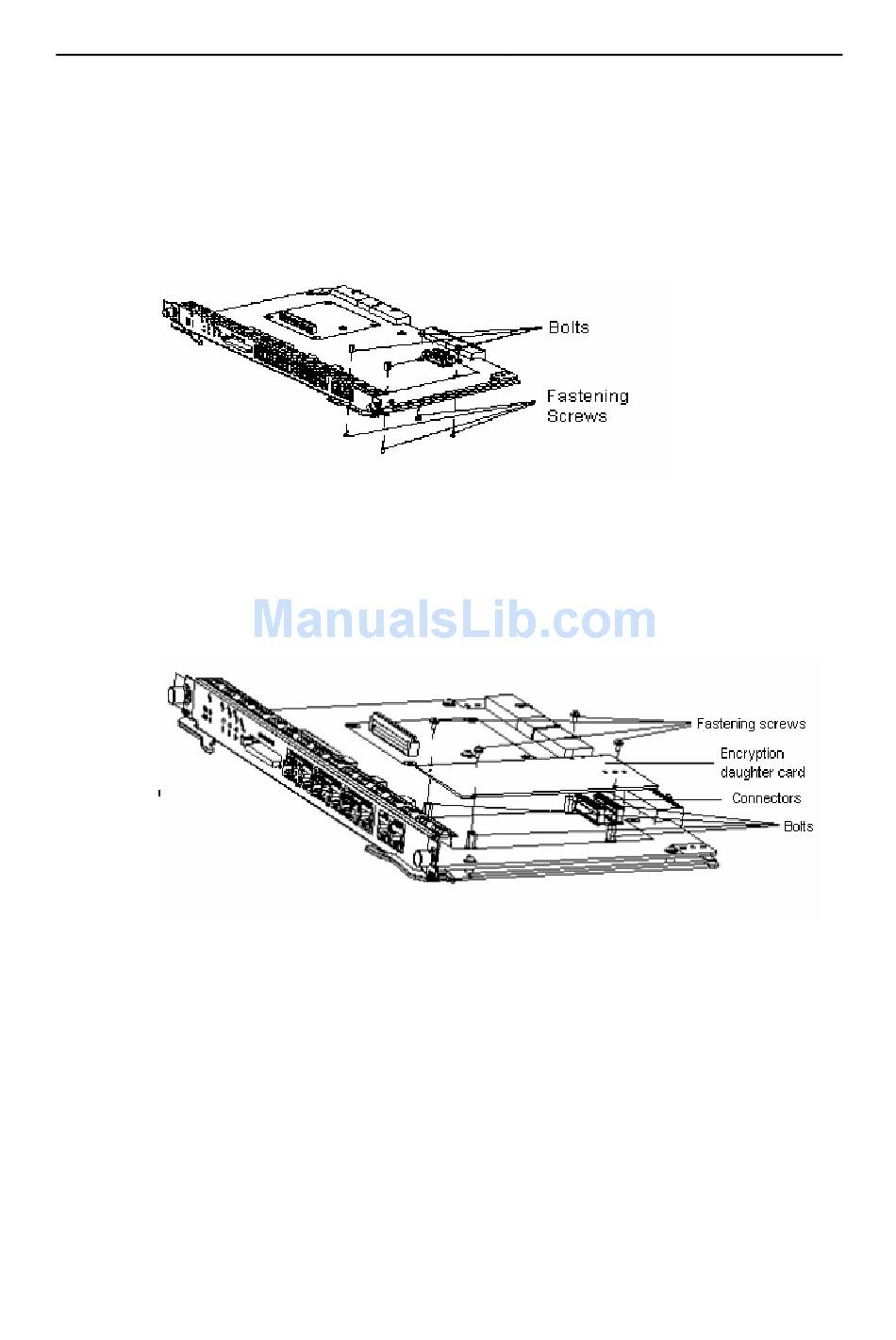

Figure 6-7 Install the encryption daughter card I
Step 3: Install the encryption daughter card on the RPU2 and fix it using another four
screws. Make sure that the two connectors on the bottom of the card are aligned with
the connectors on the RPU2 to avoid connector damages.
Figure 6-8 Install the encryption daughter card II
