I. Installing floor pallet fixing brackets and slide rail brackets
As shown in Figure 8-30, decide you want to install supports; then fasten the floor pallet fixing
brackets and rail brackets onto the slide rails with bolts, flat washers and spring washers.
Caution:
Make sure to use left and right brackets correctly.
1) 12 flat washer
5) Floor pallet fixing bracket

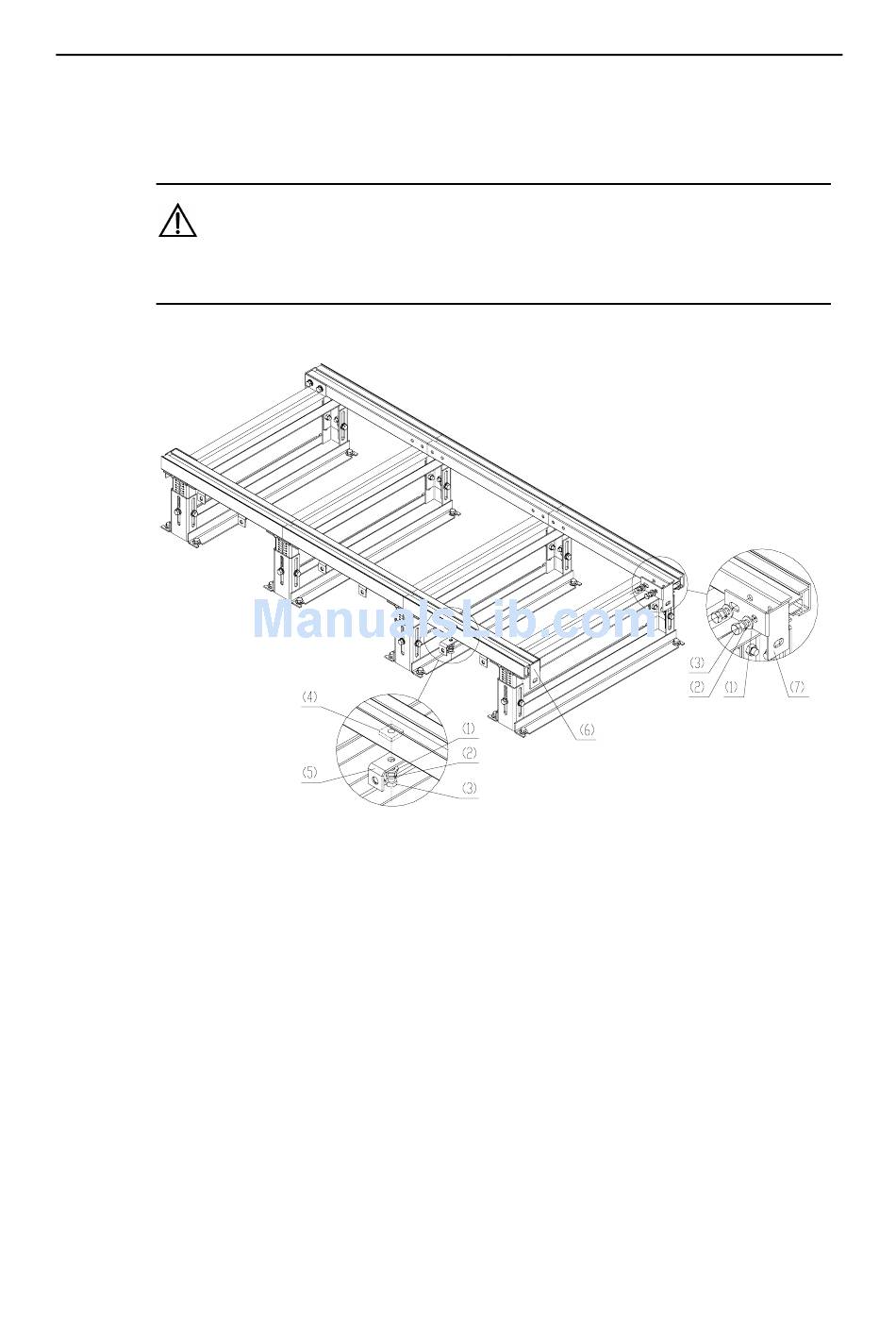

Figure 8-30 Install the floor pallet fixing brackets and slide rail brackets
II. Installing the supports for the antistatic floor
As shown in Figure 8-31, fix the front and side supports onto the floor pallet fixing brackets and
the slide rail brackets with M12×35 bolts, flat washers and spring washers.
2) 12 spring washer
6) Left bracket
