3Com Router 6000 Family
Installation Manual
1) M12 expansion bolt
4) Cabinet rear

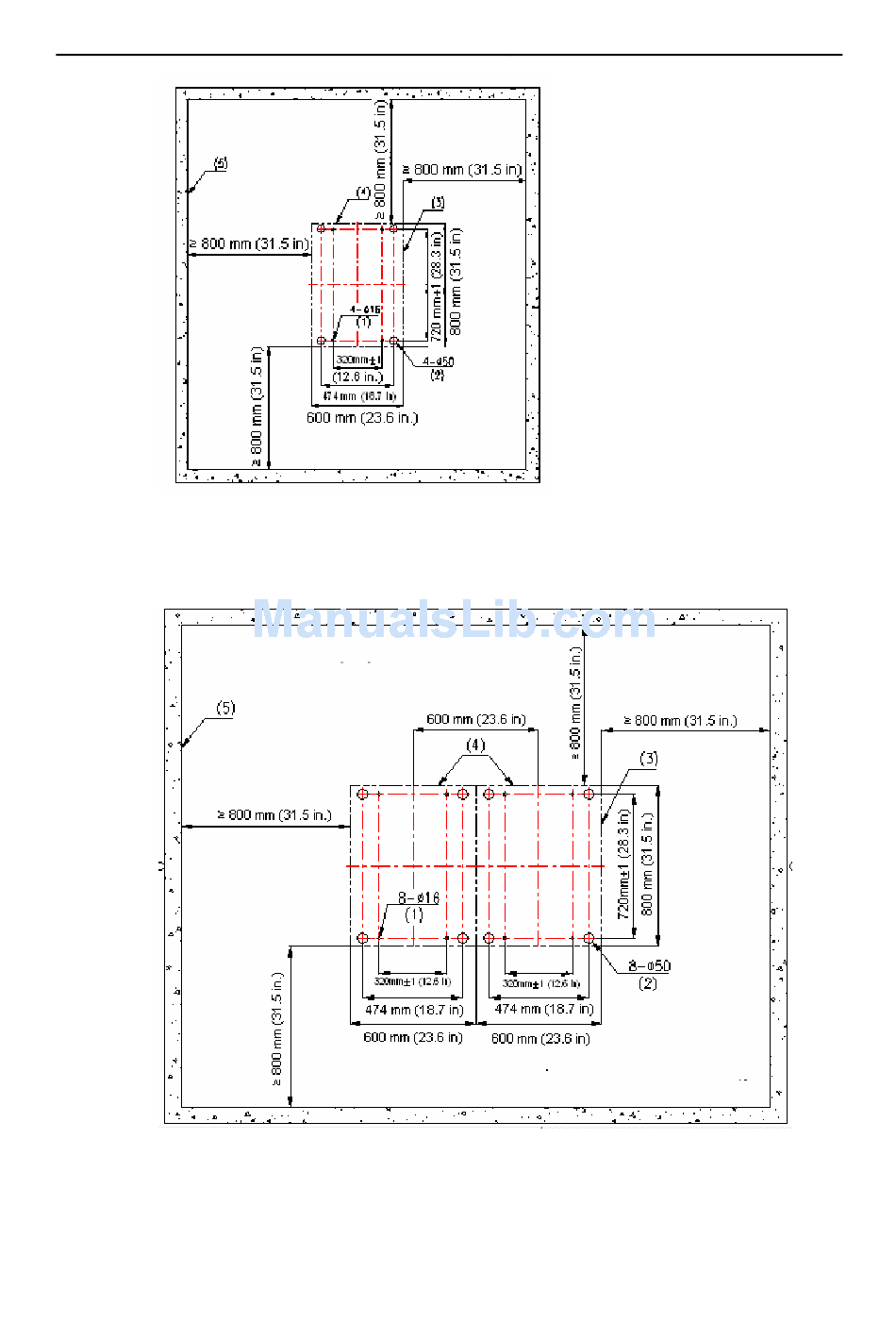

Figure 8-7 Layout of the mounting holes and cabinet feet (single cabinet)
1) M12 expansion bolt
4) Cabinet rear
Figure 8-8 Layout of the mounting holes and cabinet feet (two cabinets)
2) Foot mark
5) Inner wall or reference
2) Foot mark
5) Inner wall or reference
3Com Corporation
8-6
Installing B68 Cabinets
3) Outer dimensions of the cabinet
3) Outer dimensions of the cabinet
Chapter 8
