8.3.5 Installing Racks

I. Installing expansion tubes and nuts
Prior to installation, clean dust inside and outside the holes with a dust collector and then
measure the spacing of holes. If errors are not acceptable, you must measure and drill again.
Follow these steps to install an expansion bolt:
1) Take down the expansion tube and expansion nut, and insert the alignment rib
on the expansion nut into the alignment groove of expansion tube.
2) Put them into a hole vertically.
3) Punch the expansion tube with rubber hammer until the expansion tube is
completely buried into the floor.

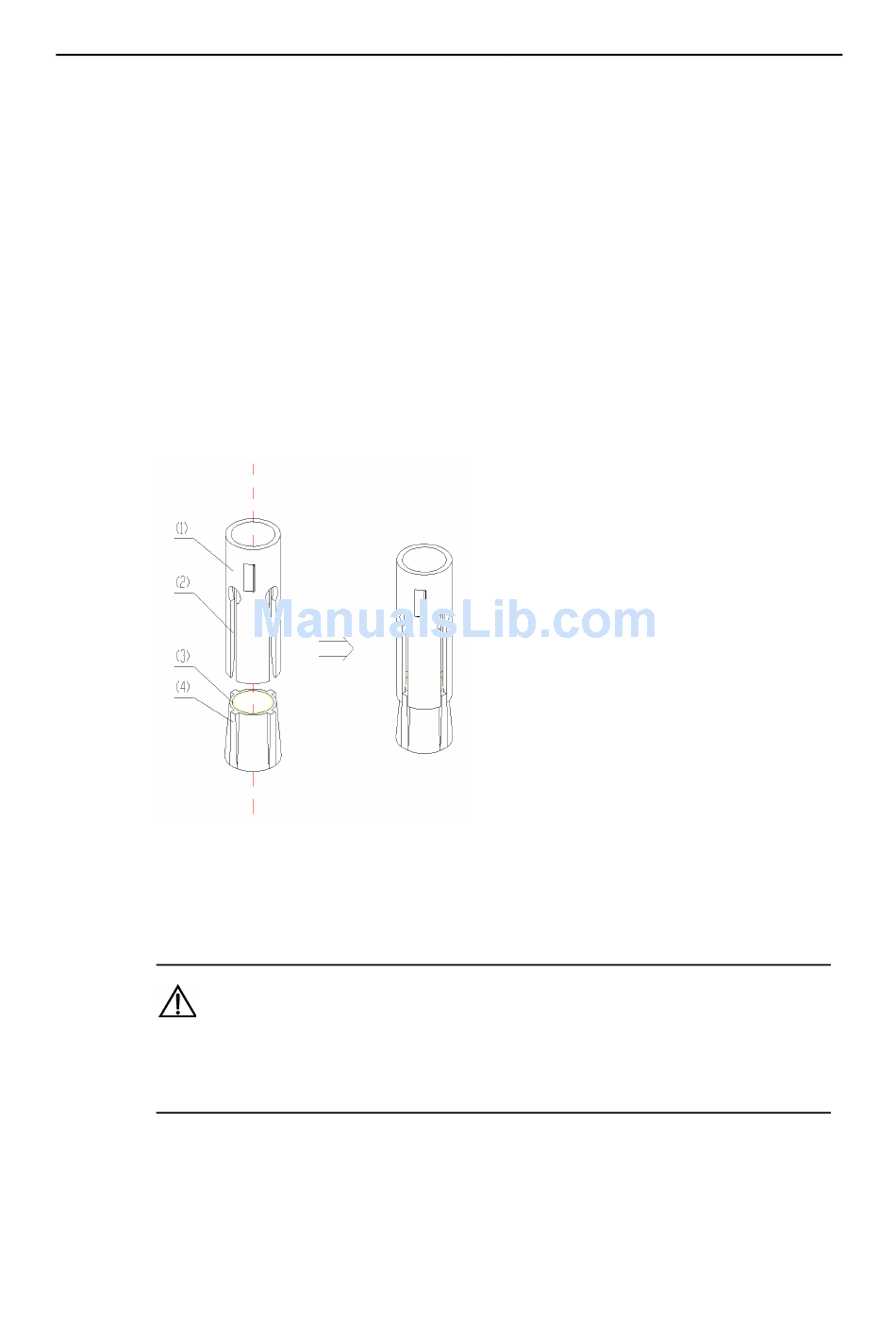

Figure 8-25 illustrates how to install an expansion nut to an expansion tube.
1) Expansion tube
3) Expansion nut
Figure 8-25 Install an expansion nut onto an expansion tube
Caution:
You must insert the alignment rib of expansion nuts into the alignment grooves of
expansion tubes, or you will be unable to install or fasten the expansion bolts.
II. Adjusting rack height
According to the floor height and the height silkscreen of the antistatic floor on the rack, adjust
all racks to the estimated height and torque the retaining bolts to 45 Nm with a torque spanner,
from middle to the two sides, as shown in Figure 8-26.
2) Alignment groove
4) Alignment rib
