Installing Antistatic Floor Supports - 3Com 6040 Installation Manual

3Com Router 6000 Family
Installation Manual
1) T-shape nut
5) Washer

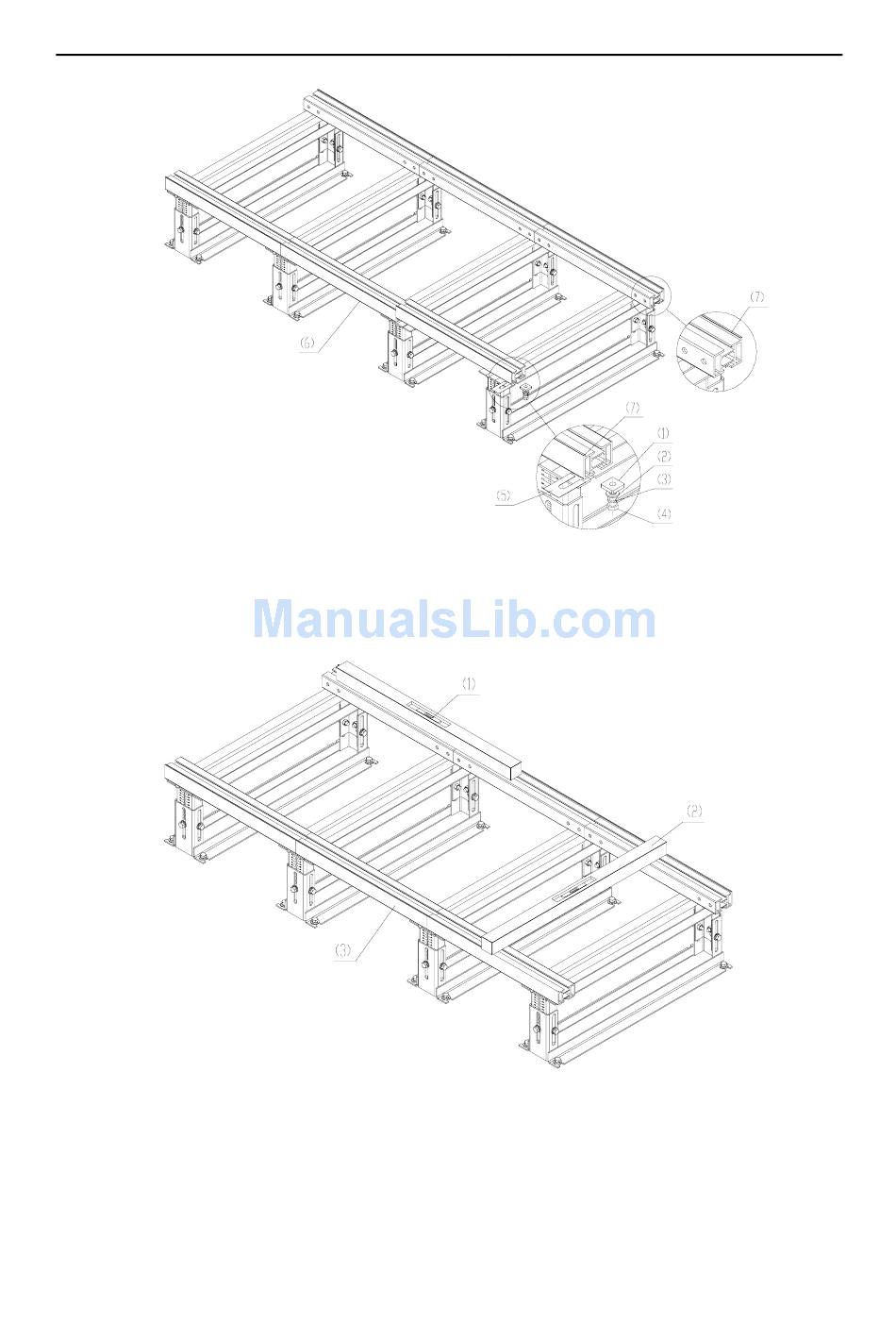

Figure 8-28 Fix and level slide rails and racks
1) Measure in traverse direction
3) Slide rail
Figure 8-29 Measure levelness of slide rails

8.3.7 Installing Antistatic Floor Supports

Antistatic floor supports are used for supporting the antistatic floor around the cabinet.
2) 12 spring washer
6) Slide rail
3Com Corporation
8-25
Installing B68 Cabinets
3) 12 flat washer
7) Slide protective side
2) Measure in longitudinal direction
Chapter 8
4) M12×20 bolt
