The Back Panel

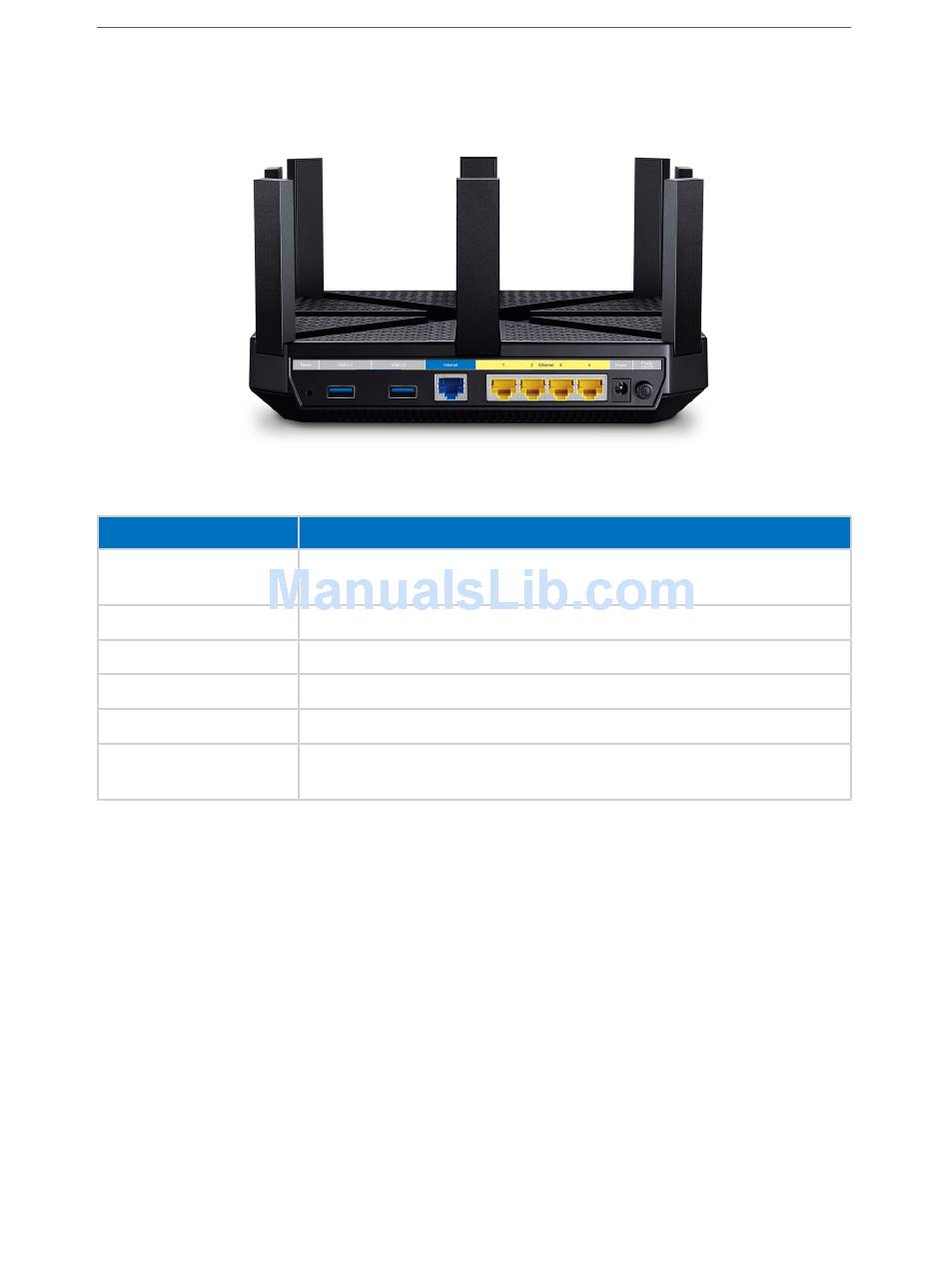

The following parts (view from left to right) are located on the rear panel.
Item
Reset Button
Internet Port
Ethernet Ports (1/2/3/4)
USB 3.0 Port
Power On/Off Button
Power Port
1. 4.
Position Your router
• Place your router in a well-ventilated place far from any heater or heating vent
• Avoid direct irradiation of any strong light (such as sunlight)
• Keep at least 2 inches (5 cm) of clear space around your router
Generally, your router is placed on a horizontal surface. It also can be mounted on the
wall as shown below.
When you need to reset the router, press and hold the Reset button for
about 10 seconds until all LEDs go on, then release the button.
This port is where you'll connect to the DSL/Cable modem, or Ethernet.
Connect your Etherent devices, like PCs, to these ports.
Connect your USB storage device or USB printer to this port.
Press this button to power on or off the router.
This port is where you will connect the power socket via the provided
power adapter.
Description
7
