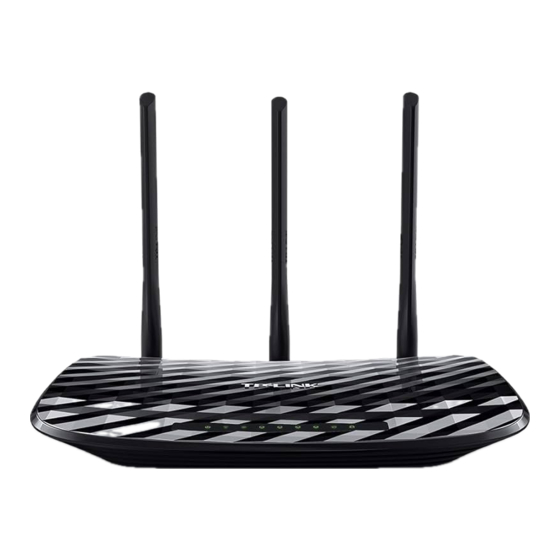

TP-Link AC750 User Manual

Wireless dual-band router
Hide thumbs Also See for AC750:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
AC750 Wireless Dual-Band
Router
CR2
User Manual

Advertisement

Table of Contents
loading

Related Manuals for TP-Link AC750

Summary of Contents for TP-Link AC750

  • Page 1 AC750 Wireless Dual-Band Router User Manual...
  • Page 2 CR2 AC750 Wireless Dual-Band Router Version 1.0 | 4/25/2014...

  • Page 3: Table Of Contents

    CR2 AC750 Wireless Dual-Band Router Table of Content Chapter 1 Introduction ....................... 3 1.1 Features ........................... 3 1.2 System Requirement ...................... 3 1.3 Package Contents ......................4 Chapter 2 Hardware Installation ....................5 2.1 Led indicators ........................5 2.2 Back Rear Panel ......................5 2.3 Typical install ........................
  • Page 4 CR2 AC750 Wireless Dual-Band Router 4.5.1 Port Forwarding ....................32 4.5.2 DMZ ........................32 4.6 Security .......................... 33 4.6.1 Port Filtering ....................... 33 4.6.2 IP Filtering ......................34 4.6.3 URL Filtering ...................... 34 4.6.4 MAC Filtering ..................... 35 4.7 QoS ..........................36 4.8 System ..........................

  • Page 5: Chapter 1 Introduction

    CR2 AC750 Wireless Dual-Band Router Chapter 1 Introduction Congratulations on your purchase of this outstanding AC750 Wireless Dual-Band Router. The Wireless Router using 2.4G and 5G dual-band concurrent technology, support latest 802.11ac standards, backward compatibility IEEE802.11a/b/g/n, 2.4GHz and 5GHz wireless transmission rate up to 750Mbps when concurrent operation, Integrated router, Wi-Fi access point, 4 ports 100M switch and firewall functions in one.

  • Page 6: Package Contents

    CR2 AC750 Wireless Dual-Band Router Microsoft IE (or Firefox or Netscape) 1.3 Package Contents Please unpack the box and check the following items: One AC750 Wireless Dual-Band Router One Power Adapter One User Manual...

  • Page 7: Chapter 2 Hardware Installation

    CR2 AC750 Wireless Dual-Band Router Chapter 2 Hardware Installation 2.1 Led indicators The top panel contains LED indicators that show the status of the unit. Name Status Indication Power is off. Power is on. Power Flashing the LED flashes about two minutes during WPS working.

  • Page 8: Typical Install

    CR2 AC750 Wireless Dual-Band Router LAN (1,2,3,4): These four LAN ports are where you will connect networked devices, such as PCs, print servers, remote hard drives, and anything else you want to put on your network. If you connect this product with the Hub (or Switchboard) correctly, the router’s corresponding LED and the Hub’s (or the Switchboard’s) must be illuminates.
  • Page 9 CR2 AC750 Wireless Dual-Band Router 4. Connect the included power adapter to the router. And connect the other end of the adapter to an electrical outlet.

  • Page 10: Chapter 3 Quick Installation Guide

    CR2 AC750 Wireless Dual-Band Router Chapter 3 Quick Installation Guide The chapter mainly presents how to enter the router’s Web page and simple router settings. After you have finished the hardware installation (Please refer to chapter 2), the following steps will assist you to set the network configurations for you computer.
  • Page 11 CR2 AC750 Wireless Dual-Band Router 4. Select "Obtain an IP address automatically" or select "Use the following IP address(S)". A. Select "Obtain an IP address automatically" and "Obtain DNS server address automatically". Click "OK". B. "Use the following IP address (S)"...

  • Page 12: Getting Started

    CR2 AC750 Wireless Dual-Band Router automatically". Click "OK" to save the configurations. 3.2 Getting Started To access the configuration pages, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.1.1). The Default User/Password: admin...

  • Page 13: Setup Wizard

    CR2 AC750 Wireless Dual-Band Router 3.3 Setup Wizard Click on "Wizard" pages, it will guide you to setup your router step by step in simple way. In this section, there are seven steps to do it. Please follow the steps and complete the router configuration.
  • Page 14 CR2 AC750 Wireless Dual-Band Router Step 2 Time Zone Setting The Time Configuration option allows you to configure, update, and maintain the correct time on the internal system clock. Daylight Saving can also be configured to automatically adjust the time when needed.
  • Page 15 CR2 AC750 Wireless Dual-Band Router IP Address: Enter the IP address of your router. (factory default: 192.168.1.1) Subnet Mask: An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. Step 4 WAN Interface Setup The router support five access modes in the WAN side, please choose correct mode according to your ISP Service.
  • Page 16 CR2 AC750 Wireless Dual-Band Router IP Address: Enter the IP address assigned by your ISP. Subnet Mask: Enter the Subnet Mask assigned by your ISP. Default Gateway: Enter the Gateway assigned by your ISP. DNS: The DNS server information will be supplied by your ISP (Internet Service Provider).
  • Page 17 CR2 AC750 Wireless Dual-Band Router IP Address: Enter the IP address. Subnet Mask: Enter the subnet Mask. Server IP Address: Enter the PPTP Server IP address provided by your ISP. User Name: Enter your PPTP username. Password: Enter your PPTP password.
  • Page 18 CR2 AC750 Wireless Dual-Band Router Band: This filed determines the wireless mode which the router works on. 5GHz (A) - Select if all of your wireless clients are 802.11a. 5GHz (N) - Select if all of your wireless clients are 802.11n.
  • Page 19 CR2 AC750 Wireless Dual-Band Router Key Length: Specify the Length of the key, 64-bit or 128-bit. Key Format: Specify the format of the key, ASCII or Hex. Key Setting: Enter the key here, its format is limited by the key format, ASCII or Hex.

  • Page 20: Chapter 4 Configuring The Router

    CR2 AC750 Wireless Dual-Band Router Chapter 4 Configuring the Router 4.1 WAN Interface There are two submenus under the WAN Interface menu: WAN Interface, DDNS. Click any of them, and you will be able to configure the corresponding function. 4.1.1 WAN Interface This page is used to configure the parameters for Internet network which connects to the WAN port of your Access Point.

  • Page 21: Lan Interface

    CR2 AC750 Wireless Dual-Band Router Service Provider: Select one from the drop-down menu, such as DynDNS, OrayDDNS or TZO. Domain Name: Enter the domain name (Such as host.dyndns.org). User Name/Email: Enter the user name or email the same as the registration name.

  • Page 22: Static Dhcp

    CR2 AC750 Wireless Dual-Band Router IP Address: Enter the IP address of your router (factory default: 192.168.1.1). Subnet Mask: An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. Default Gateway: Enter the gateway IP address of your router.

  • Page 23: Dhcp Client

    CR2 AC750 Wireless Dual-Band Router IP Address: Enter the IP address which needs to be bound. MAC Address: Enter the MAC address of the computer you want to assign the above IP address. Comment: You can add some comment for this item.

  • Page 24: Wireless 5G

    CR2 AC750 Wireless Dual-Band Router 4.3 Wireless 5G There are eight submenus under the Wireless 5G menu: Basic, Advanced, Security, Access Control, WDS, Site Survey, WPS, Schedule. Click any of them, and you will be able to configure the corresponding function.

  • Page 25: Advanced

    CR2 AC750 Wireless Dual-Band Router 4.3.2 Advanced These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point.

  • Page 26: Access Control

    CR2 AC750 Wireless Dual-Band Router 4.3.4 Access Control The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the router, which depend on the station’s MAC addresses. Wireless Access Control Mode: If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point.

  • Page 27: Site Survey

    CR2 AC750 Wireless Dual-Band Router Enable WDS: Check this box to enable WDS function. MAC Address: Enter the remote AP MAC address. Data Rate: Sets the maximum wireless data rate that your network will operate on. Comment: You can add some comment for this item.

  • Page 28: Schedule

    CR2 AC750 Wireless Dual-Band Router Disable WPS: Check this box and clicking "Apply" will disable WPS function. WPS is turned on by default. Self-PIN Number: It is AP’s PIN. Start PBC: Clicking this button will invoke the Push Button Configuration of WPS. If one station wants to connect to the AP, it must click its PBC button in two minute.

  • Page 29: Basic

    CR2 AC750 Wireless Dual-Band Router 4.4.1 Basic This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. Disable Wireless LAN Interface: Check this box to to disable the router’s wireless features;...

  • Page 30: Security

    CR2 AC750 Wireless Dual-Band Router Fragment Threshold: This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance since excessive packets. RTS Threshold: RTS stands for "Request to Send". This parameter controls what size data packet the frequency protocol issues to RTS packet.

  • Page 31: Access Control

    CR2 AC750 Wireless Dual-Band Router 4.4.4 Access Control The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the router, which depend on the station’s MAC addresses. Wireless Access Control Mode: If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point.

  • Page 32: Site Survey

    CR2 AC750 Wireless Dual-Band Router Enable WDS: Check this box to enable WDS function. MAC Address: Enter the remote AP MAC address. Data Rate: Sets the maximum wireless data rate that your network will operate on. Comment: You can add some comment for this item.

  • Page 33: Schedule

    CR2 AC750 Wireless Dual-Band Router Disable WPS: Check this box and clicking "Apply" will disable WPS function. WPS is turned on by default. WPS Status: When router’s settings are factory default, it is set to open security and un-configured state, some registers such as Vista WCN can configure AP. Otherwise If it already shows "Configured", it means that the router has setup its security.

  • Page 34: Port Forwarding

    CR2 AC750 Wireless Dual-Band Router any of them, and you will be able to configure the corresponding function. 4.5.1 Port Forwarding If you configure the router as Virtual Server, remote users accessing services such as Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP address.

  • Page 35: Security

    CR2 AC750 Wireless Dual-Band Router Enable DMZ: Check this box will enable DMZ function. DMZ Host IP Address: Enter DMZ host IP Address may expose this host to a variety of security risks. 4.6 Security The router provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks.

  • Page 36: Ip Filtering

    CR2 AC750 Wireless Dual-Band Router Port Range:The port range that you want to filter. Protocol: The protocol that you want to filter, either TCP, UDP, or Both. Comment: You can add some comment for this item. Current Filter Table: The table shows all you have configured. You can delete one or all.

  • Page 37: Mac Filtering

    CR2 AC750 Wireless Dual-Band Router Enable URL Filtering: Check this box will enable URL Filtering function. URL Address: The URL Address that you want to filter. Current Filter Table: The table shows all you have configured. You can delete one or all.

  • Page 38: Qos

    CR2 AC750 Wireless Dual-Band Router 4.7 QoS The QoS helps improve your network gaming performance by prioritizing applications. By default the bandwidth control are disabled and application priority is not classified automatically. In order to complete this settings, please follow the steps below.

  • Page 39: Time Zone Setting

    CR2 AC750 Wireless Dual-Band Router 4.8.1 Time Zone Setting You can maintain the system time by synchronizing with a public time server over the Internet. Copy Computer Time: Enter your PC’s current time into the above blanks. Time Zone select: Select your local time zone from this pull down list.

  • Page 40: Password

    CR2 AC750 Wireless Dual-Band Router Save Settings to File: Get the router’s settings and store it in your local computer. Load Settings from File: Restore the settings from the file you backup before from your local computer, the router will go to the former settings.

  • Page 41: Chapter 5 Status

    CR2 AC750 Wireless Dual-Band Router Chapter 5 Status There are three submenus under the Status menu: Status, Statistics, Log. Click anyone, you will see the following status. 5.1 Status The System Status provides you with a snapshot of your router’s current connections and settings.

  • Page 42: Statistics

    CR2 AC750 Wireless Dual-Band Router 5.2 Statistics This page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks. The Wireless 1/2 LAN connection statistics shows all data activity for both the 5.0GHz and 2.4GHz wireless networks separately.
  • Page 43 CR2 AC750 Wireless Dual-Band Router Enable Log: Click this box to enable Log.

  • Page 44: Chapter 6 Logout

    CR2 AC750 Wireless Dual-Band Router Chapter 6 Logout Choose "Logout", and you will be back to the login screen.

  • Page 45: Chapter 7 Fcc Id Warning

    CR2 AC750 Wireless Dual-Band Router Chapter 7 FCC ID Warning： To operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
