Chapter 1
Status
Solid blue
Pulsing blue
Off
1 2 2

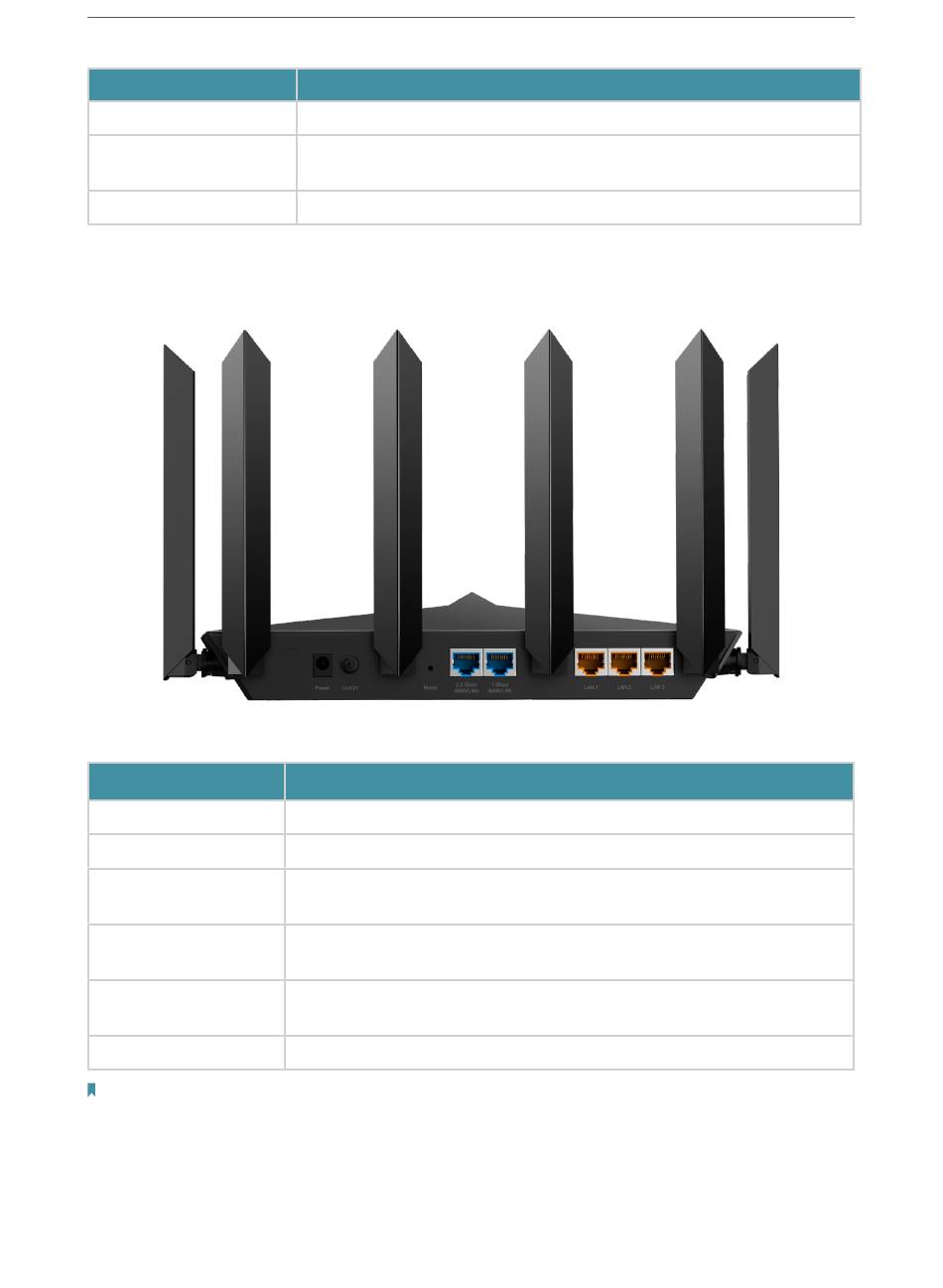

Back Panel and Side Panel

Button and Port Explanation
Item
Power Port
Power On/Off Button
Reset Button
2.5 Gbps WAN/LAN
Port*
1 Gbps WAN/LAN Port*
LAN Port (1-3)
Note:
The 2.5 Gbps WAN/LAN port and 1 Gbps WAN/LAN port cannot be used as the WAN port at the same time. If you choose
to use 2.5 Gbps WAN/LAN port as the WAN port for internet service, the 1 Gbps WAN/LAN port will be used as LAN port
by default. It's recommended to use 2.5 Gbps WAN/LAN port as the WAN port.
The following parts are located on the side and front panel.
The router is working normally.
The firmware is being upgraded, WPS connection is being established, or
the router is being reset. Do not disconnect or power off your router.
Power is off or the LED is turned off.
For connecting the router to a power socket via the provided power adapter.
Press this button to power on or off the router.
Press and hold the button until the LED blinks to reset the router to its factory
default settings.
For connecting to your modem, the Ethernet outlet or other internet devices.
Used as the WAN or LAN port.
For connecting to your modem, the Ethernet outlet or other internet devices.
Used as the WAN or LAN port.
For connecting your PC or other wired devices to the router.
Get to Know About Your Router
Indication
Description
5
