Technical Manual Glass Room Temp. Contr. SCN-RT1Gx.01

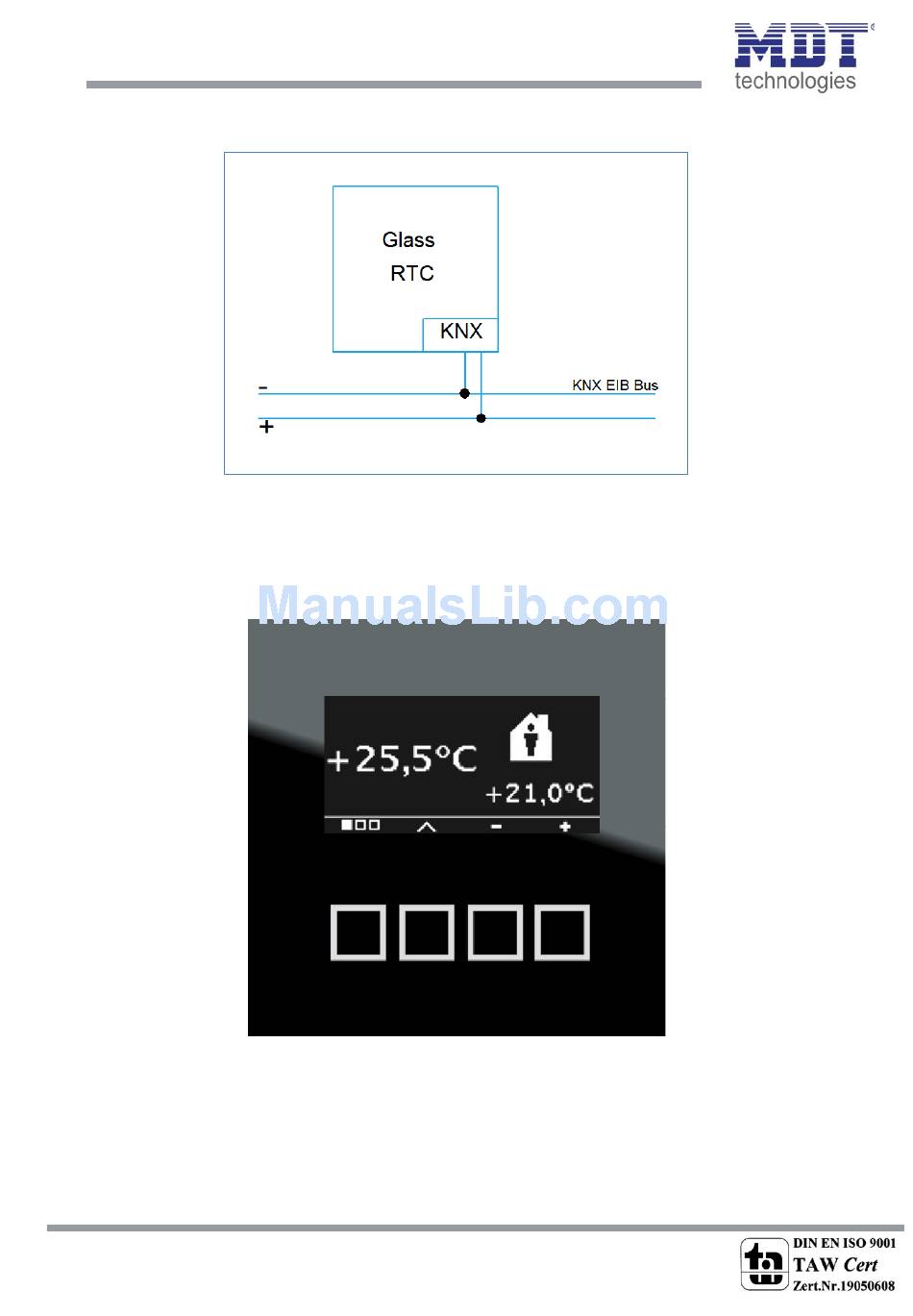

2.3 Exemplary circuit diagram

2.4 Design & Usage
The following figure provides an overview of the structure and controls:
1 = Programming button (lateral notch in the housing below the glass)
2 = Button for switching between the functional blocks
3 = Button for specific functions of the function block shown
4 & 5 = Buttons for switching in each functional block
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
6
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Figure 1: Exemplary circuit diagram
2 3
1
Figure 2: Design & Usage
4 5
