Technical Manual Glass Room Temp. Contr. SCN-RT1Gx.01

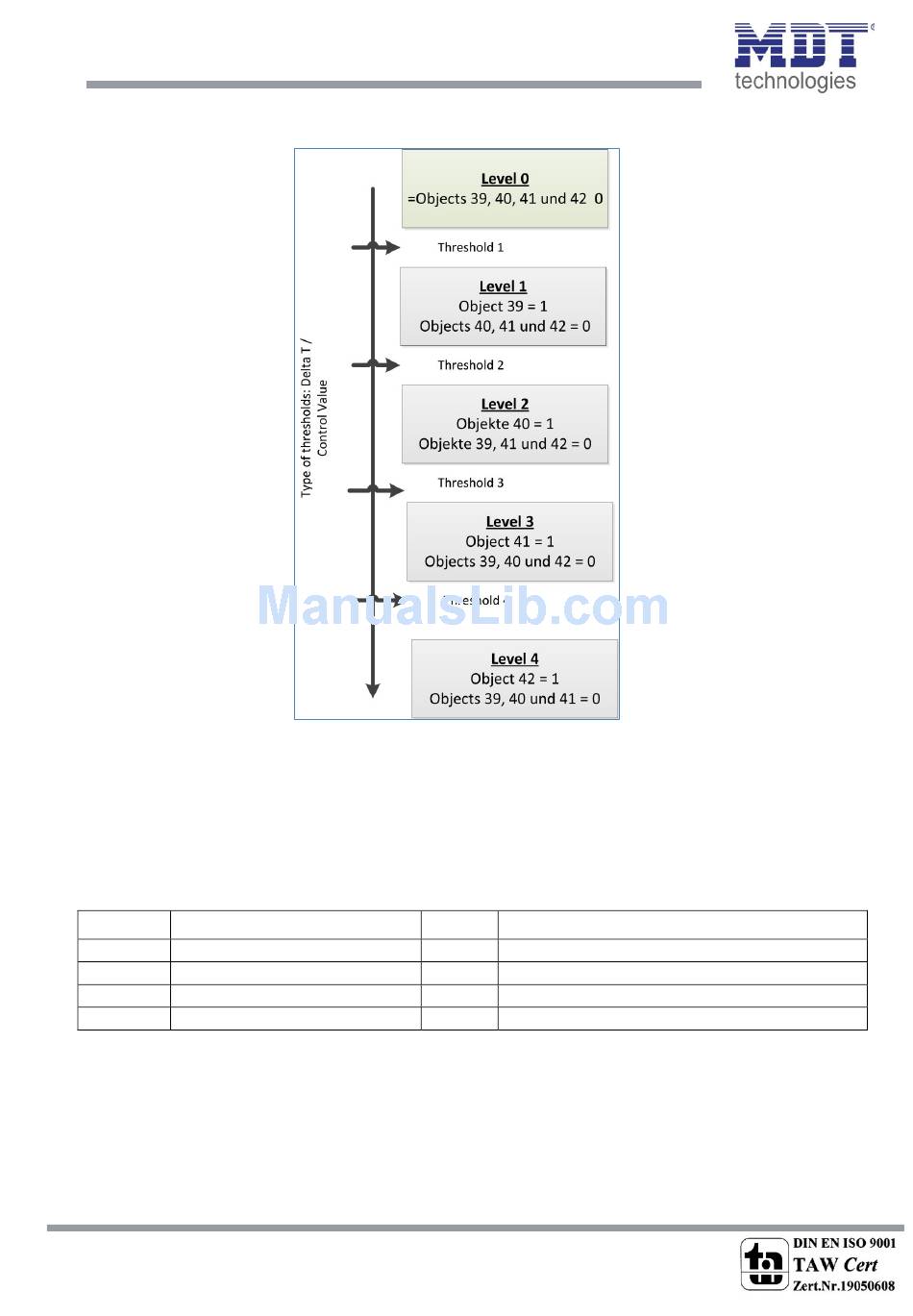

The following figure shows the switching behavior of the outputs as a function of the threshold
values:
Hysteresis
The hysteresis is used to avoid frequent switching. So would be switched with a hysteresis of 5% and
a threshold of 60%ppm at 60% on and at 55% off.
Send output cyclic
With this parameter, the cyclic sending of the outputs can be activated. In this case, all output states
according to the adjusted time are sent cyclically.
The following table shows the relevant communication objects:
Number
Name
39
Output level 1
40
Output level 2
41
Output level 3
42
Output level 4
Table 55: Communication objects output level controller
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
71
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Figure 32: Step-Switch
Length
1 Bit
1 Bit
1 Bit
1 Bit
Usage
Switching of the first output level
Switching of the second output level
Switching of the third output level
Switching of the fourth output level
