Technical Manual
Room Temperature Controller

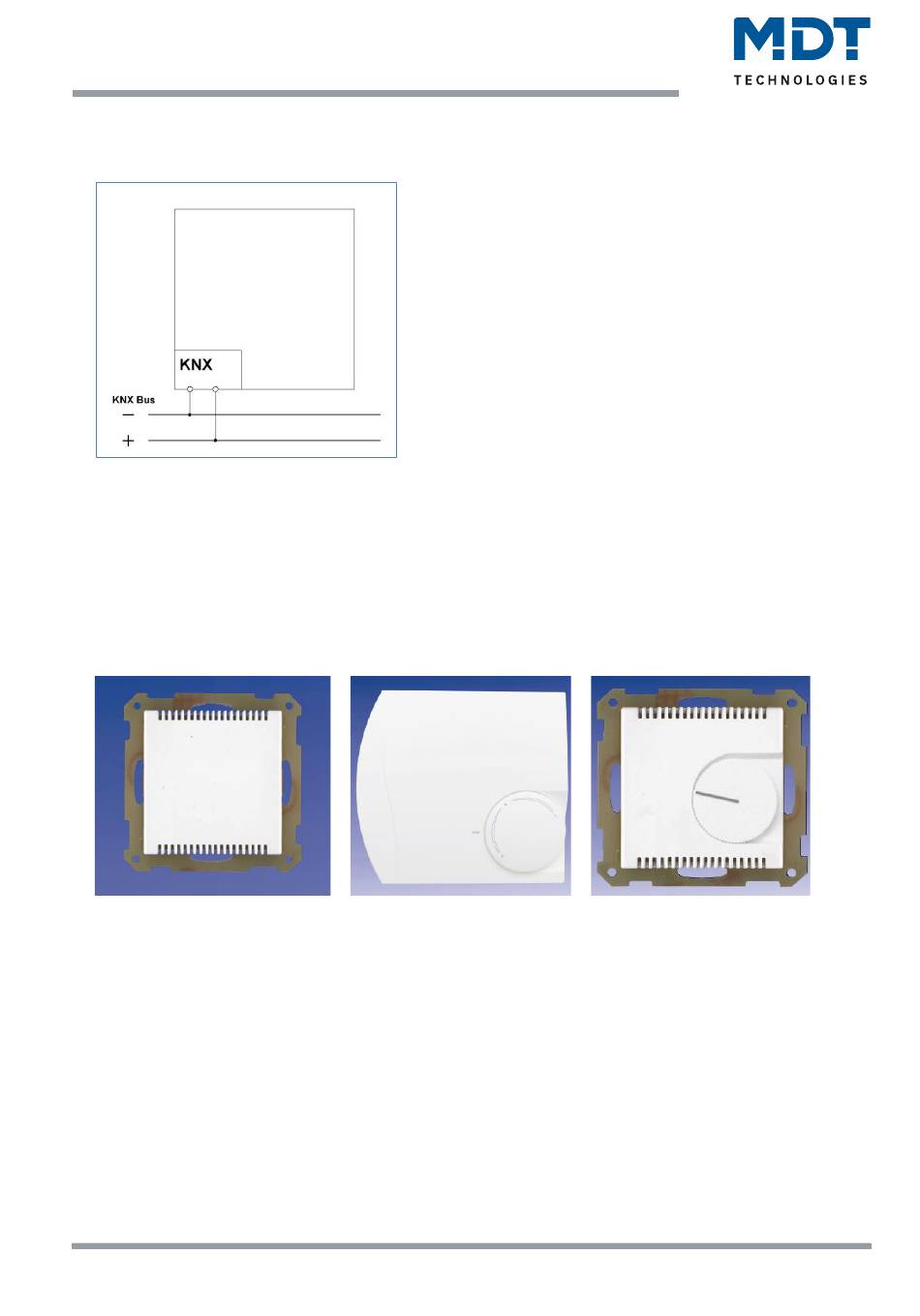

2.3 Exemplary circuit diagram

Figure 1: Exemplary circuit diagram
2.4 Structure & Handling
The temperature controller is available in three different versions, as a flush-mounted device, for
surface mounting and for mounting in control cabinets or on DIN rails. The devices each have a bus
connection terminal and a programming button, as well as a programming LED.
Figure 2: SCN-RT1UP.01
The room temperature sensor, SCN-TS1UP.01, is for flush-mounting. It contains also of a bus-
connection, a programming button and a programming LED.
Housing shape corresponds to that of the SCN-RT1UP.01.
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
5
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
[SCN-RT1xPx.01]
Figure 3: SCN-RT1APE.01 Figure 4: SCN-RT1UPD.01
