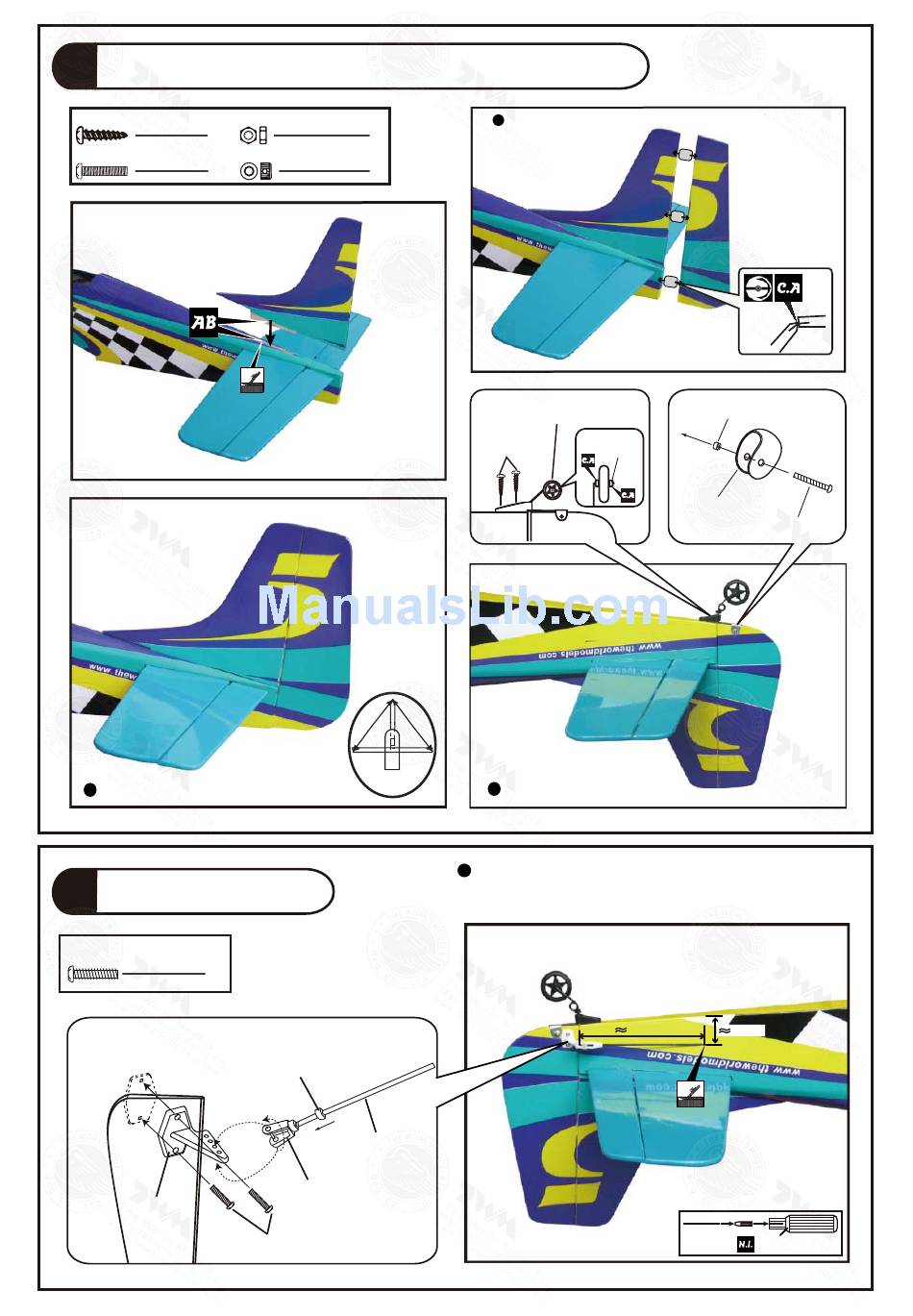

Rudder Pushrod - THE WORLD MODELS VOODOO MUSTANG EP Instruction Manual

6
Vertical Fin, Rudder & Tail Landing Gear
PA2x8mm Screw
2
PM2x8mm Screw
1
Completed
7

Rudder Pushrod

PB2x8mm Screw
2
Horn
E230RXMPO26791108
M2 Nut
1
d1xD5x2mm Plastic Collar
2
C
C=C'
Fuel Tube
d2xD4x4mm
Pushrod
Ø1.4x413mm
Clevis
PB2x8mm
Apply instant type CA glue to both sides of each hinge.
Wheel Ø23mm
PA2x8mm
C'
Bottom View
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control
surfaces.
P.5
M2 Nut
Plastic
Collar
Steering Bracket
PM2x8mm
90mm
20mm
TWM PL8210010
CLEVIS WRENCH
