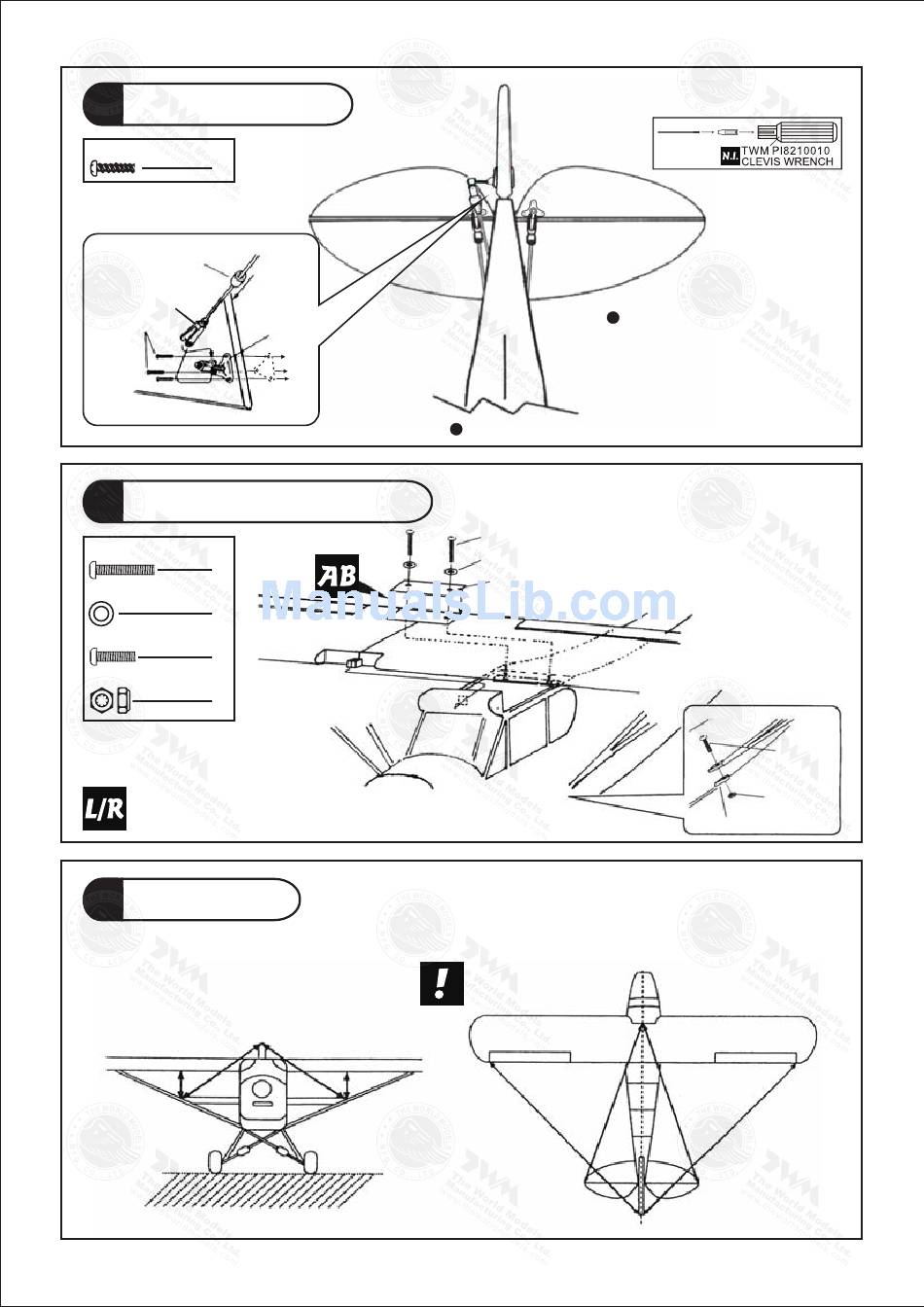

Rudder Pushrod - THE WORLD MODELS PIPER J-3 CUB 26s Instruction Manual

18

Rudder Pushrod

PB2x10mm Screw
3
Fuel Tube
Ø6x5mm
Clevis
PB2x10mm
19
Main Wing/ Wing Struts
HM3x30mm Screw
2
d3xD12mm Washer
2
HM3x10mm Screw
2
M3 Nylon Insert Lock Nut
2
20
Wing Setting
C
D
A002SPO24781009
Tri-Horn
M3x14mm
In order to obtain the wing and fuselage configuration as in the
diagrams, insert reinforcement plates between the wing and fuselage
if necessary.
D' C'
C = C'
D = D'
Ø1mm pilot holes for The
World Models tri-horn are
pre-drilled. Please look
for pin-hole marks at
side of control surfaces.
Bottom View
HM3x30mm
d3xD12mm Washer
Plastic Plate1x24x84mm
Securely attach the
main wing
B
A
P.9
HM3x10mm
M3 Nylon
Insert Lock Nut
B'
A'
A = A'
B = B'
