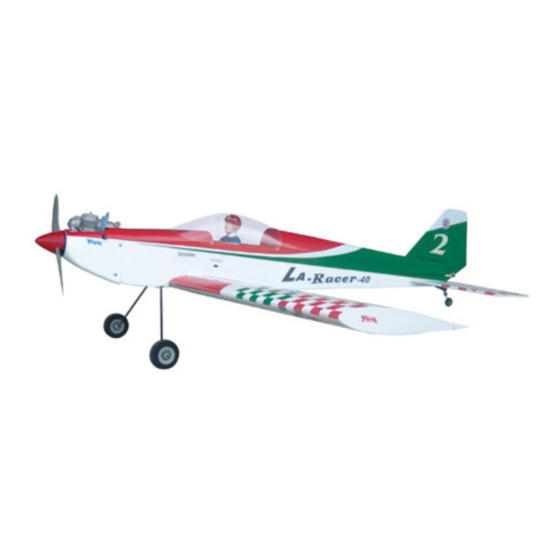

THE WORLD MODELS LA Racer-40 Instruction Manual

0.40-0.46 cu. in. displacement 2-stroke
Hide thumbs
Table of Contents

Advertisement

Quick Links

0.40-0.46 cu. in. displacement 2-stroke
Require : 4 - channel
s
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
A 235PO24811009
Specifications
*Specifications are subject to change without notice.*
radio / standard
w 5
54 in / 1370 mm
556 sq in / 35.9 sq dm
5 lb / 2200 g
48 in / 1220 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
-40
servos
FACTORY PRE-FABRICATED
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA Racer-40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE WORLD MODELS LA Racer-40

Summary of Contents for THE WORLD MODELS LA Racer-40

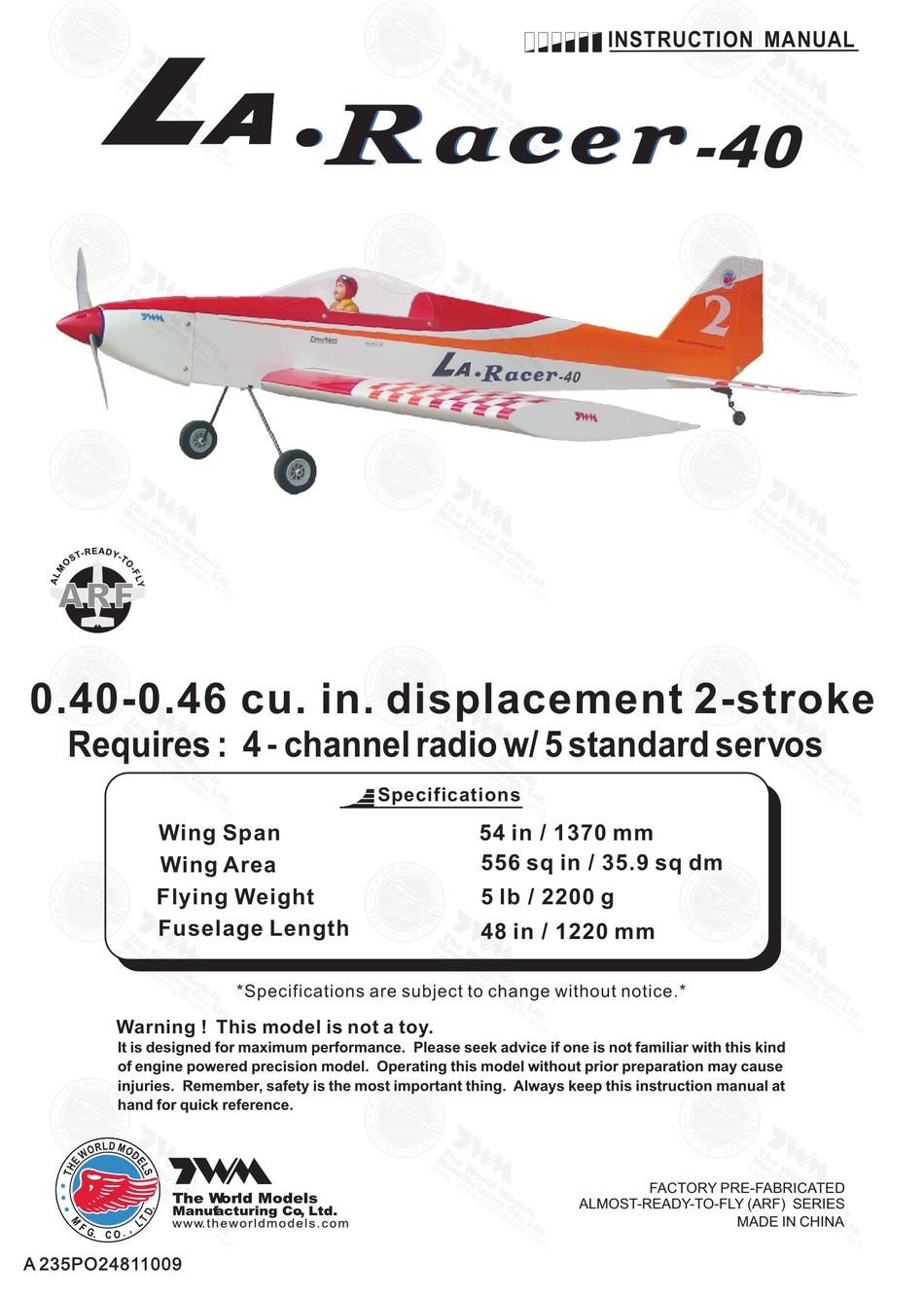

  • Page 1 INSTRUCTION MANUAL 0.40-0.46 cu. in. displacement 2-stroke Require : 4 - channel radio / standard servos Specifications Wing Span 54 in / 1370 mm 556 sq in / 35.9 sq dm Wing Area Flying Weight 5 lb / 2200 g Fuselage Length 48 in / 1220 mm *Specifications are subject to change without notice.*...

  • Page 2: Before You Begin

    I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts.

  • Page 3: Parts List

    Parts List 1. MAIN WING -- 1 pair 13. SOCKET HEAD SCREW M3x25mm -- 4 pcs M3 NUT -- 8 pcs 2. WING JOINER 6x26x147mm -- 1 pc. WASHER d3xD7mm -- 8 pcs THROTTLE PUSHWIRE Ø1.2x360mm -- 1 pc. 3. CLEVIS -- 2 pcs PLASTIC TUBE d2xD3x230mm -- 1 pc.
  • Page 4 Main Wing Pre- glued Please dry fit wing joiner into left and right wing to make sure they fit with the Main Wing proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve, and apply the glue to wing joiner before putting them together.
  • Page 5 Stabilizer / Elevator Use thread locker when tightening screw. Don't use excessive force as you are dealing with balsa. Screw PM3 x 25mm Washer d3 x D7mm Pre-glued (Stabilizer) (Main Wing) B B' PM3 x 25mm washer completed Bottom View Vertical Fin &...

  • Page 6: Main Landing Gear

    Main Landing Gear 4.1mm Collar Plate PA3 x 10mm PA3 x 10mm Screw M3x 3mm Set Screw Bottom View 4.1mm Collar Tail Landing Gear PA3 X 8mm Screw Aluminum 1 5mm Reinforcement Plate PM2 x 8mm Screw M2 Nut M2 Nut PM2 x 8mm 2.1mm Collar 2.1mm Collar...

  • Page 7: Fuel Tank

    Engine Mount M3 x 20mm M3 x 20mm Socket Head Screw d3xD7mm d3 x D7mm Washer Engine Mount PL5111030 Apply thread locker to screws. Blind nuts are off-centered to keep the spinner at the fuselage axis. Fuel Tank CABLE TIE Fuel Tank 260cc 1.5x5x400mm...

  • Page 8: Elevator Pushrod

    Elevator Pushrod PB2 x 12mm Screw TWM PL8210010 CLEVIS WRENCH PB2x12mm Clevis Tri-horn M3x14mm Fuel Tube Ø6x5mm Pushrod 2m m Ø1.8x700mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks PB2 x 10mm Screw at under side of control surfaces. TWM PL8210010 CLEVIS WRENCH 2m m...

  • Page 9: Radio Equipment

    M3 x 25mm Socket Head Screw d3 x D7mm Washer M3 Nut M3 x 25mm Throttle Pushwire 100mm w/ plastic tube 3.9 in d3 x D7mm Washer 3 2mm M3 Nut d3 x D7mm Washer Radio Equipment Install and arrange the servo as shown in the diagram. Throttle Servo Rudder Servo Switch...
  • Page 10 M4 x 30mm Socket Head Screw d4 x D12mm Washer M4 x 30mm d4 x D12mm d4 x D12mm Washer Plywood Washer 2x22x78mm Plywood 2x22x78mm Bottom View Canopy & Pilot PWA2.3 X 8mm PWA2.3 X 8mm Screw Pilot 1m m d1.5 x D6.5mm Silicon Grommet Silicon Grommet d1.5 x D6.5mm...
  • Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. P.10 A 235PO24811009...

  • Page 12: Control Throws

    Control Throws Adjust the control throws as shown in the diagram. These throws are good for general Elevator flying. You can adjust according to your 15mm personal preference. 15mm Rudder 20mm 20mm Ailerons C.G. Warning! Important Safety Precautions # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary.
  • Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 14 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 15 180mm Extension Package Code No. Package Code No. Size Size Code No. Package Size Package Code No. Size Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small Package (EP)clevis. Code No. Size KP0041300 Code No SV4031 Code No.
  • Page 16 The World Models Manufacturing Co., Ltd. www .thew orldm odels .com A 235PO24811009...
