Engine Mount; Fuel Tank - THE WORLD MODELS PIPER J-3 CUB 26s Instruction Manual

7

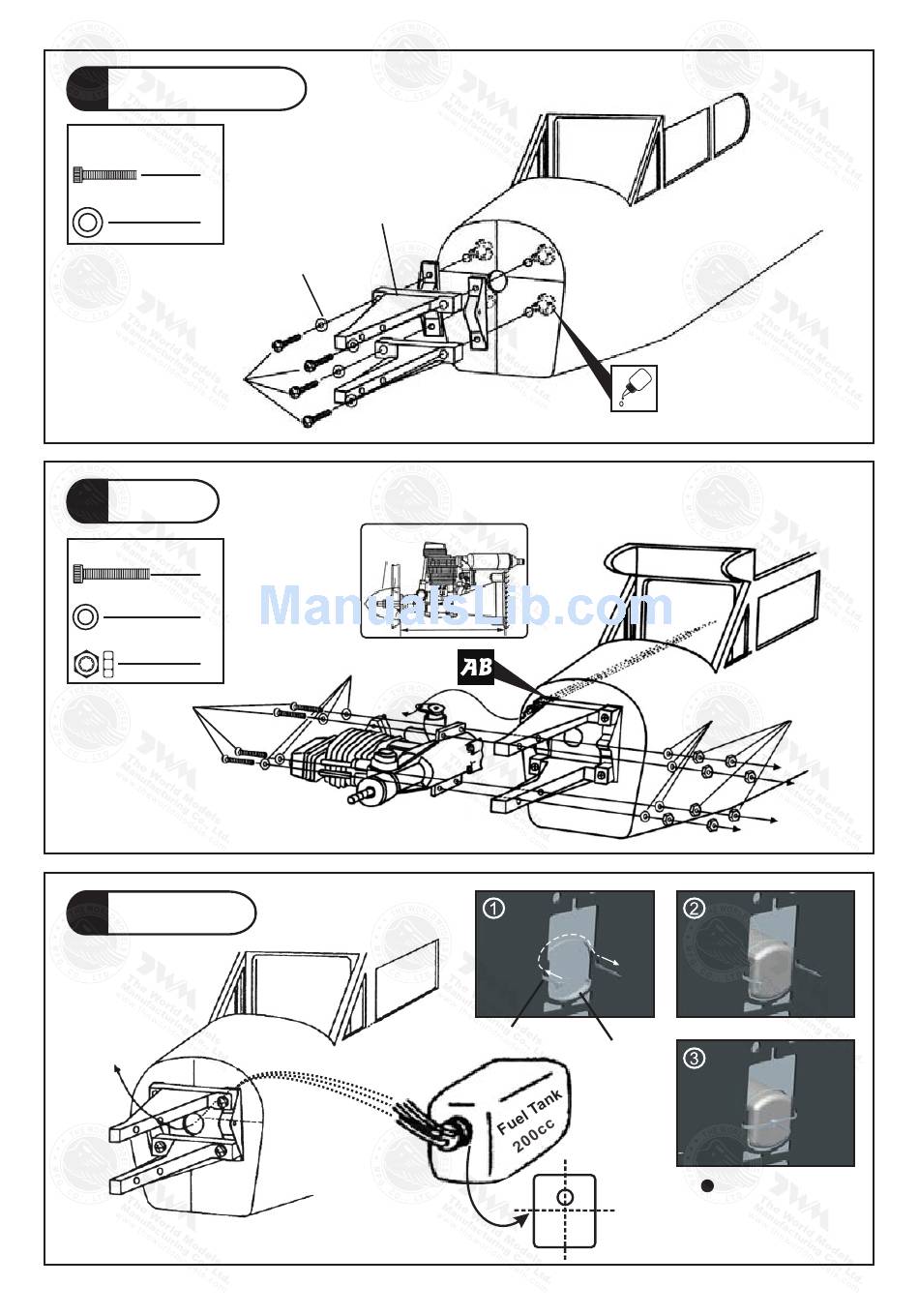

Engine Mount

M3x20mm
Socket Head Screw
4
d3xD7mm Washer
4
M3x20mm
Socket Head Screw
8
Engine
Socket Head Screw
M3x25mm
4
d3xD7mm Washer
8
M3 Nut
8
M3x25mm
9

Fuel Tank

A002SPO24781009
Engine Mount PL5111020
d3xD7mm Washer
Lead the 1.2mm throttle rod through the
plastic tube and attach the throttle rod
to the throttle lever on the engine.
Installed Engine Position
Ø45mm
d3xD7mm
Washer
Fire
Wall
90mm
3.54 in
Cable Tie
1.5x4x400mm
Double-sided Tape
40x80mm
UP
P.5
d3xD7mm
Washer
M3 Nut
Fuel Tank
Completed
Bottom View
