Hr Handlebar Replacement - Matrix r1x Service Manual

CHAPTER 7: PART REPlACEMENT GUIDE

7.12 HR HANDlEBAR REPlACEMENT

1) Remove the seat pad as outlined in Section 7.7.

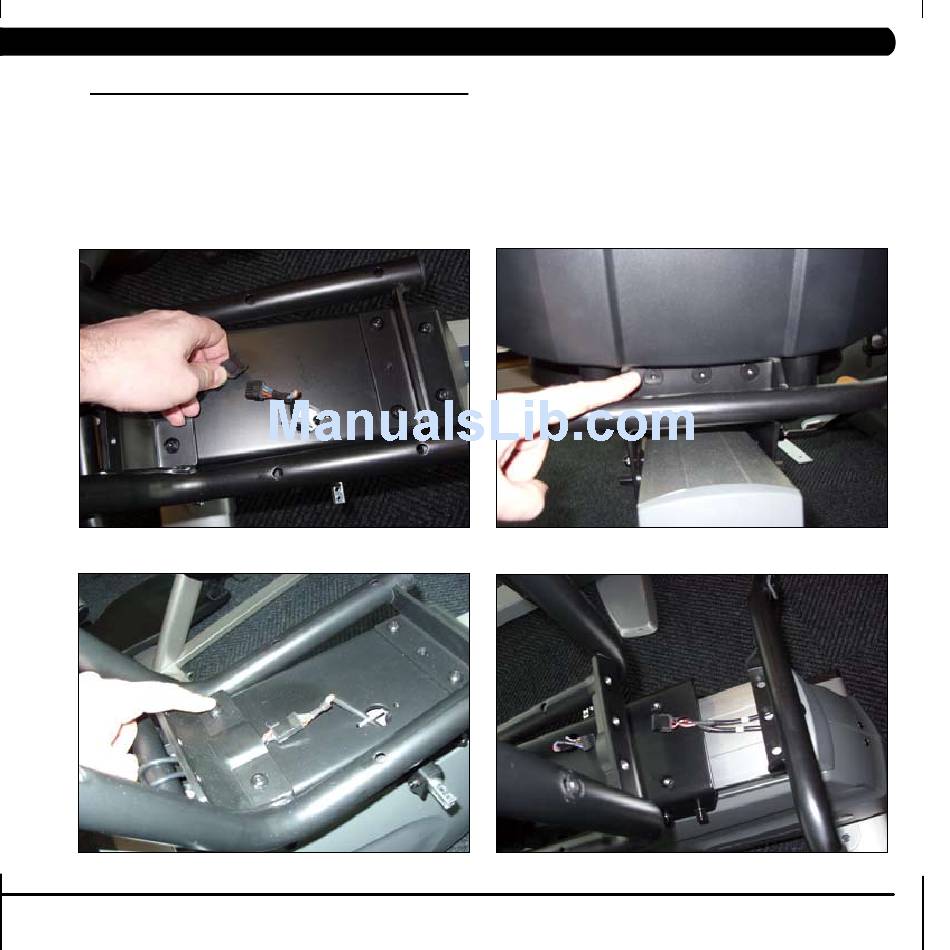

2) Unplug the HR handlebar wire (figure A).
3) Remove the 3 screws holding the HR handlebar to the upper seat frame (figure B).
4) Remove the 4 screws holding the upper seat frame to the lower seat frame (figure C).
5) Remove the HR handlebar (figure D).
6) Reverse steps 1-5 to install a new HR handlebar. NoTE: The HR handlebar wire must be hooked up prior to installing the screws from the upper seat
frame to the lower seat frame.
7) Test the bike for function as outlined in Section 7.24.
fIGURE B
fIGURE A
fIGURE C fIGURE D
39
