7.11 loWER SEAT fRAME REPlACEMENT

1) Remove the upper seat frame as outlined in Section 7.10.

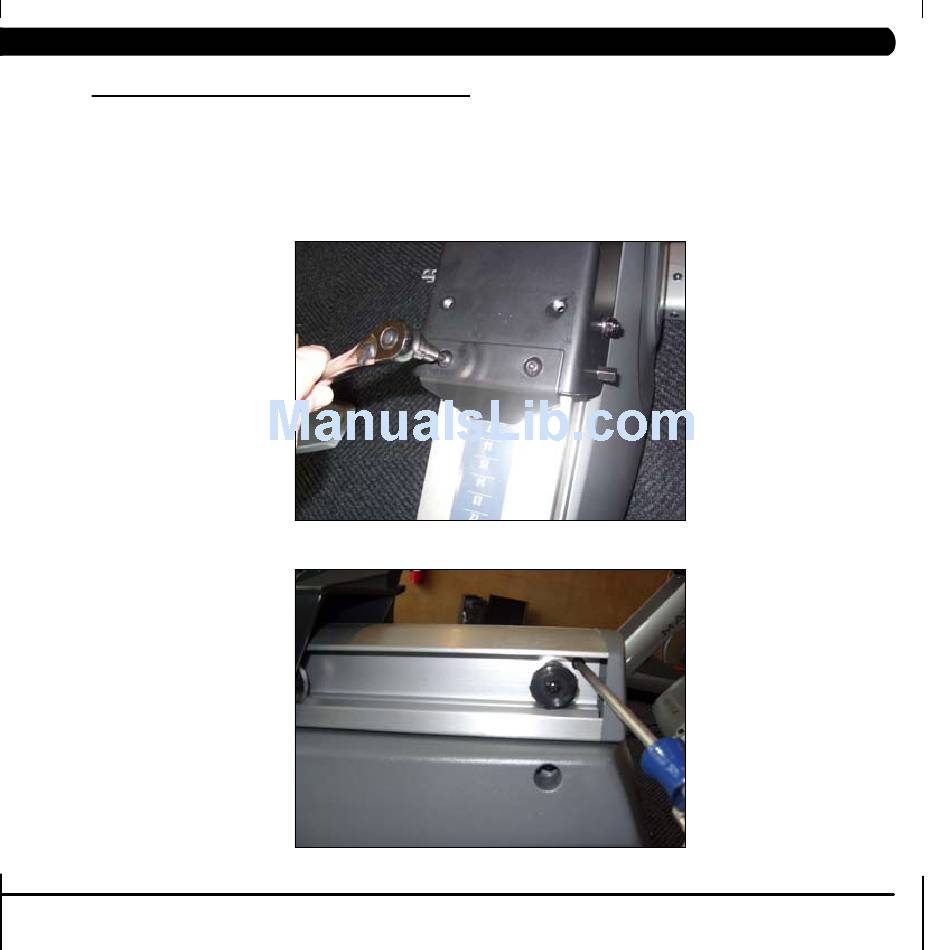

2) Remove the 2 screws holding the seat positioning plate to the lower seat frame, remove the positioning plate (figure A).
3) Remove the 2 screws holding the end cap onto the back of the seat rail and remove the cap (figures B & C).
4) Remove the screw holding the back roller stop onto the seat rail, and remove the back roller stop (figures D & E).
5) Press the seat adjustment handle and roll the lower seat frame off of the back of the seat rail (figure f).
6) Reverse steps 1-5 to install a new lower seat frame. NoTE: The HR handlebar wire must be hooked up prior to installing the screws from the upper seat
frame to the lower seat frame.
7) If the seat is loose or wobbly after installation, see the seat tightening procedure outlined in Section 6.7.
CHAPTER 7: PART REPlACEMENT GUIDE
fIGURE A
fIGURE B
