4
3

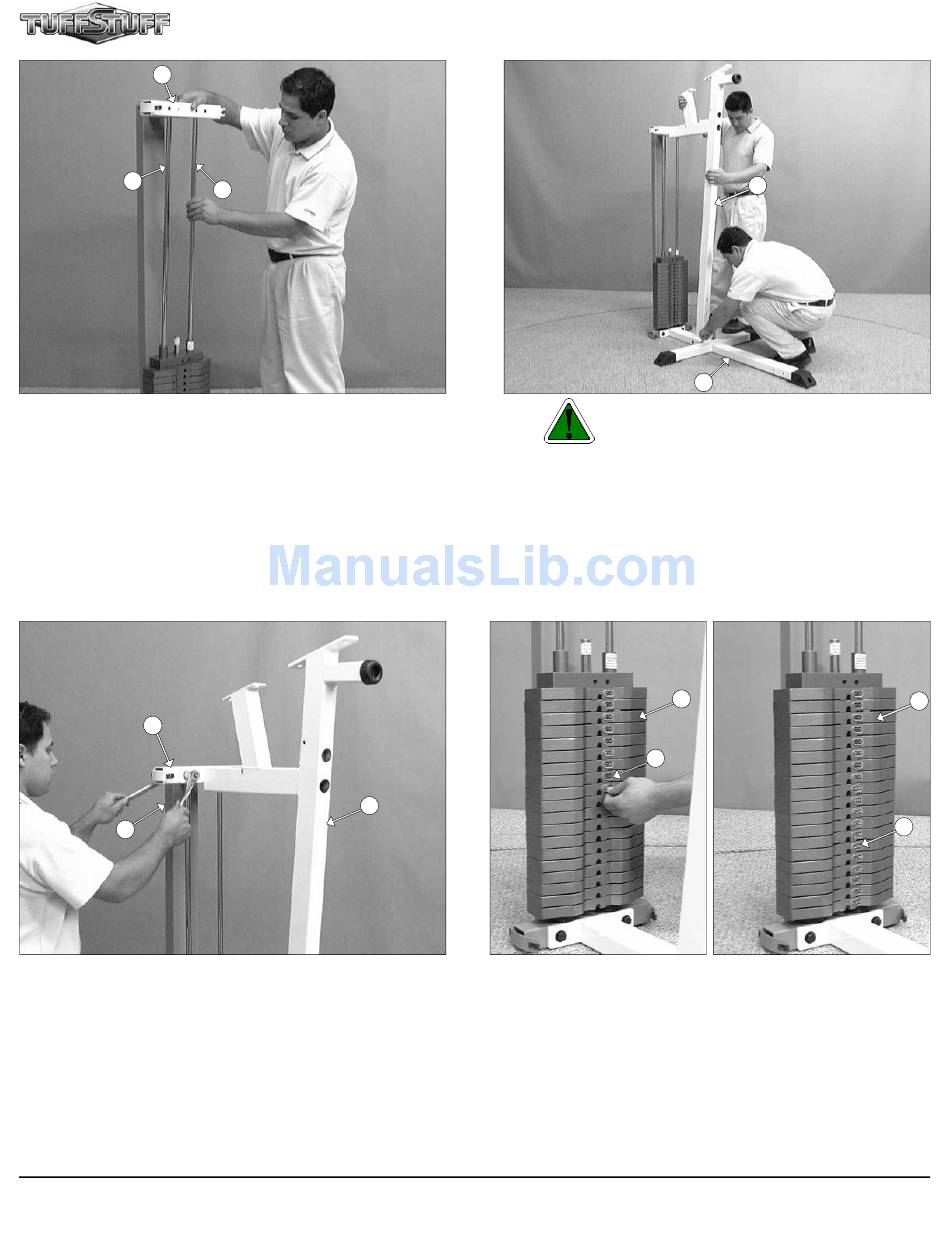

FIG. 5
Maneuver the two
bottom side of the
Guide Rod Retainer
4
1
FIG. 7
Attach the
Front Upright (#27)
(#4)
and the
Weight Stack Frame (#1)
Screws 1/2-13 X 3 1/2 (#20), four Flat Washers SAE 1/2" (#25), and
two Nylon Insert Lock Nuts 1/2-13 (#18).
3
3
Guide Rods (#3)
into the holes on the
(#4).
27
to the
Guide Rod Retainer
using two Hex Head Cap
FIG. 6
Caution: it is strongly recommended to use another
person in assisting with this assembly.
Attach the
Front Upright (#27)
tion as shown above, using two Hex Head Cap Screws 3/8-16 X 4 1/4
(#68), four Flat Washers SAE 3/8" (#15), and two Nylon Insert Lock
Nuts 3/8-16 (#70).
91
FIG. 8
Adhere the Decal Weight Numbers (#91) to the Weight Plates
(#5) in the corresponding order. Begin with the 20 at the top, 30 next,
and so on.
27
26
to the
Base Frame
(#26), in the posi-
5
SP-404 Lat/Mid-Row
5
91
