TuffStuff SP-404 Assembly Instructions Manual page 8

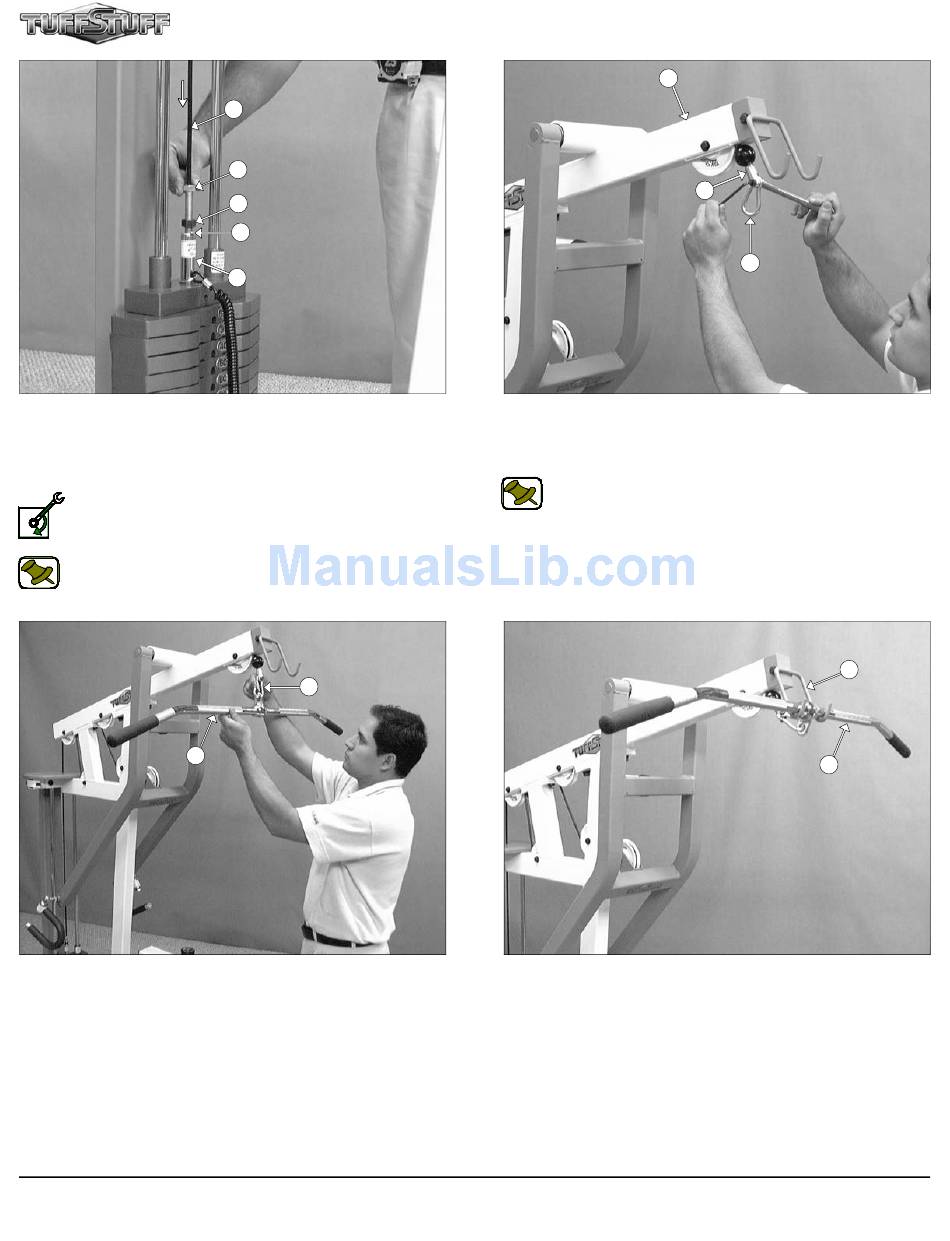

FIG. 21 Connect the Cable (#42)
(#6) by threading the Finished Hex Nut 1/2-13 (#80) and inserting a
Split Lock Washer Z/P 1/2" (#78) to the Cable Hex Top Bolt 1/2-13 X
3 (#79). Then, thread the Cable Hex Top Bolt 1/2-13 X 3 (#79) to the
threaded socket of the Top Plate Selector Bar
Loosely Fasten: Do not completely fasten this hardware as-
sembly at this time, as it will be completely fastened later in
the assembly process.
Note: Refer to Fig A on fold-out page 15 for further detailed il-
lustration of this assembly.
43
FIG. 23 Connect the Lat Bar (#43) to the
Snap Link (#85).
7
42
79
80
78
6
to the Top Plate Selector Bar
(#6).
85
Cable (#42) using the
28
FIG. 22 Attach the Snap Link (#85) to the Clevis Bracket (#81) us-
ing one Shoulder Bolt 3/8 X 3/4 (#83), and one Nylon Insert Lock Nut
5/16-18 (#84). Use the supplied Hex Key 3/16" (#89) and a 1/2" com-
bination wrench to fasten this assembly properly.
Note: Refer to Fig. B on fold-out page 15 for further illustration
of this assembly.
FIG. 24 Rest the Lat Bar (#43) onto the
in use.
81
85
36
43
Lat Bar Holder (#36)
SP-404 Lat/Mid-Row
when not
