high performances microphone system

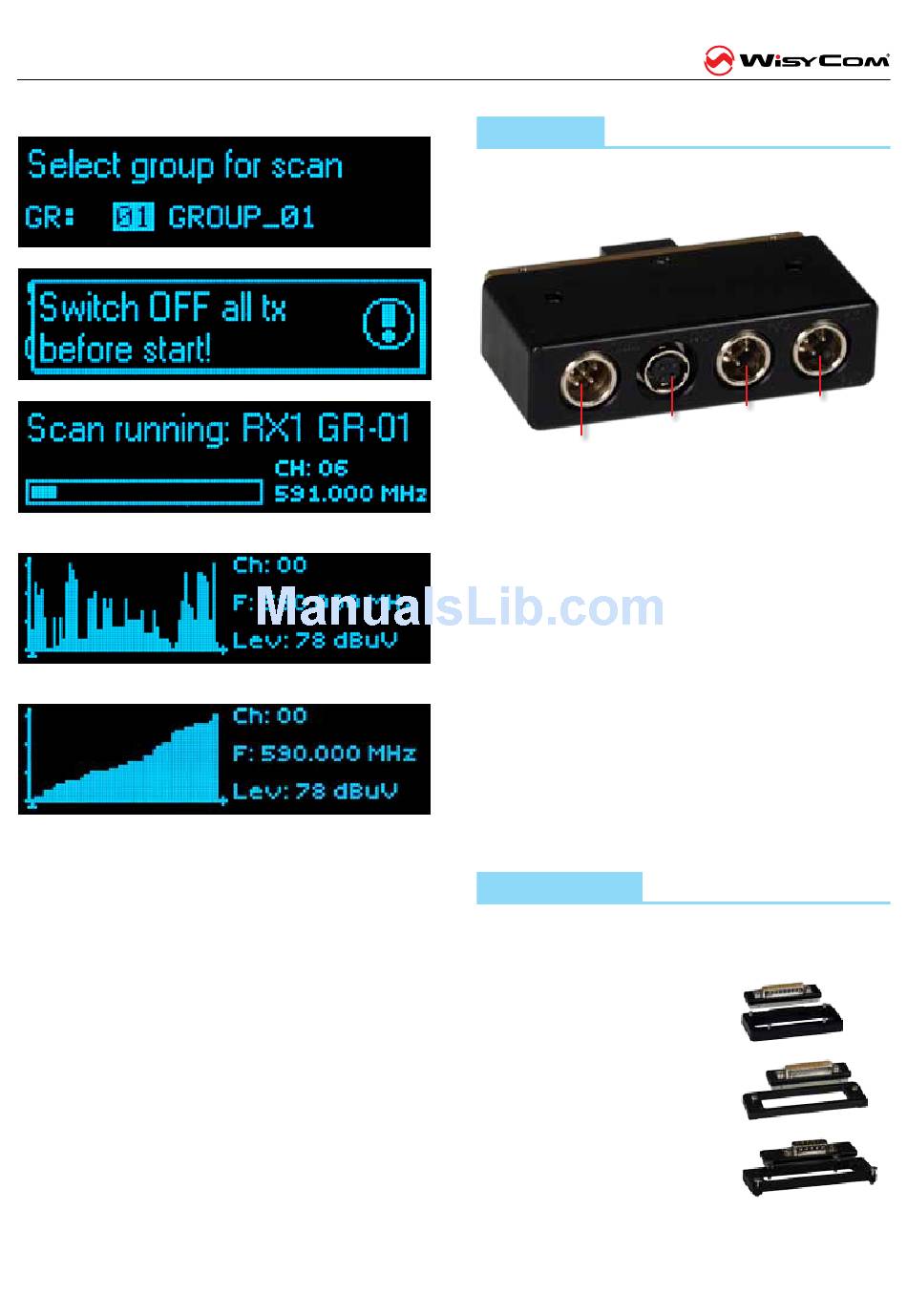

Once started a scan operation the receiver asks for
group to be used.
Then it prompts to turn off all transmitters.
Then finally start the scan!
After few seconds, scan results are displayed on a
chart.
Results can be also displayed sorted by level, mak-
ing easier to pick up the best one.
As per Wisycom standard, group 0 and group 9
are special; respectively the "center frequency"
(474,482/... MHz) and the intergap frequency (i.e.
470/478/486/... MHz). A scan on group 0 will re-
veal in few seconds the overall DVB-T occupation on
the area, while a scan on group 9 will give possible
working frequency, usable also in presence of strong
DVB-T signal (sort to speak working in the band-
guard of 2 digital television channel).

Rear Panel

Stand alone socket

Com 1 & 2
The standalone socket BPA 42 PTT supplies the fol-
lowing connections:
Analogue Audio output (Line 1 & 2)
• Audio line-output 1 & 2 : electronically balanced on
two 3 pin mini-XLR Female connector
• Audio line-output level : Adjustable in a one dB
step between -20 and +6 dBu (nominal) and MAX
+12 dBu (peak deviation)
• Audio line-output imped. : ≤ 200 ohm.
Push to Talk (PTT) Audio output (Com)
• PTT line-output 1 & 2 : electronically balanced on a
5 pin mini-XLR Male connector
Digital Audio output AES3
• Digital line-output 1 & 2 : electronically balanced
on 3 pin mini-XLR Male connector
• Digital line-output : AES3 @ 48 kHz

Slot in sockets

To transform MCR42 in slot-in compatible for a spe-
cific camera you need to use a kit with a rear-panel
and a flange.
SLK 42-IK for - Panasonic
- IKEGAMI
SLK 42-PH for - Grass Valley
- Thomson
S1LK 42-SX - Sony
Line 1
Line 2
Power
AES3
(Line 1 & 2)
Pag. 9
