Rear Panel - WisyCom MSR916 User Manual

R P
EAR ANEL
⓯

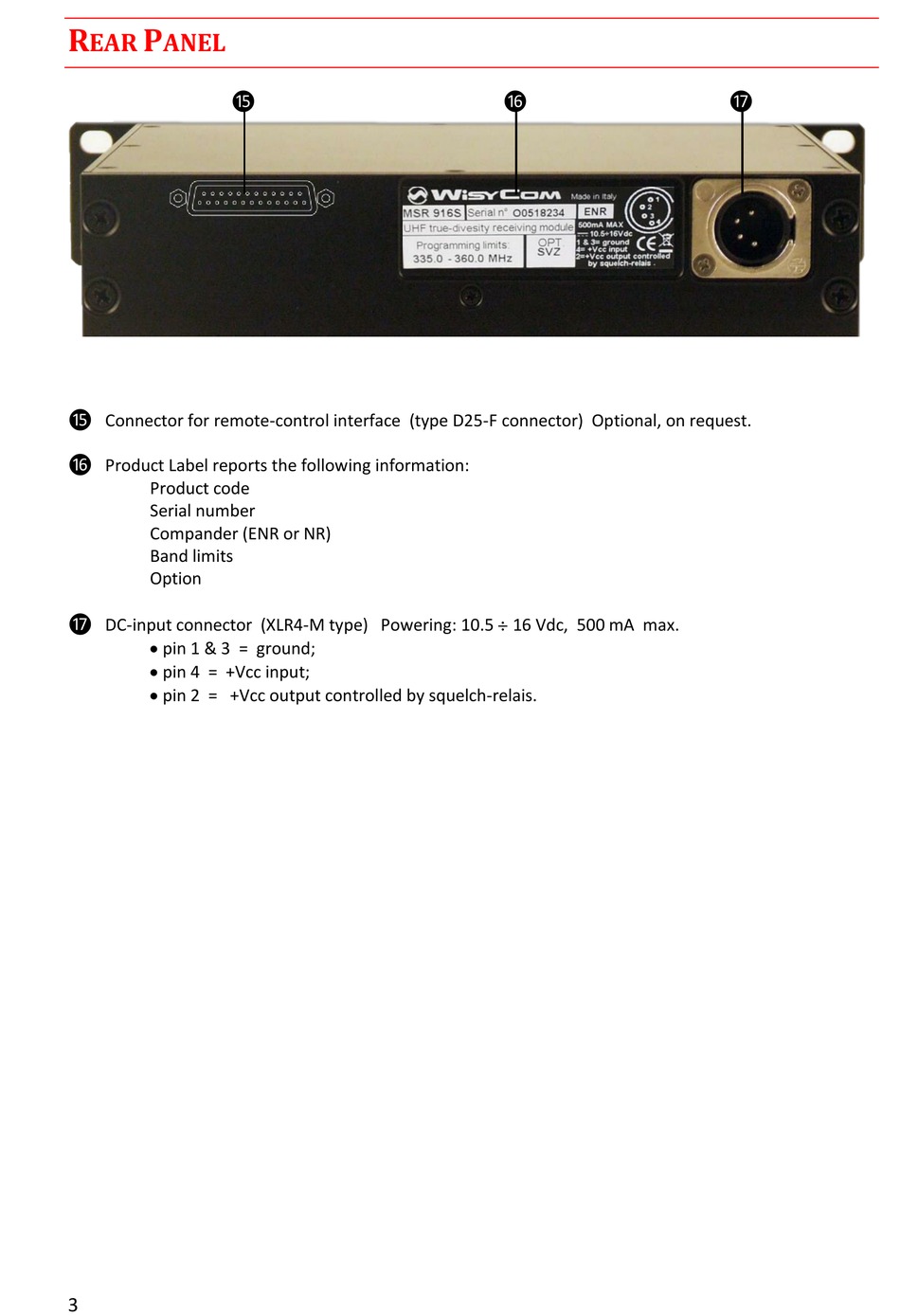

⓯ Connector for remote-control interface (type D25-F connector) Optional, on request.
⓰ Product Label reports the following information:
Product code
Serial number
Compander (ENR or NR)
Band limits
Option
⓱ DC-input connector (XLR4-M type) Powering: 10.5  16 Vdc, 500 mA max.
 pin 1 & 3 = ground;
 pin 4 = +Vcc input;
 pin 2 = +Vcc output controlled by squelch-relais.
