Main Landing Gear - THE WORLD MODELS 1/4 Clipped Wing Cub Instruction Manual

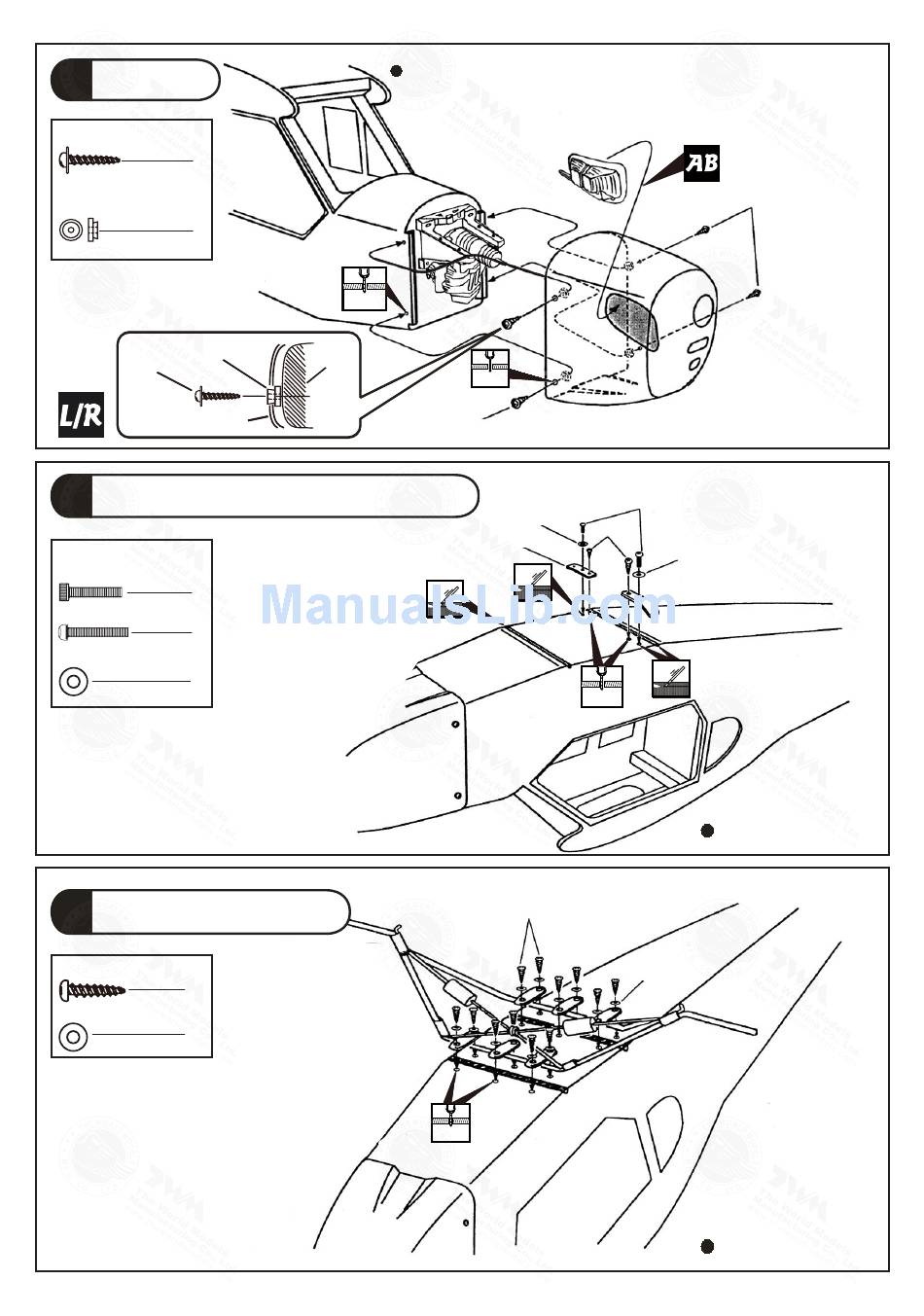

Cowling
7
PWA2.6x12mm Screw
4
d1.5xD6.5mm
Silicon Grommet
4
d1.5xD6.5mm
Silicon Grommet
PWA2.6x12mm
Cowling
8 Wing Struts Mounting Bracket
M3x14mm
Socket Head Screw
2
HM3x13mm Screw
2
d3xD7mm Washer
2
9

Main Landing Gear

PA3x12mm Screw
12
d3xD7mm Washer
12
A057PO29971404
Please refer to the attached sheet for usage of the transparent 3D template.
First insert the grommet to the cowling then apply screw.
1mm
1mm 1mm 1mm
2.5mm
2.5mm
2.5mm 2.5mm
PWA2.6x12mm
d 3 xD7 mm
A l u mi n u m P l a te 2 mm
PA3x12mm
1.5mm
1.5mm
P.6
M3x14mm
Wa sh e r
PA3x12mm
Wa sh e r
d 3 xD7 mm
1.5mm
1.5mm
Washer
d3xD7mm
PWA2.6x12mm
Bo tto m Vie w
Bo tto m Vie w
