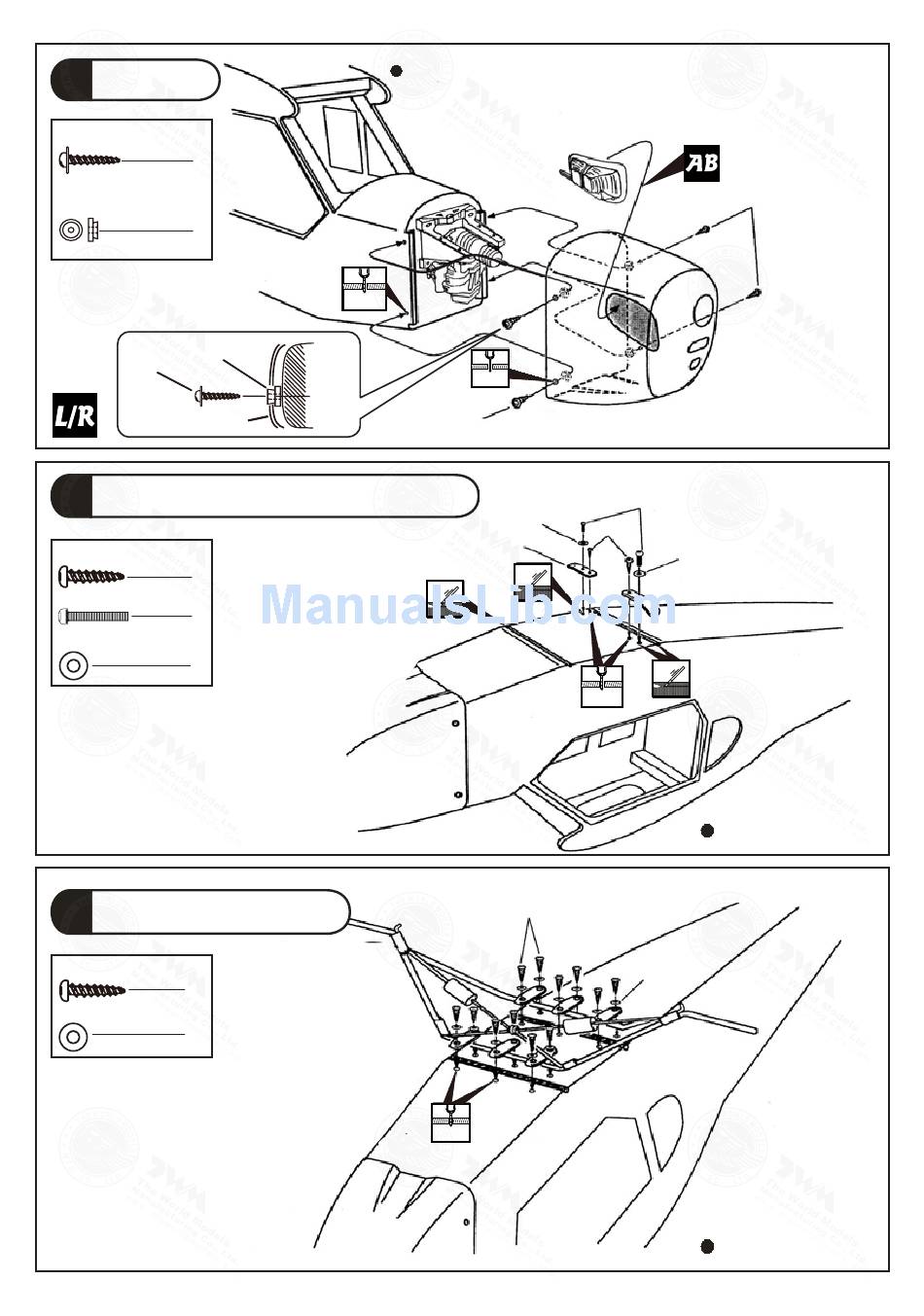

Cowling
7
PWA2.6x12mm Screw
4
d1.5xD6.5mm
Silicon Grommet
4
d1.5xD6.5mm
Silicon Grommet
PWA2.6x12mm
Cowling
8 Wing Struts Mounting Bracket
PA3x12mm Screw
2
HM3x13mm Screw
2
d3xD7mm Washer
2
9

Main Landing Gear

PA3x12mm Screw
12
d3xD7mm Washer
12
A053PO25871103
Please refer to the attached sheet for usage of the transparent 3D template.
First insert the grommet to the cowling then apply screw.
1mm 1mm 1mm 1mm
2.5mm
2.5mm 2.5mm
2.5mm
PWA2.6x12mm
d 3 xD7 mm
A l u mi n u m P l a te 2 mm
PA3x12mm
1.5mm
1.5mm
P.6
HM3x13mm
Wa sh e r
PA3x12mm
Wa sh e r
d 3 xD7 mm
1.5mm
1.5mm
Washer
d3xD7mm
PWA2.6x12mm
Bo tto m Vie w
Bo tto m Vie w
