Engine Mount - THE WORLD MODELS 1/4 Clipped Wing Cub Instruction Manual

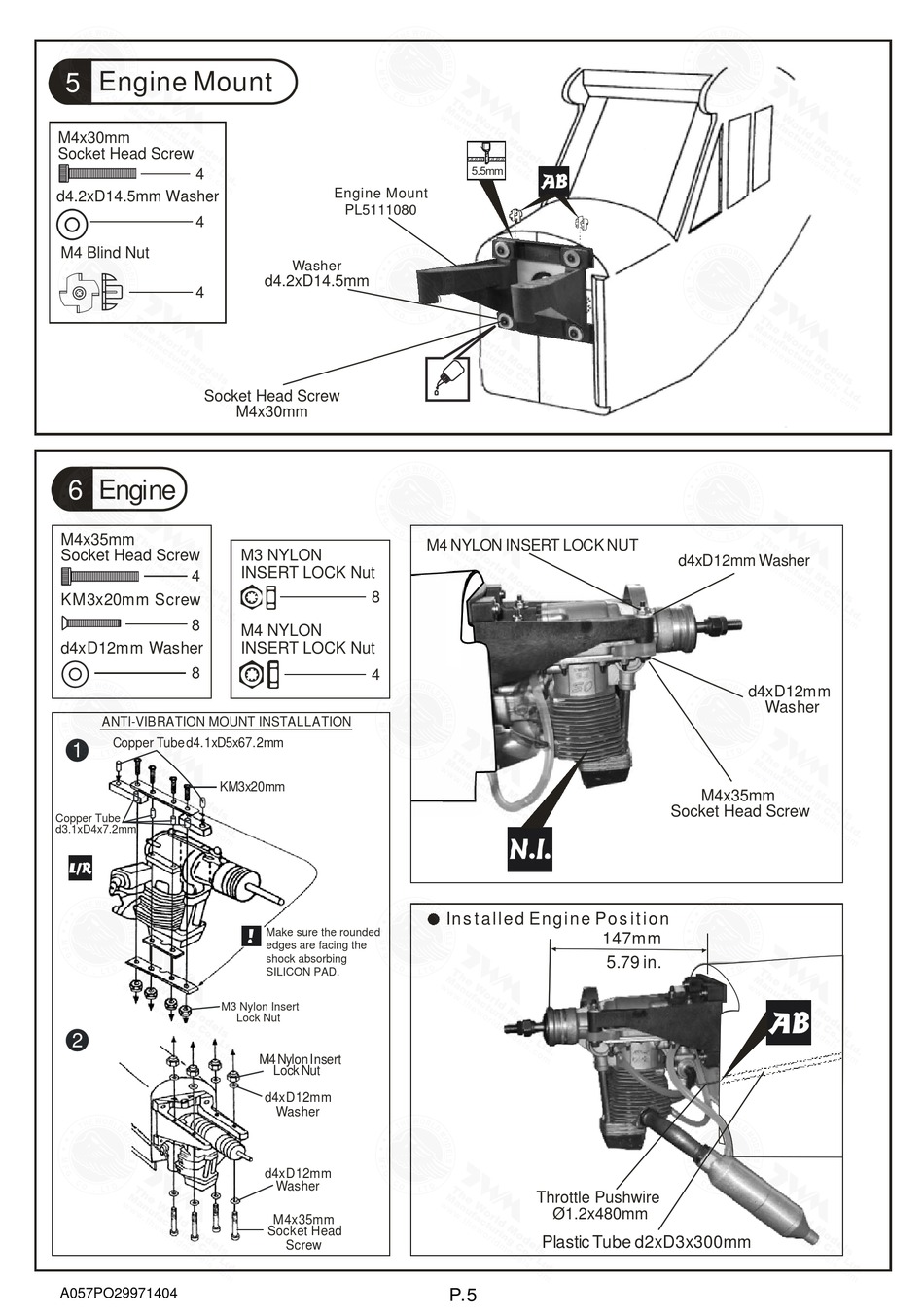

Engine Mount

5
M4x30mm
Socket Head Screw
4
d4.2xD14.5mm Washer
4
M4 Blind Nut
4
Socket Head Screw
6 Engine
M4x35mm
Socket Head Screw
4
KM3x20mm Screw
8
d4xD12mm Washer
8
ANTI-VIBRATION MOUNT INSTALLATION
Copper Tube d4.1xD5x67.2mm
1
KM3x20mm
Copper Tube
d3.1xD4x7.2mm
M3 Nylon Insert
2
A057PO29971404
Engine Mount
PL5111080
Washer
d4.2xD14.5mm
M4x30mm
M3 NYLON
INSERT LOCK Nut
8
M4 NYLON
INSERT LOCK Nut
4
Make sure the rounded
edges are facing the
shock absorbing
SILICON PAD.
Lock Nut
M4 Nylon Insert
Lock Nut
d4xD12mm
Washer
d4xD12mm
Washer
M4x35mm
Socket Head
Screw
5.5mm 7.5mm
M4 NYLON INSERT LOCK NUT
Ins ta lle d Engine Pos ition
Throttle Pushwire
Ø1.2x480mm
Plastic Tube d2xD3x300mm
P.5
Determine the angle of
installation of the engine
mount so the muffler
will not contact the
fuselage.
d4xD12mm Washer
d4xD12mm
Washer
M4x35mm
Socket Head Screw
147mm
5.79 in.
