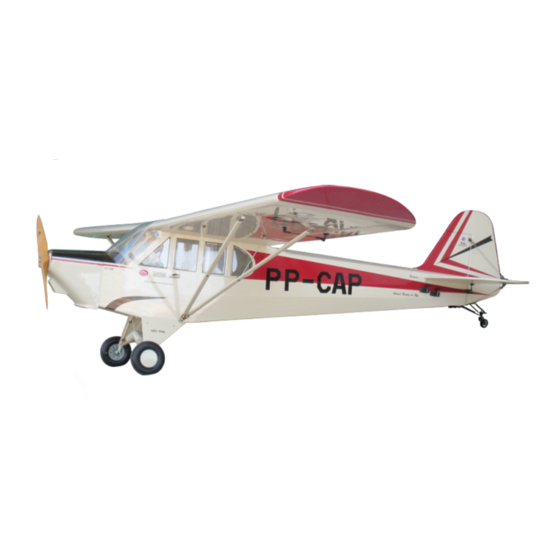

1/3 PAULISTINHA P-56
Requires: 80 c.c. gasoline engine,
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A324PO24581008
4-channel radio w/ 6 high torque servos.
Wing Span
Wing Area
Flying Weight
Fuselage Length
* Specifications are subject to change without notice. *
Specifications
141 in / 3580 mm
2821 sq in / 182 sq dm
28.5 lbs / 13000 g
91 in / 2310 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS 1/3 PAULISTINHA P-56
Summary of Contents for THE WORLD MODELS 1/3 PAULISTINHA P-56
-
Page 1: Specifications
INSTRUCTION MANUAL 1/3 PAULISTINHA P-56 Requires: 80 c.c. gasoline engine, 4-channel radio w/ 6 high torque servos. Specifications Wing Span 141 in / 3580 mm Wing Area 2821 sq in / 182 sq dm Flying Weight 28.5 lbs / 13000 g... -
Page 2: Before You Begin
1/3 PAULISTINHA P-56 INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.12 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 12. PUSHROD Ø2.3x215mm w/ Threads (For Elevator) -- 2 pcs SCREW PM4x50mm -- 2 pcs 2. SERVO MOUNTING PANEL (For Aileron) -- 1 pair M4 NYLON INSERT LOCK NUT -- 2 pcs HEAVY DUTY CLEVIS PL4112200 -- 4 sets SWIVEL CLEVIS HORN FAIRING PL4610010 -- 2 sets SCREW PM4x60mm -- 2 pcs... -
Page 4: Bottom View
Main Wing Aileron Servo Lead Pre-glued Bottom View Aileron servo PL4120300 M2x8mm Screw PM4x60mm Nylon Insert Lock Nut PWA2.3x8mm Screw 1.5mm Heavy Duty Horn Bracket M2x10mm M4 Nylon Insert Lock Nut M2 Nylon Insert Lock Nut Heavy Duty Heavy Duty Clevis Clevis Nylon Insert M2x10mm... -
Page 5: Wing Struts
Wing Struts 280mm 260mm HM4x20mm Screw 174mm 184mm HM4x20mm d4xD9mm Main Wing Strut 465mm 481mm d4xD12mm Washer Washer d4xD9mm Washer 3.5mm M4 Nylon Insert Lock Nut HM4x20mm M4 Nylon Insert Lock Nut d4xD12mm Washer Bottom View Stabilizer & Elevator Temporary install the main wing, adjust (Stabilizer) leveling of the stabilizer to make it as parallel to the main wing as possible. -
Page 6: Tail Landing Gear
Tail Landing Gear PWA2.5 x 12mm PA3x18mm Screw PA3 x18mm PWA2.5x12mm Screw Spring 2.5mm 1.5mm Copper Plate 1x12x60mm Bottom View Main Landing Gear HM4x18mm Screw 1.5mm PA3x14mm Screw HM4x18mm d4xD9mm Aluminum Plate Washer 3x15x77mm d4xD12mm PA4x20mm Screw Washer d4xD12mm Washer PA4x20mm 2.5mm d4xD9mm Washer... - Page 7 Engine M6 Blind Nut M6x30 SOCKET HEAD SCREW SOCKET HEAD d6xD15mm Washer SCREW M6x30 mm 7.2mm M6 Blind Nut Washer d6xD15mm Please refer to the attached sheet for usage of the transparent Cowling 3D template. First insert the grommet to the cowling then apply screw. PA3x12mm Screw 190mm d2.5x8.5mm Silicon Grommet...
-
Page 8: Elevator Pushrod
Fuel Tank CABLE TIE 1.5x8x500mm DOUBLE-SIDED 40x160mm Fuel Tank 1500cc Completed Elevator Pushrod PL4120250 M2x8mm PM4x50mm Screw Nylon Insert Lock Nut Heavy Duty Horn Bracket M4 Nylon Insert Lock Nut M2 Nylon Insert Lock Nut Heavy Duty Clevis M2x10mm PM4x50mm PA1.7x8mm Elevator Pushrod Bottom View... - Page 9 Flying Wire PM2x18mm Screw Copper Tube M2 Nut Press down the center d2xD5mm Washer 1/3 portion PM2x18mm PM2x18mm d2xD5mm Washer d2.5xD3.2x8mm M2 NUT Windows Window B Window A Completed COMPLETED Securely glue the windows to the fuselage. Servo Set 3x3mm 3x3mm Set Screw Throttle Pushwire Linkage Connector...
-
Page 10: Radio Equipment
Radio Equipment lnstall and arrange the servo as shown in the diagram. Receiver Sponge Battery Plastic tube Throttle Pushrod Charge Receptacles Throttle Servo D1.2x480mm d2xD3x300mm Bottom View KP0041300 Pilot PWA 2x12mm Screw PWA2x12mm Screw PC101110A BALSA ROD 8x220mm Wind Shield Ø... - Page 11 Main Wing Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align the lines marked at the wing root and wing tube and apply the PM3x30mm machine screw through the pre-drilled hole on top of the wing. ( please confirm the HM3x30mm Screw alignment of the hole by putting a 2.5mm diameter rod through the pre-drilled wing hole before applying the screw ) The hole on the wing tube is pre-threaded, do not over...
- Page 12 Wing Struts HM4x15mm Screw Washer d4x D12mm Washer d4xD12mm HM4x15mm M4 NYLON INSERT LOCK NUT M4 NYLON INSERT LOCK NUT Bottom View Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A = A ' B = B ' C = C ' A324PO24581008 P.11...
-
Page 13: Control Throws
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. 1/3 PAULISTINHA P-56 is specially designed to be powered by 80c.c. engine, using a more powerful engine does not mean better performance. - Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 16 ｎ The World Models Manufacturing Co., LTD. www.theworldmodels.com A324PO24581008...
