Before Using

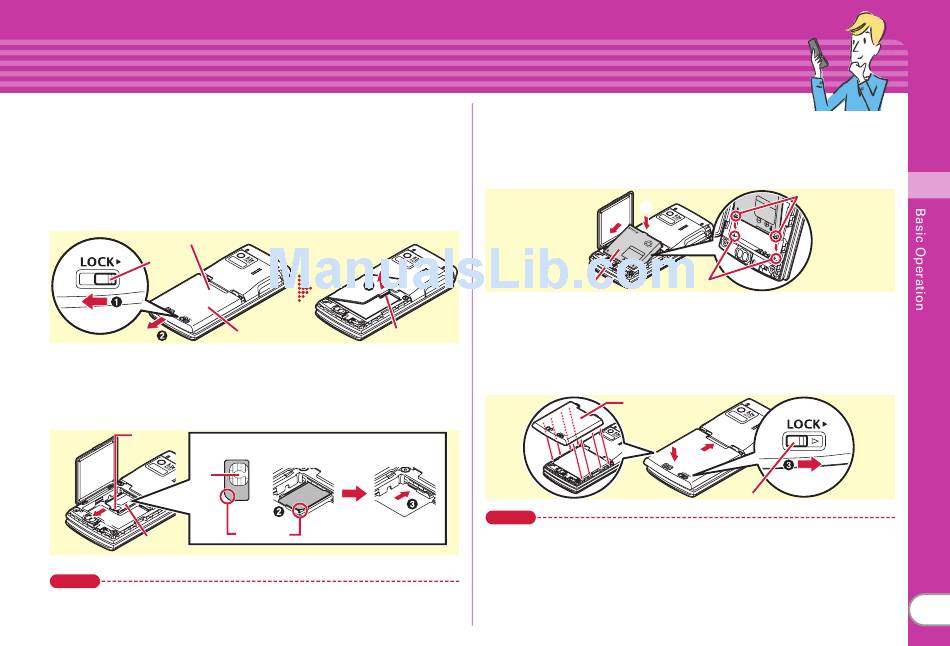

Attaching UIM (FOMA card)/battery pack
After turning power OFF, close FOMA terminal and hold it in your
hand so that you can properly attach UIM/battery pack.
✜
Removing Back Cover
Slide the lever in the direction of a to unlock, pressing the back cover
with a thumb and slide approximately 2 mm in the direction of b to
remove. Pinch the tab of inner lid and hold it up in the direction of c
to open until it stops.
Press here with your thumb
Lever
✜
Installing UIM
Pull the tab with your nail and pull out the tray until it clicks (a). Hold
UIM with the IC side down, align the corner cut with the tray (b) and
push into the tray until it stops (c).
Tab
UIM
IC
a
Tray
Point
･
UIM (blue) is not available for this FOMA terminal. If you have the UIM
(blue), bring it to a docomo Shop.
Back cover
Tab
Corner cut
✜
Installing battery pack
With the label side of the battery pack upward, align convex parts of
the battery pack with concave parts of FOMA terminal and slide the
battery pack in the direction of a, press the battery pack in the
direction of b to set it in and close the inner lid.
b
a
Concave parts
Battery pack
✜
Installing back cover
Place the 8 tabs of back cover to the notches, press back cover in the
direction of a to avoid forming any clearance between FOMA
terminal and back cover, then slide it in the direction of b to install
and slide the lever of the back cover in the direction of c to lock it.
Back cover
Point
･
The inner lid is designed to be closed firmly to maintain waterproofness.
Note that forcibly opening may hurt your nail or finger.
･
To avoid damage by forcible opening, hinge of the inner lid (joint part to
terminal body) is designed to be removed. If it is removed, align the pin
metal of the inner lid with groove of FOMA terminal and push it until it
clicks.
Convex parts
b
a
Lever
