Before Using the Handset

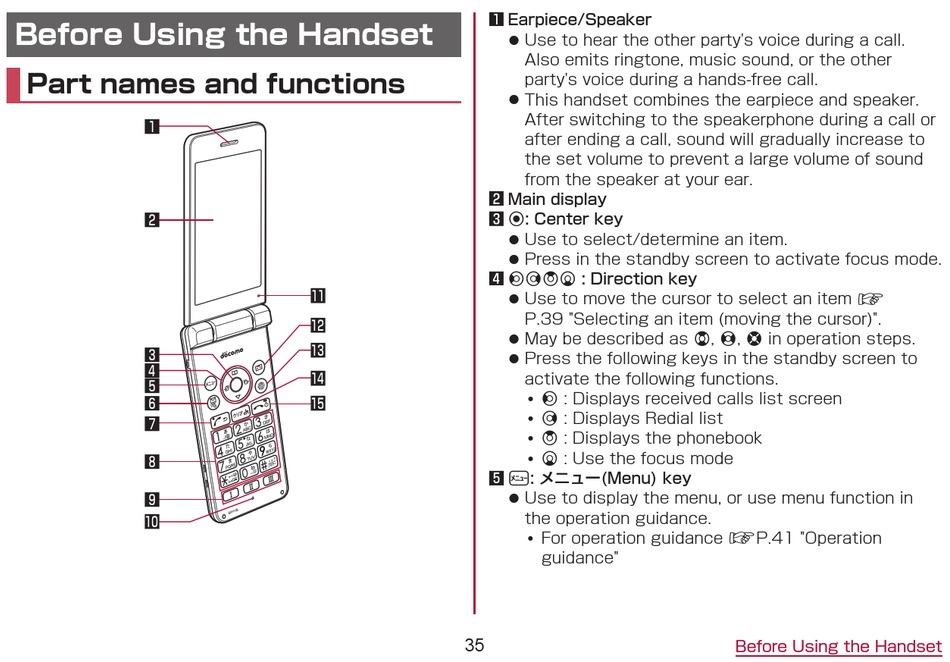

Part names and functions

1
2
3
4
5
6
7
8
9
1 Earpiece/Speaker
z Use to hear the other party's voice during a call.
Also emits ringtone, music sound, or the other
party's voice during a hands-free call.
z This handset combines the earpiece and speaker.
After switching to the speakerphone during a call or
after ending a call, sound will gradually increase to
the set volume to prevent a large volume of sound
from the speaker at your ear.
2 Main display
3 t: Center key
z Use to select/determine an item.
z Press in the standby screen to activate focus mode.
4 qrop : Direction key
z Use to move the cursor to select an item
P. 39 "Selecting an item (moving the cursor)".
z May be described as u, v, w in operation steps.
z Press the following keys in the standby screen to
activate the following functions.
y q : Displays received calls list screen
y r : Displays Redial list
y o : Displays the phonebook
y p : Use the focus mode
5 z: メニュー(Menu) key
z Use to display the menu, or use menu function in
the operation guidance.
y For operation guidance
guidance"
35
☞
☞
P. 41 "Operation
