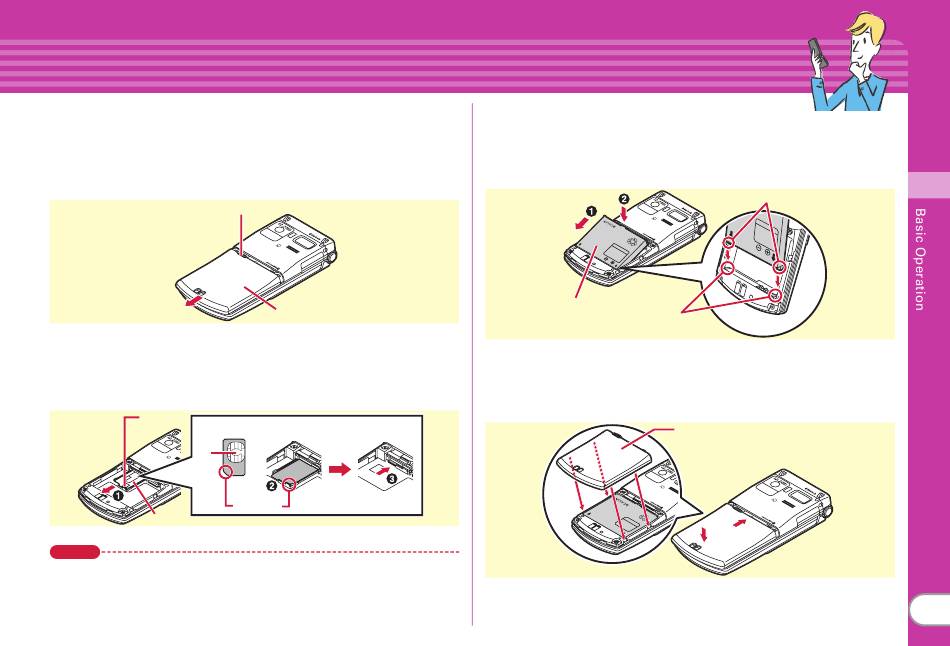

Attaching UIM (FOMA card)/battery pack
After turning power OFF, close FOMA terminal and hold it in your
hand so that you can properly attach UIM/battery pack.
✜
Removing Back Cover
Slide the back cover in the direction of the arrow by 3 mm with a
thumb to remove it.
Press here with your thumb
✜
Installing UIM
Pull the tab with your nail and pull out the tray until it clicks (a). Hold
UIM with the IC side down, align the beveled corner with the tray (b)
and push into the tray until it stops (c).
Tab
UIM
IC
Tray
Point
･
UIM (blue) is not available for this FOMA terminal. If you have the UIM
(blue), bring it to a docomo Shop.
Back cover
Corner cut
✜
Installing battery pack
With the label side of the battery pack upward, align convex parts of
the battery pack with concave parts of FOMA terminal and slide the
battery pack in the direction of a, press the battery pack in the
direction of b to set it in.
Battery pack
Concave parts
✜
Installing back cover
Place the 4 tabs of back cover to the notches, press back cover in the
direction of a to avoid forming any clearance between FOMA
terminal and back cover, then slide it in the direction of b to install it.
Convex parts
Back cover
b
a
