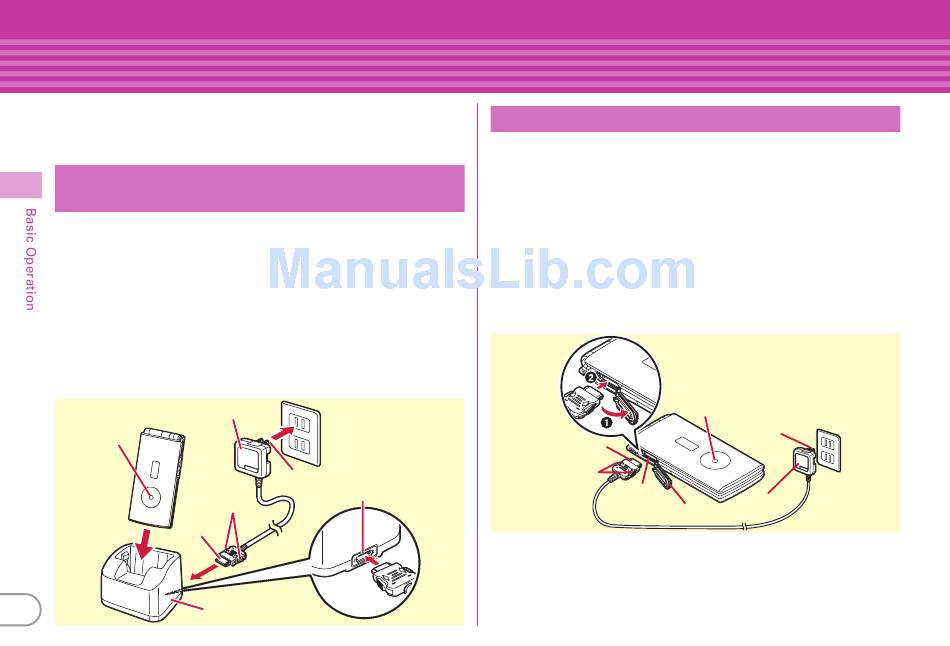

Before Using
Charging
The battery pack does not have a full charge at time of purchase.
Use AC adapter for FOMA terminal to charge the battery before
using FOMA terminal.
Charging using desktop holder in
combination
a
Insert the AC adapter to the attached desktop holder,
with the arrows on the AC adapter's connector upward
b
Unfold the AC adapter's power plug and insert it into a
100V AC outlet
c
With FOMA terminal closed, insert it into the attached
desktop holder
* Check that the light turns on.
d
After charging is completed, remove FOMA terminal
from the desktop holder
Light
Connector
22
AC adapter
100V AC outlet
Power plug
Release
Insert at the back side
buttons
Desktop holder
Charging using AC adapter
a
Open jack cap (a) of FOMA terminal, hold the
connector horizontally with the arrows side upward
and insert it to the jack (b)
b
Unfold the power plug and insert it into a 100V AC
outlet
* Check that the light turns on.
c
When charging is over, pull out the power plug from
the outlet, and pull out from FOMA terminal
horizontally while pressing the release buttons on both
sides of the connector
Connector
Release buttons
External
connection
jack
Operations for charging
When charging starts, a charge start alert sounds. While charging, the
light turns on and the battery icons on the display and the sub-display
blink. When charging is over, a charge completion alert sounds.
Light
100V AC outlet
Power plug
AC adapter
Jack cap
