Choosing a place for the ADSL Router

• Place the ADSL Router close to ADSL wall outlet and power outlet for the cable to reach it easily.
• Avoid placing the device in places where people may walk on the cables. Also keep it away from direct
sunlight or heat sources.
• Place the device on a flat and stable stand.
Connecting the ADSL Router (Ethernet)
Follow the steps below to connect the related devices.
• Connecting the ADSL line. Connect the Line port of the device to your ADSL wall outlet with RJ-11 cable.
• Please attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your ADSL Router.
• Connect the other end of the cable to the Ethernet port of the client PC.
• Connect the supplied power adapter to the Power port of your ADSL Router, and plug the other end to a
power outlet.
• Turn on the power switch.

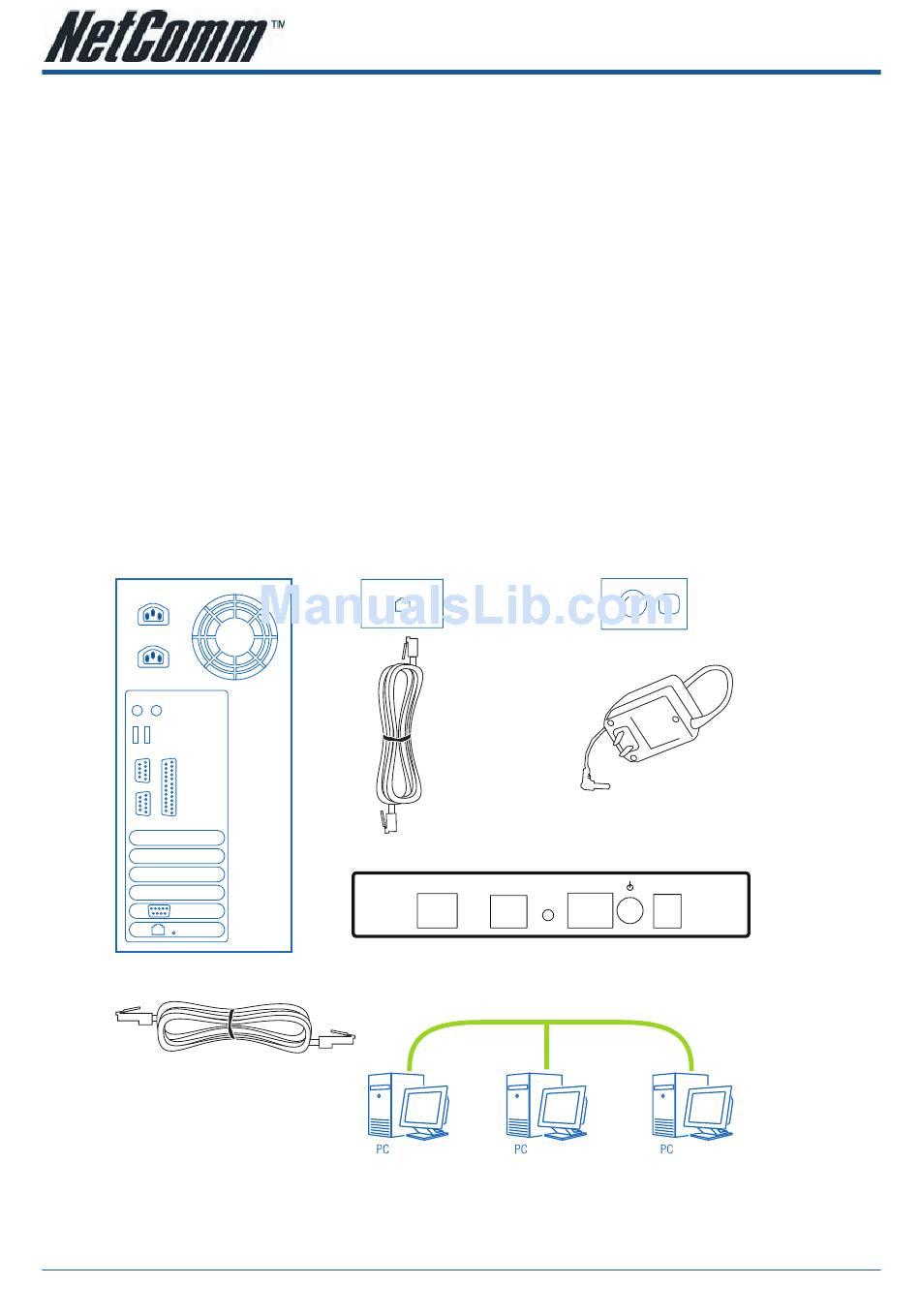

Computer with
Network Card
Ethernet Cable into
the Ethernet Port
(1, 2, 3 or 4 if using
NB6Plus4, NB6Plus4W and
NB6Plus4Wn)
NB6, NB6W, NB6Plus4, NB6Plus4W, NB6Plus4Wn User Guide

ADSL Enabled
Line
Telephone Line
Cable into Line
Port
Line USB
ADSL Router
Use Ethernet Cables to connect more
PCs or Switches (NB6Plus4 and NB6Plus4W and
NB6Plus4Wn only)
Powerpoint
Power Adaptor
into Power Port
Reset Ethernet Power
* Model shown is NB6 may vary slightly from image
