Internet Connection; Traffic Statistics - NetComm NB6PLUS4WN User Manual

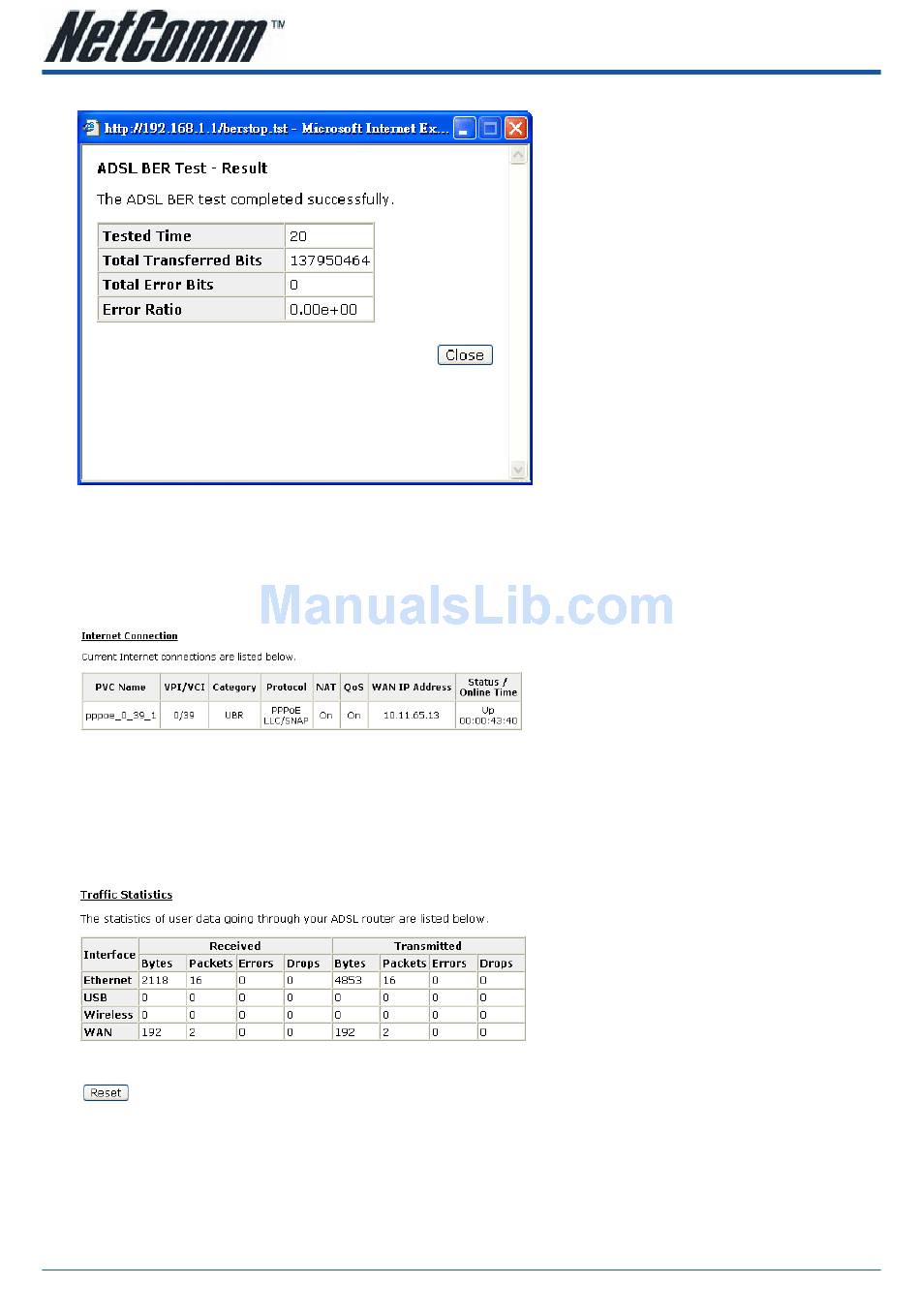

When the test is over, the result will be shown on the following dialog window for your reference.
Click Close to close this window.

Internet Connection

This page displays the connection information for your router, such as the PVC name, VPI/VCI value, service
category, protocol, invoking NAT and QoS or not, IP address, linking status, and so on.

Traffic Statistics

This table shows the records of data going through the LAN and WAN interface. For each interface, cumulative
totals are displayed for Received and Transmitted.
You may click Reset to reset the amount.
NB6, NB6W, NB6Plus4, NB6Plus4W, NB6Plus4Wn User Guide
6
YML854Rev1
www.netcomm.com.au
