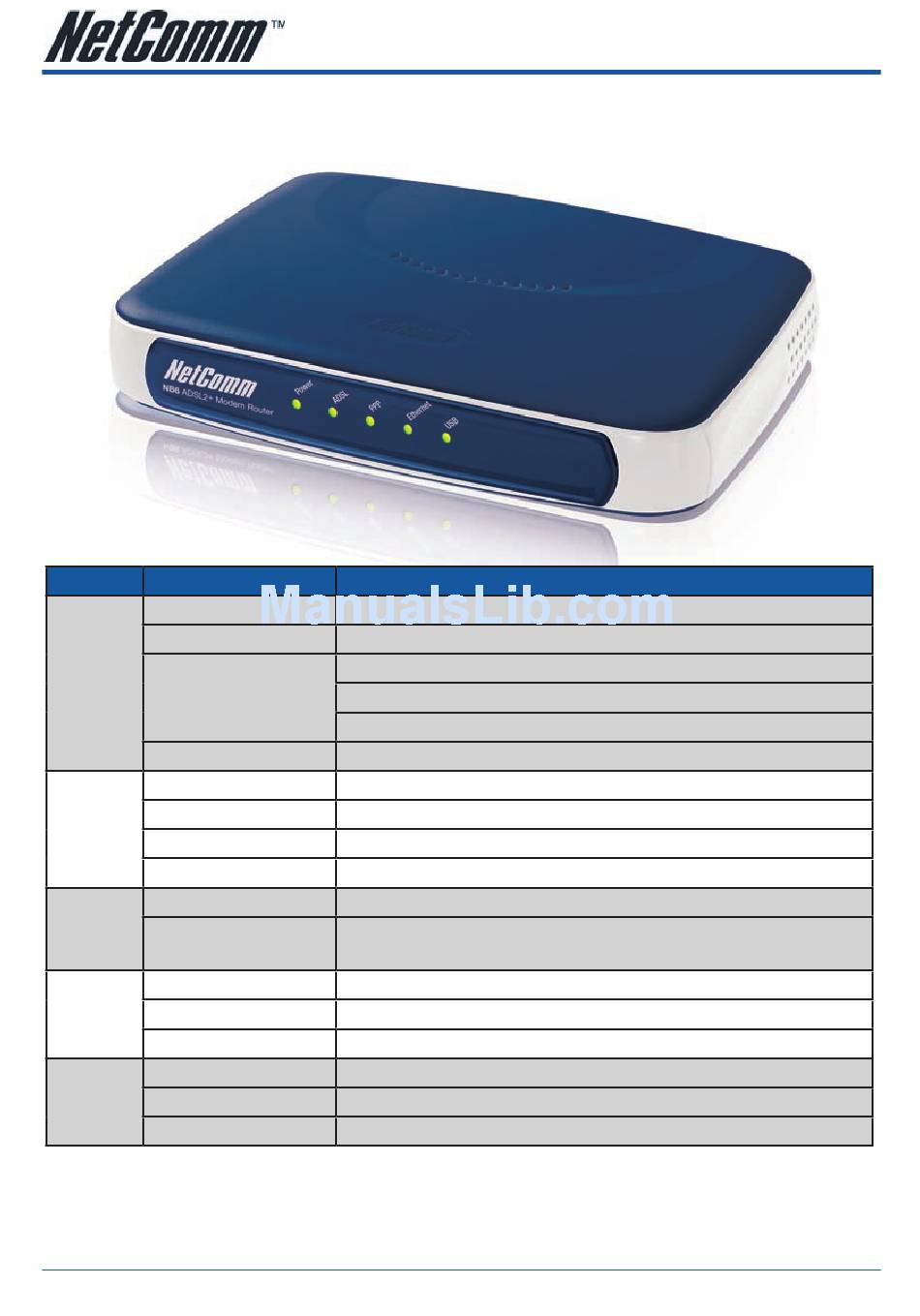

NB6 LED Indicators

The LED Indicators are located on the front of the unit, their meanings are as follows:
Function Color
Power Off
Solid Green
Solid Red
Flash Red
ADSL Off
Slow Flash Green
Fast Flash Green
Solid Green
PPP
Off
Solid Green
Ethernet
Off
Flash Green
Solid Green
USB Off
Flash Green
Solid Green
NB6, NB6W, NB6Plus4, NB6Plus4W, NB6Plus4Wn User Guide
10
Definition
Power is off.
Power is on and the device operates normally.
Power on self-test in progress
The device enters the console mode of the boot loader.
Power on self-test failure if the led always stays solid red.
Firmware upgrades in progress
No ADSL signal is detected.
ADSL line is handshaking in progress
ADSL line is training in progress
ADSL line connection is up.
No PPPoA or PPPoE connection
At least one PPPoA or PPPoE connection is up. The users can access
the Internet now.
No Ethernet signal is detected.
User data is going through Ethernet port
Ethernet interface is ready to work.
No USB signal is detected.
User data is going through USB port
USB interface is ready to work.
