An error message relating to the router MTU settings is common when the NB6Plus4W Rev2 is

used with gaming consoles, but you don't actually need to change the MTU settings.

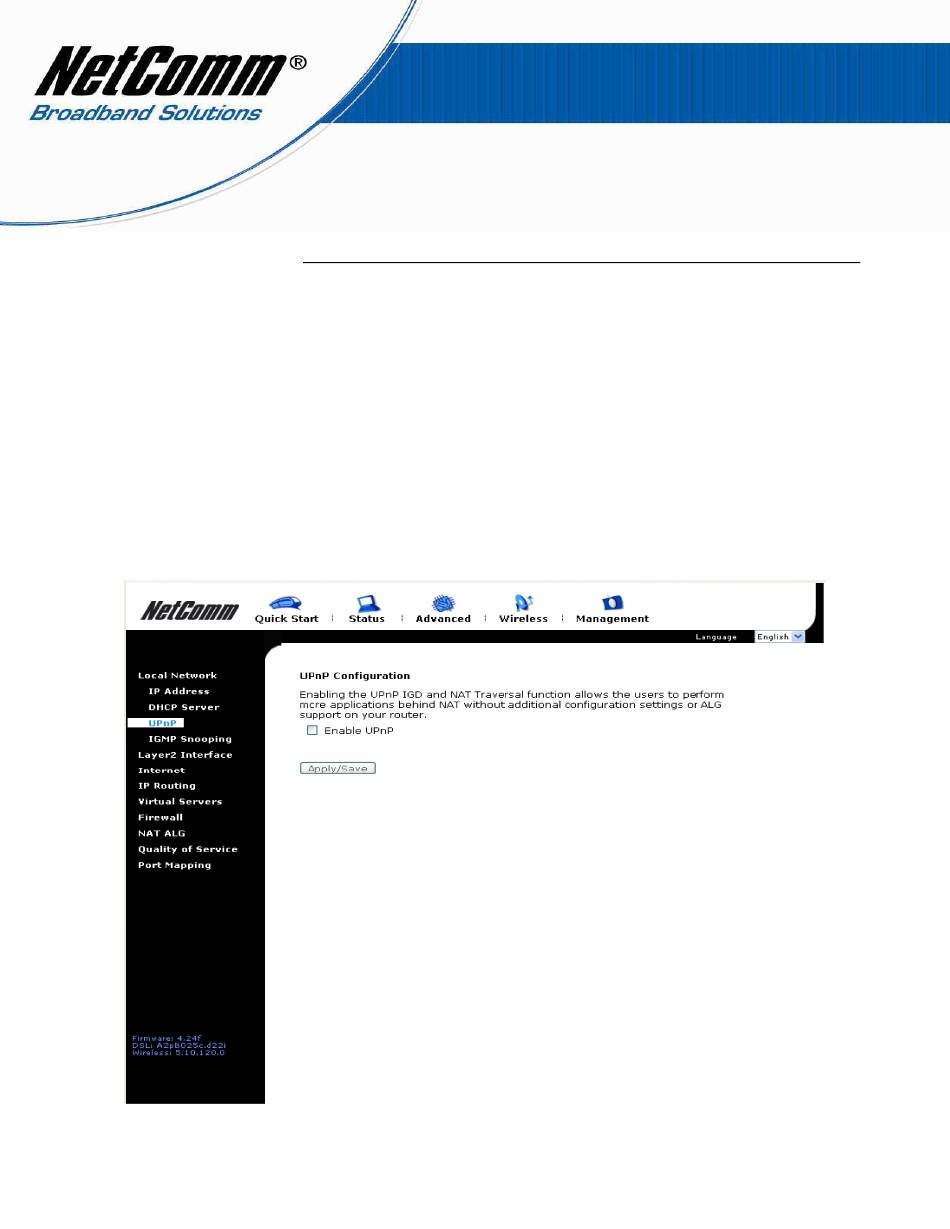

You will however need to disable the UPnP function on the modem and configure port forwarding

settings to allow network traffic to the Playstation:

Open Internet Explorer and type 192.168.1.1 in the address bar, and then press

Enter.

If prompted for username and password, use 'admin' for both (without the

quotes).

Click on the Advanced option and then on Local Network.

NB6Plus4W Rev2 Configuration Settings for Playstation 3

Table of Contents

Need help?

Do you have a question about the NB6Plus4W and is the answer not in the manual?

Page 1 NB6Plus4W Rev2 Configuration Settings for Playstation 3 An error message relating to the router MTU settings is common when the NB6Plus4W Rev2 is used with gaming consoles, but you don’t actually need to change the MTU settings. You will however need to disable the UPnP function on the modem and configure port forwarding settings to allow network traffic to the Playstation: Open Internet Explorer and type 192.168.1.1 in the address bar, and then press...
Page 2 Follow the instructions at the link below to set a static IP address on your Playstation: http://portforward.com/networking/staticip-ps3-playstation-3.htm You can use an IP address like 192.168.1.100 for example. The following ports need to be opened on the NB6Plus4W Rev2 to successfully connect the PlayStation console to the internet: TCP Ports: 10070 - 10080 UDP Ports: 10070, 50000 Voice Chat: UDP 6000-7000, 10070 (for headset operation).
