Now we can check the result of the port mapping configuration. We have a default group, in which
PPPoE mode will be applied through Ethernet port 2, 3, and 4, and we have another group named
bridge, in which the bridge mode will be applied on USB, Wireless, and Ethernet port1.
You may click to edit the created group, press

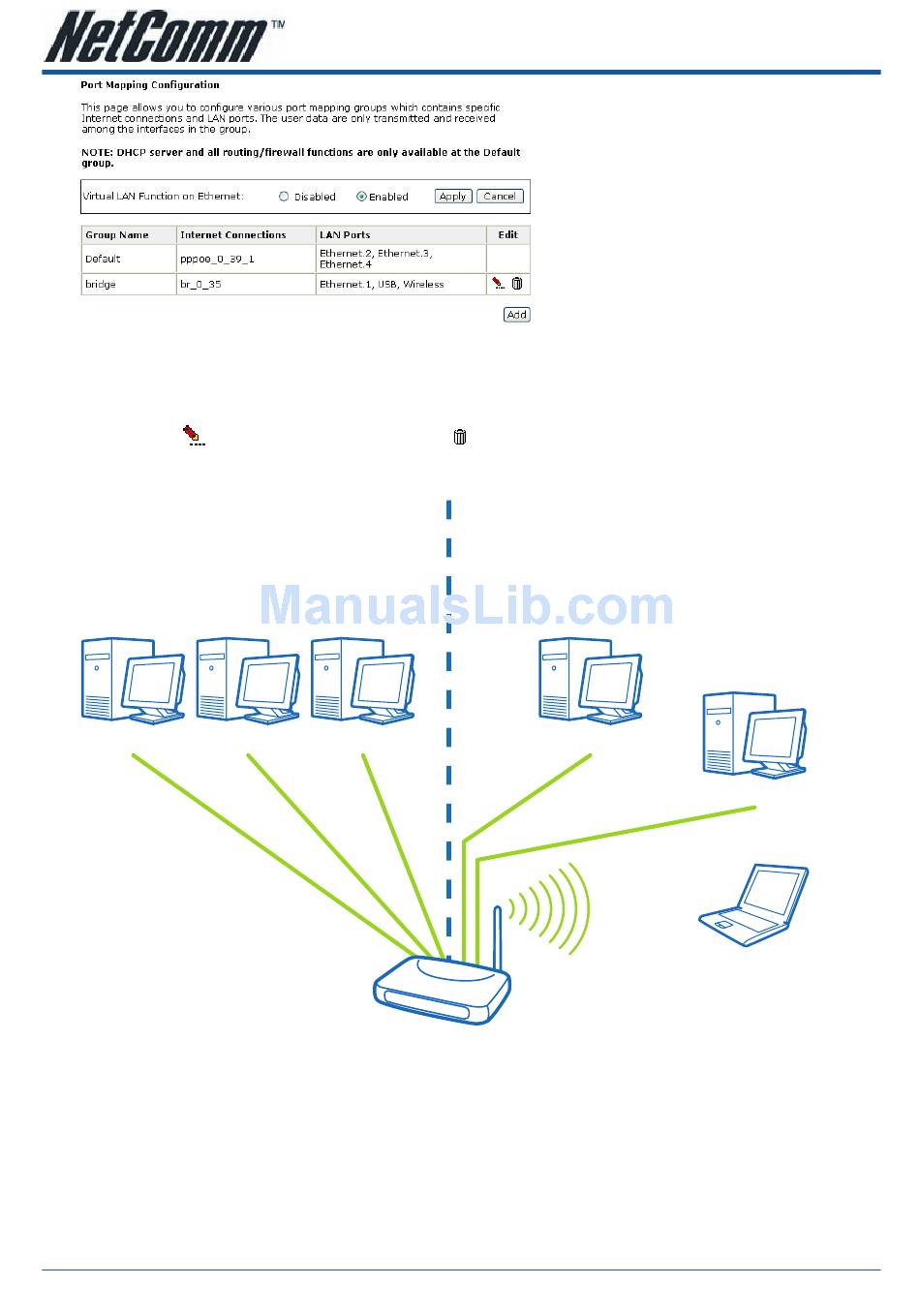

The following relationship figure illustrates the port mapping configuration.
Ethernet 4 Ethernet 3
Under this configuration, any devices that is connected to USB, Wireless, or Ethernet port 1 will connect to the
internet through the bridge mode PVC br_0_35, while the PCs using Ethernet port 2, 3, and 4 will access the
internet by the PPPoE connection pppoe_0_35_1.
