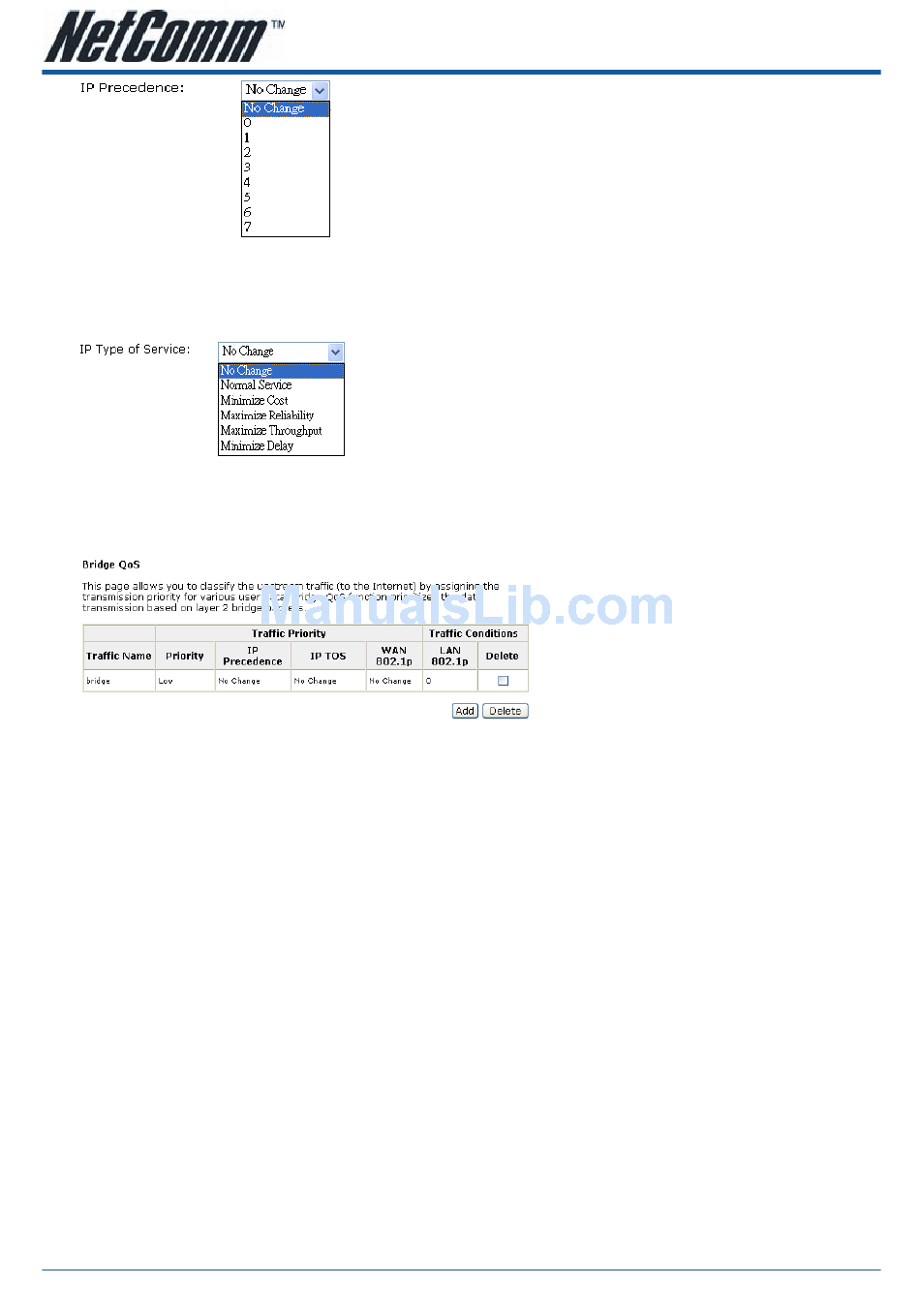

IP Precedence:
The number you choose here decides the type of the IP address processed. No change is the
default setting.
IP type of Service:
The system provides some types of service for you to choose. The meaning of each type is the same
as the denotation. The default one is No change.
If you set the LAN 802.1p Priority 0 as the traffic condition, choose Low traffic priority for this rule,
and set IP Precedence, IP type of service, and WAN 802.1p as no change, after clicking Apply, you
will get the result as the figure in the right column.
Thus when the users' data matches the traffic condition, the transmission will get a low traffic priority.
You may check the Delete box and press Delete to discard it, or click Add to create more.
