Repeater

A repeater is an electronic device that receives a weak or low-level signal and retransmits it at a
higher level or higher power, so that the signal can cover longer distances without degradation.
LAN Backbone
Client B
Client D

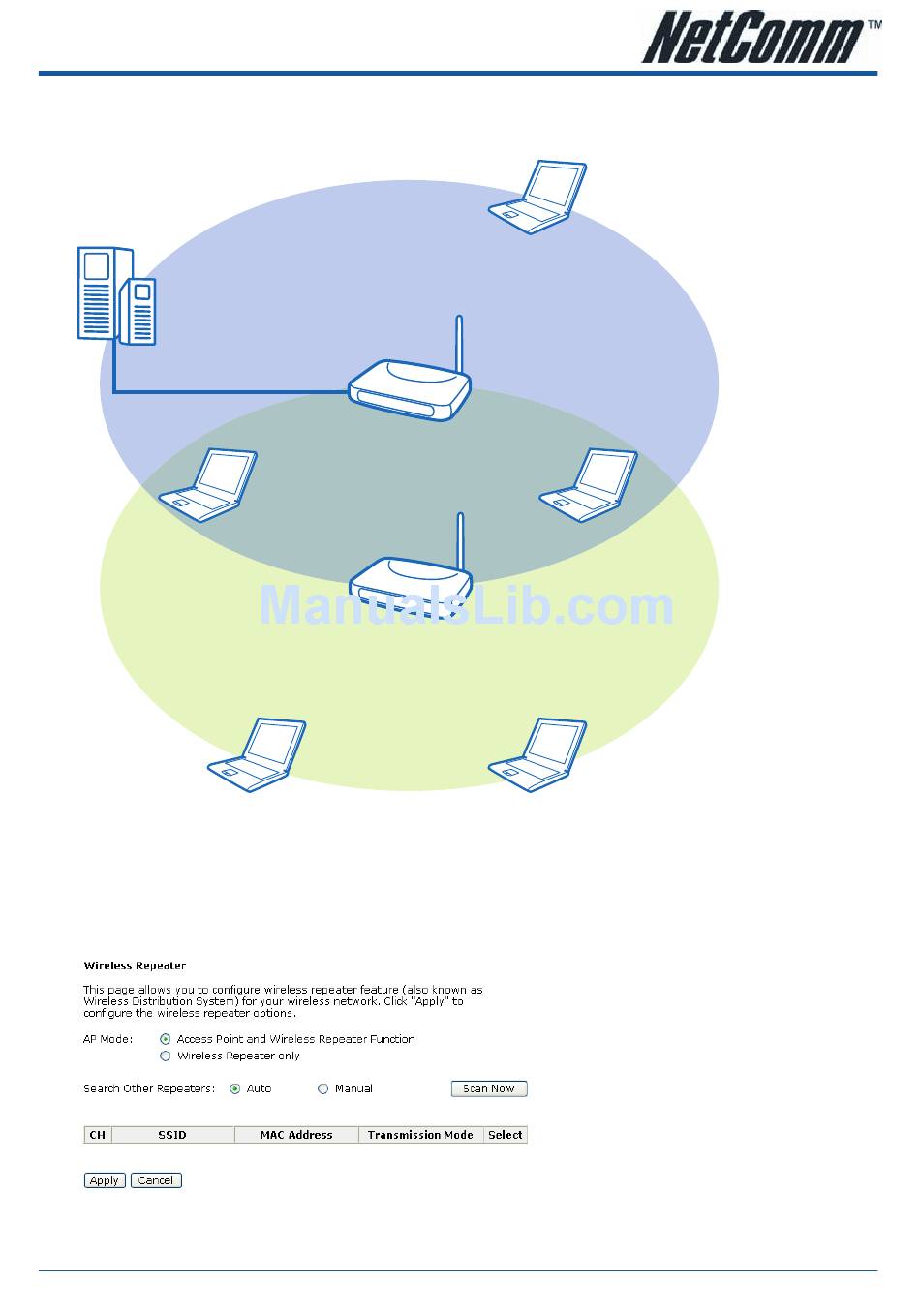

The example figure illustrates the relationship among the AP, the repeater, and the clients. In this
example, client A, B, and C can access AP-A, but client D and E cannot. In this case, AP-B works as
the repeater for AP-A, and thus client D and E may receive the signal smoothly.
The web page allows you to configure the wireless distribution system for the wireless network.
AP mode:
Choose an AP mode that you would like to use.
YML854 Rev1
www.netcomm.com.au
Client A
Channel 11
Access Point A
Client C
Channel 11
Access Point B
Repeater
Client E
