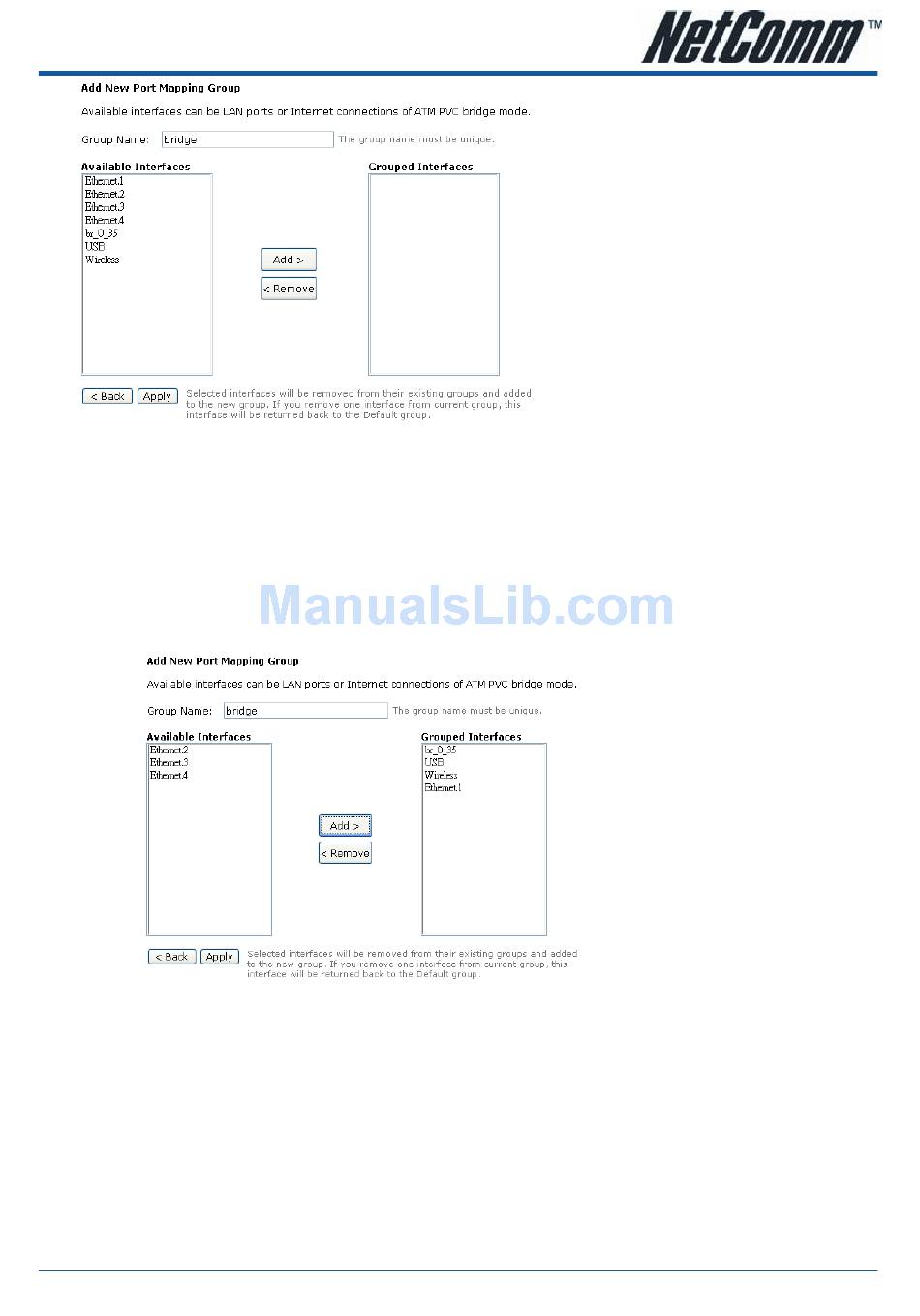

Group Name:
Give a unique name here. The word length must not be over the length of the field. In our
example, bridge.
Available Interfaces:
The available interfaces (such as Ethernet, USB, wireless, etc.) will be displayed in the left side box.
When you choose it and click Add, it will be transferred into the Grouped Interfaces at the right side
box. Yet, if you want to remove the interface from the current group, it will be returned back to the
Default group (left side box) after you click Remove.
Now we are going to map USB, Wireless, and the first Ethernet port together with the bridge mode
PVC. Click br_0_35 and press Add button, then use the same way to add USB, Wireless, and
Ethernet1 to grouped interfaces. The four items are moved to the right box now.
When the setting is done, click Apply.
YML854 Rev1
www.netcomm.com.au
NB6, NB6W, NB6Plus4, NB6Plus4W, NB6Plus4Wn User Guide
NB6, NB6W, NB6Plus4, NB6Plus4W, NB6Plus4Wn
101
