Port mapping

This page allows you to configure various port mapping groups which contains specific Internet connections
and LAN ports. The user data will be only transmitted and received among the interfaces in the group.
virtual LAN Function on Ethernet:
If you click Disabled, the LAN ports for Ethernet ports will only be shown as an Ethernet interface.

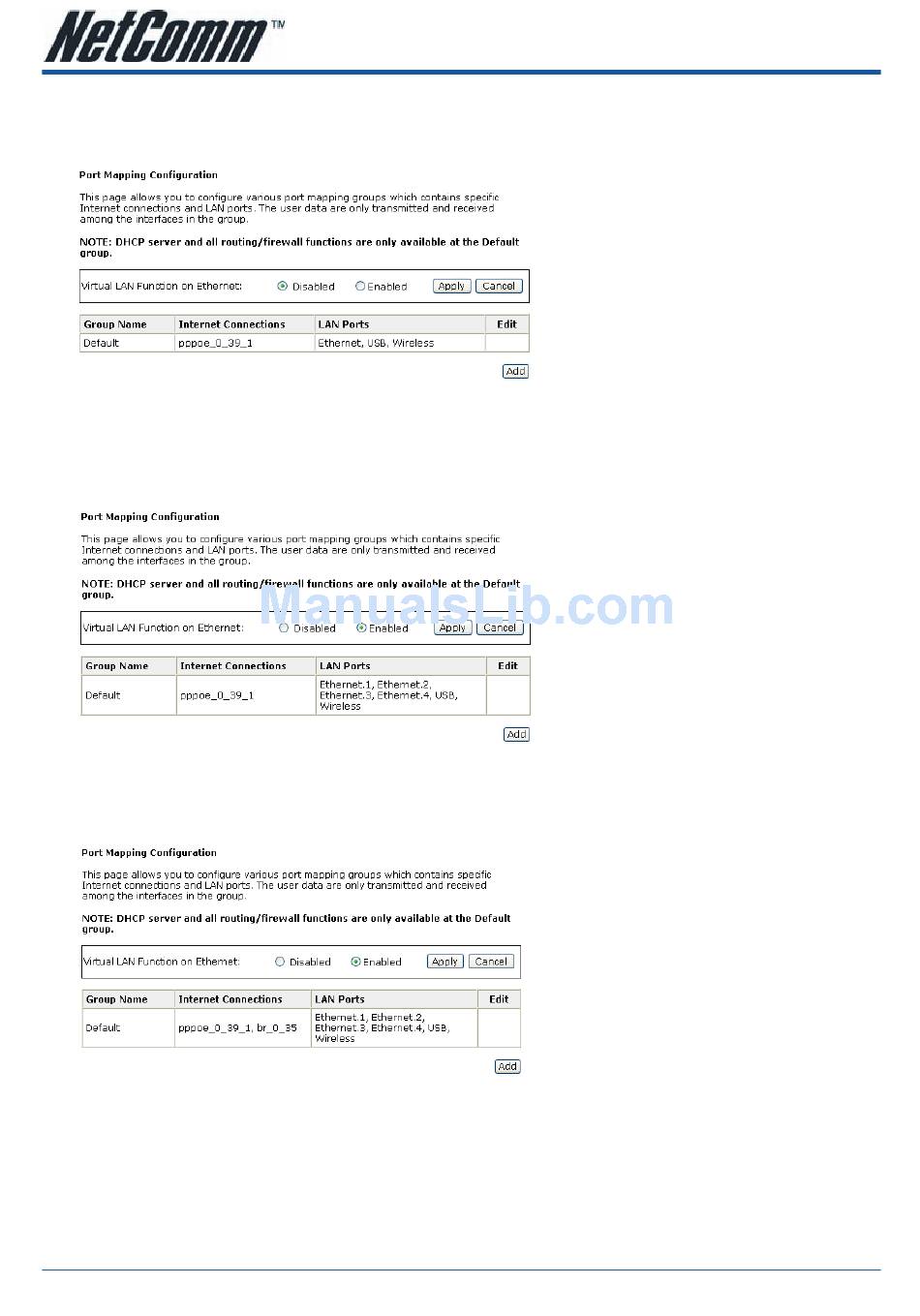

After applying Enabled, the LAN ports will be viewed as four separated ports shown on the status
chart as below.
Normally, this function only needed when more than two PVCs are available, for example, if we
have two PVCs, one uses PPPoE and the other uses Bridge mode, we may want to group certain
connection to a specific port, especially when some devices may consume higher bandwidth.
In our following demonstration, we have two PVCs; they are pppoe_0_35_1and br_0_35.
Click Add to create a new port mapping group.
