ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench
screwdriver

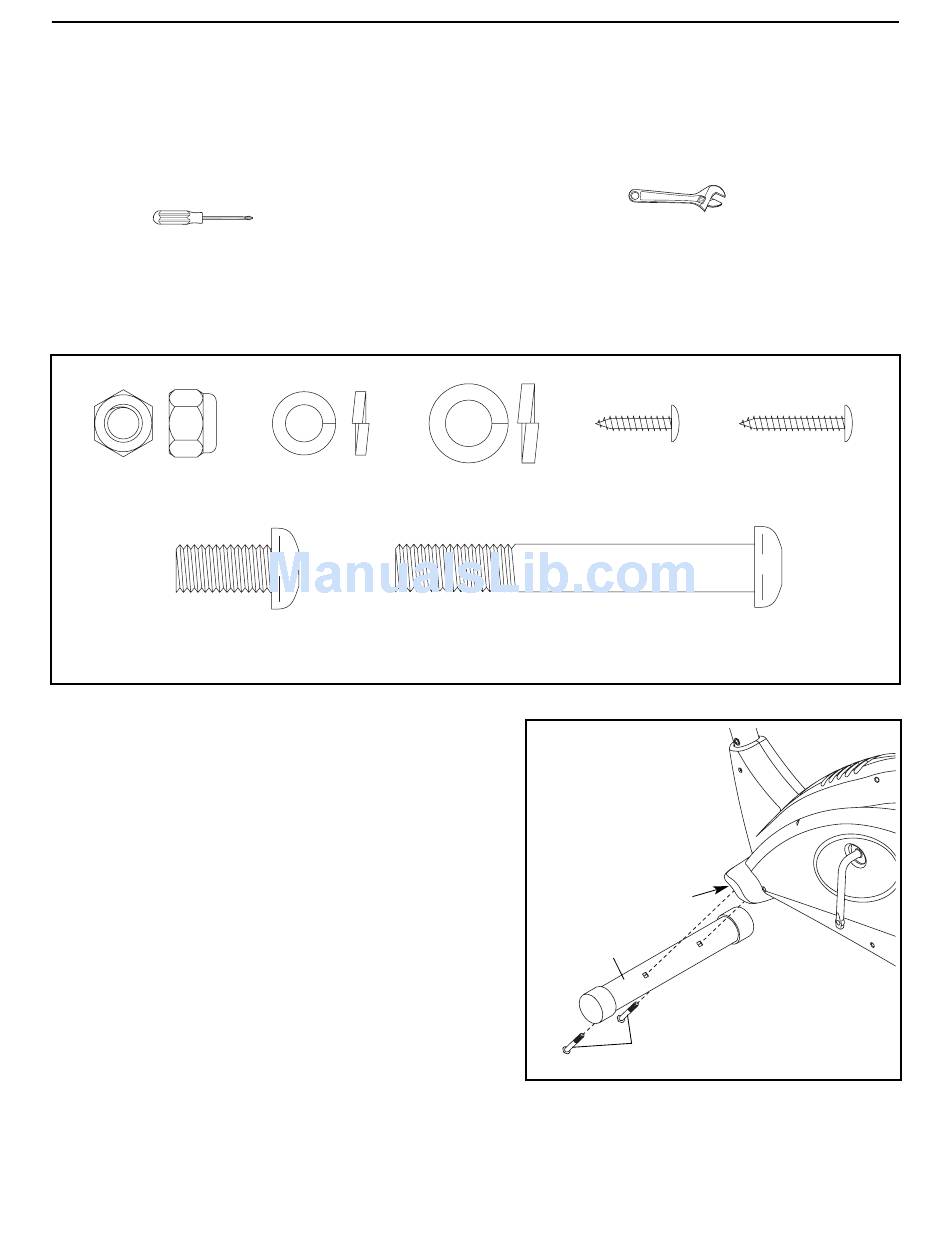

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 18. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been preattached for shipping. If a
part is not in the parts bag, check to see if it has been preattached.
M8 Nylon
Locknut (37)–4
M10 x 20mm Button
Screw (35)–3
1. Identify the Front Stabilizer (2), which is narrower than
the Rear Stabilizer (not shown). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 74mm Button
Screws (33).
.
M8 Split
Washer (36)–4 Washer (34)–3
M10 Split M4 x 16mm
Screw (25)–4
M10 x 74mm Button Screw (33)–4
