Chapter 9

History Window

Selecting the Active Controller

Xmath Interactive Control Design Module

•

A Variable-Edit box which shows which history list entry is active or

currently selected. The selected entry is the controller exported to

ICDM for plotting.

•

Buttons for manipulating the history list.

You can type a number in the Variable-Edit box that shows the selected

controller, or you can select a controller in the list (which will become

highlighted) and then click Select at the bottom of the History window.

Notice that you can consider the History window as a type of synthesis

window, with one simple design parameter: the integer that gives the

selected design.

To change the comment stored with a design, select an entry from the list

and click Edit.

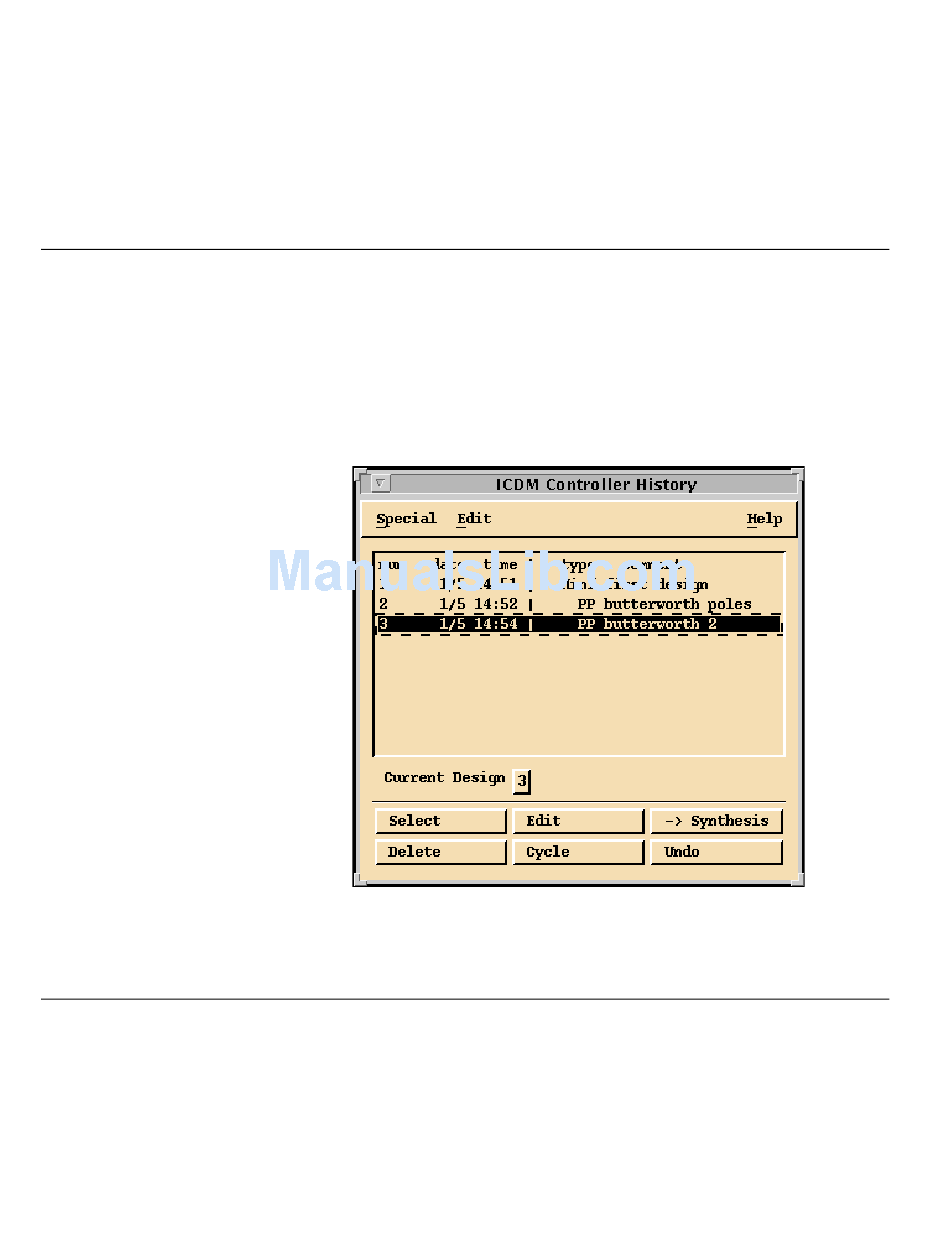

Figure 9-1. History Window

9-2
