Chapter 3

ICDM Main Window

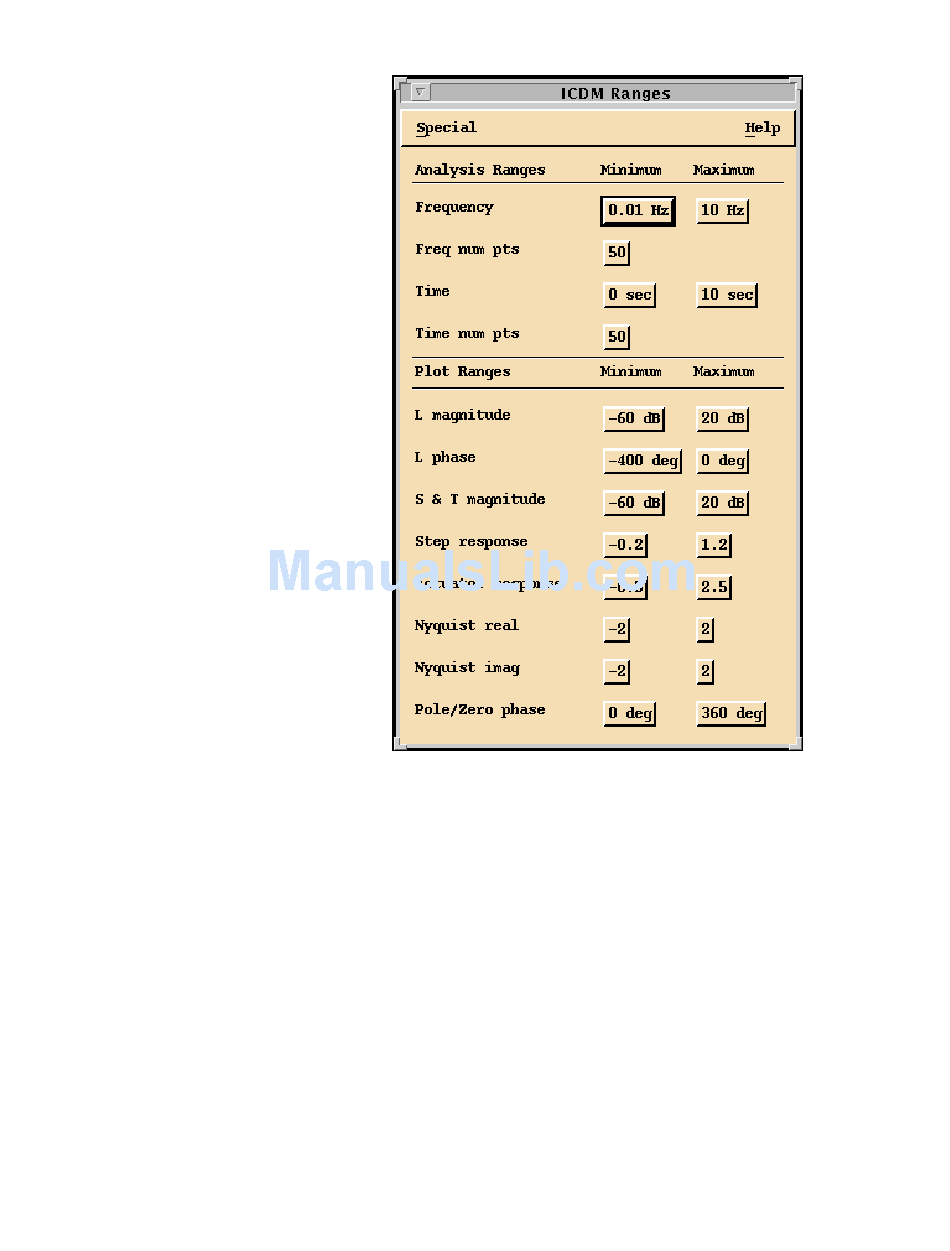

Figure 3-3. ICDM Ranges Window

Plot Magnify Windows

In addition to the standard plotting features (zooming, data-viewing, and

interactive re-ranging) described in the

General Plotting Features

section

of Chapter 2,

Introduction to SISO

Design, the plots in the ICDM Main

window support another feature: plot magnify windows.

Selecting Plot»Plot Magnify or pressing <Ctrl-M> or in the ICDM Main

window will cause the cursor to change into a crosshairs symbol.

Positioning the cursor over an ICDM plot and clicking the left mouse

button causes the plot to appear, in a new window called a Plot Magnify

window, as shown in Figure 3-4. This window can be resized using the

window manager, and can be independently re-ranged. Refer to the

Ranges

3-7
