Setup and Synthesis Method

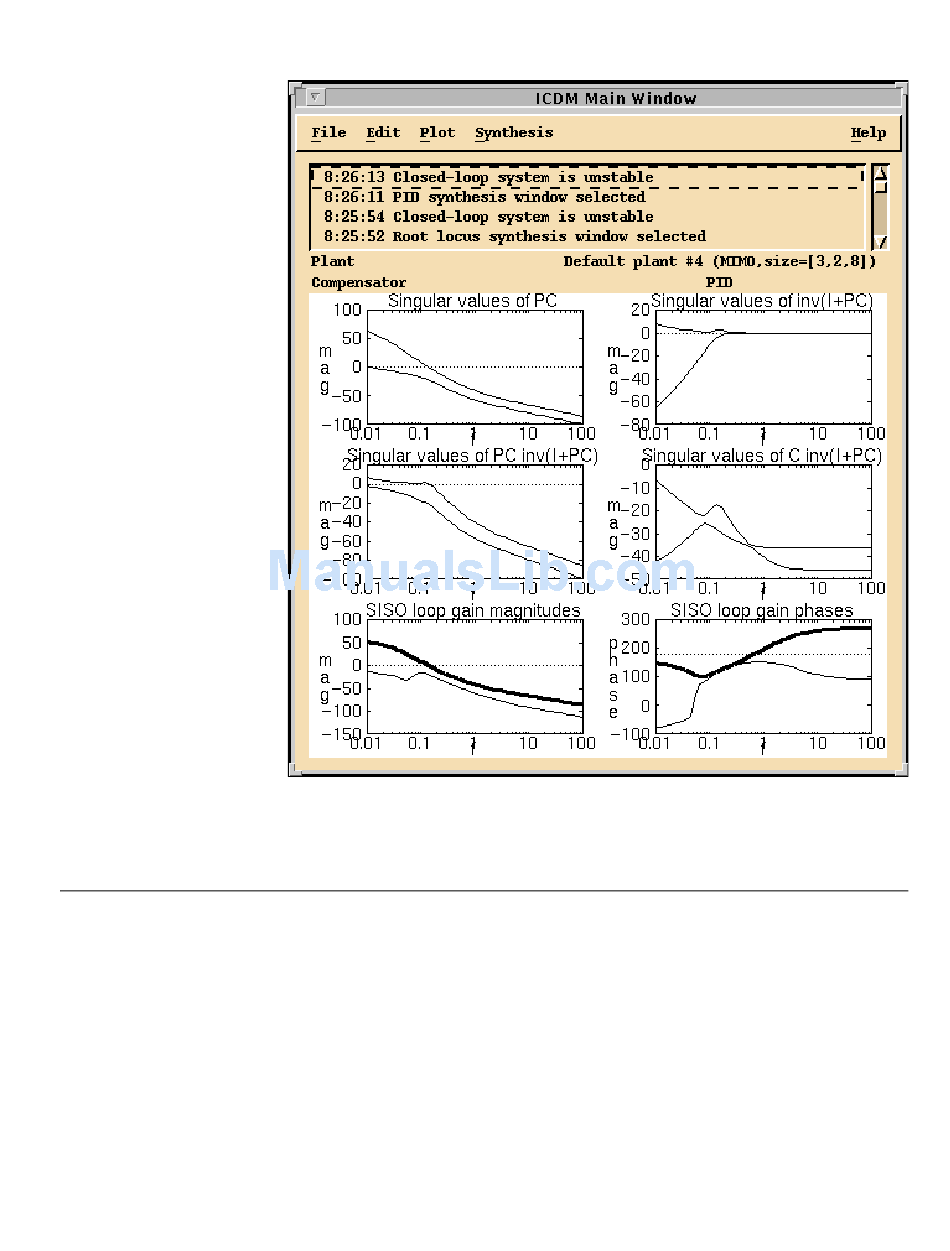

Figure 13-2. Multi-Loop Gain and Phase Plots Added to the ICDM Main Window

This section describes the setup and synthesis method for multi-loop

synthesis.

In most multivariable control design methods such as synthesis, no specific

assumptions are made about which loops should be closed and which ones

not. In general, all components of the resulting controller transfer function

will be nonzero. The multi-loop synthesis method allows the user to close

13-3

Xmath Interactive Control Design Module

Chapter 13

Multi-Loop Synthesis
