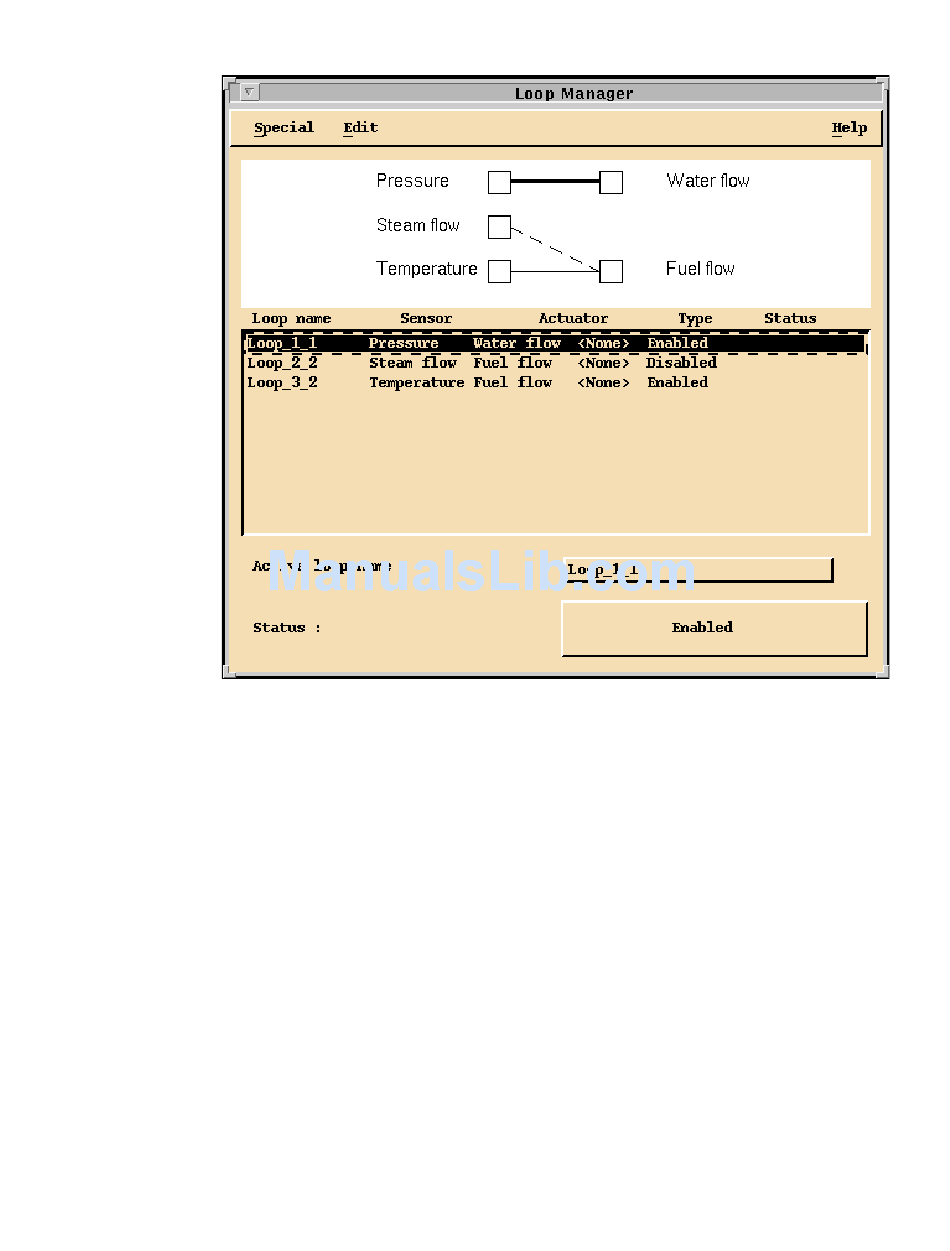

Figure 13-1. Multi-Loop Main Window

After the Multi-Loop window is opened, two plots are added at the bottom

of the ICDM Main window for display of the loop gain magnitude and

phase of the control loops that will be synthesized with the Multi-Loop

method (refer to Figure 13-2).
