General Plotting Features

All of the plots in the ICDM Main and other windows support several

useful features: arbitrary re-ranging, zooming, data-viewing, and

interactive (graphical) re-ranging.

Every ICDM window has an associated Ranges window that can be used to

set the ranges of the sliders and plots appearing in the window, as well as

other parameters such as numbers of points plotted. The Ranges window

can be opened by selecting Ranges on the View or Plot menu, or by

pressing <Ctrl-R> in the window in question. In addition, every ICDM

Chapter 2

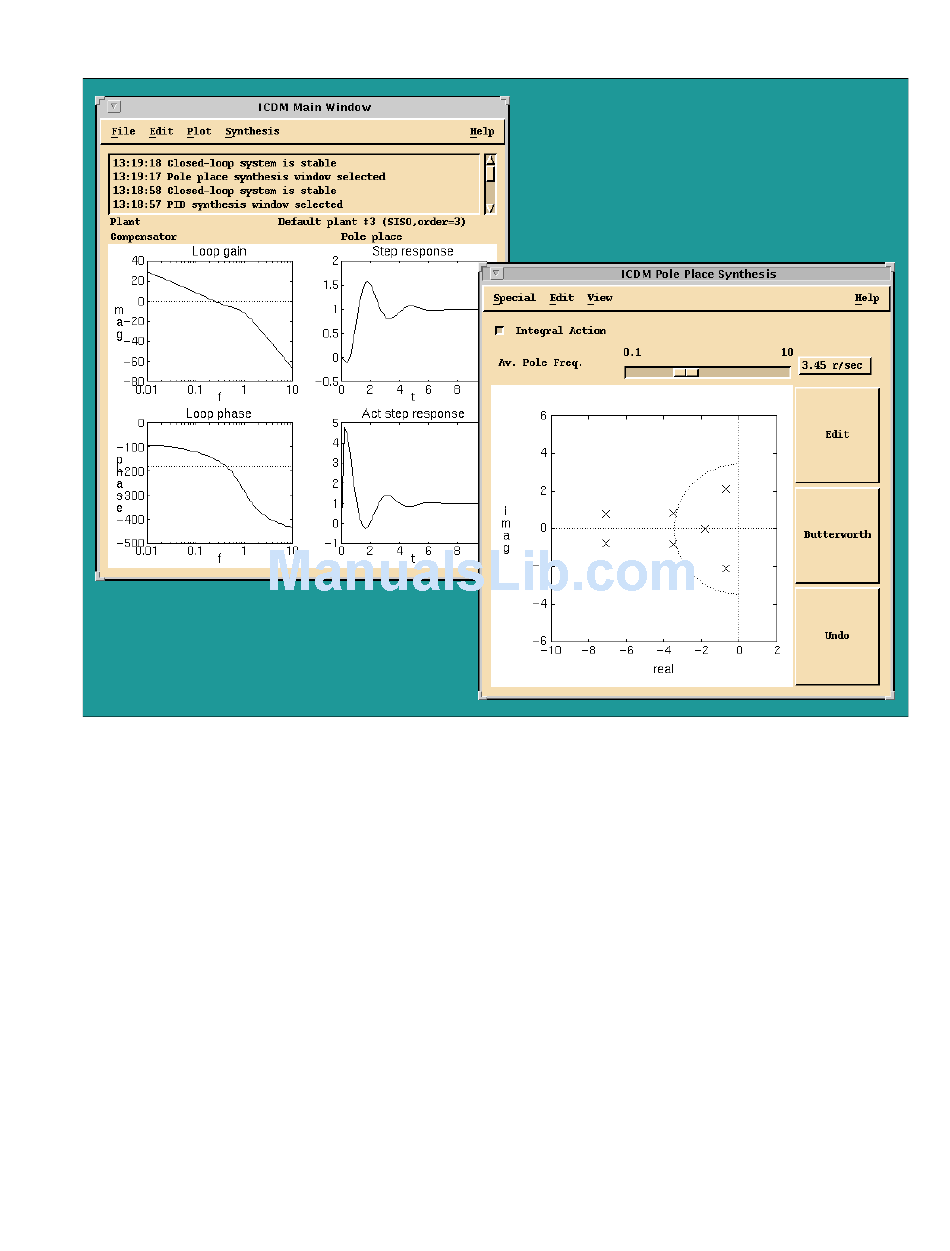

Figure 2-4. Simple ICDM Session

2-11

Xmath Interactive Control Design Module

Introduction to SISO Design
