70
Adjustment.
Side View
AILERON
20mm
20mm
FLAP
40mm
FLAP
AILERON

Two wheel retract system

Make sure to assemble retracts as instructed below.
3-way
pressure inlet
Strut
3-way
pressure inlet
Quick release connector
Pressure reduction inlet
Ø1.7mm
Please insure the sealing of the retract
system before flight .
Pleas notice the inner diameter for each
side of the pressure reduction inlet.
Switch
Strut( 90 )
2
Air line (3000mm)
Retainer
3-way pressure inlet
1
Air tank
Clevis
1
Air inlet
Rod (2X300mm)
Quick release connector
1
Pressure reduction inlet
TP Screw(2x14mm)
2
71
The centre of the Gravity.
136mm
3-way
pressure inlet
Air inlet
Air tank
Quick release connector
Ø0.2mm
S w i tc h
1
1
3
1
1
Air valve
2
The status when the
1
gear up
14

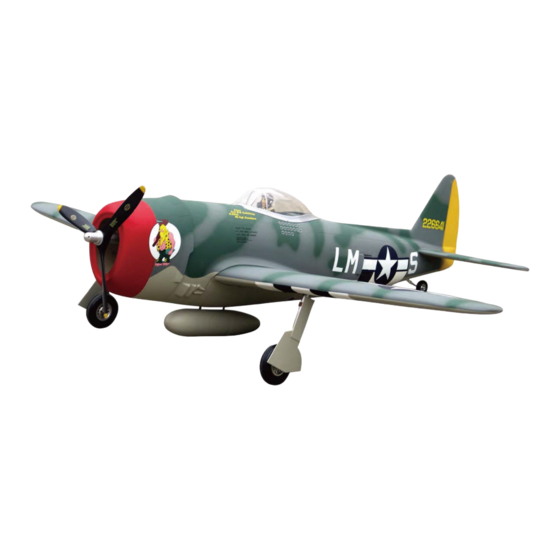

P-47D Thunderbolt
Strut

Specification:

Length
:1463 mm(57.6")
Wing Span
:1800 mm(73.2")
Wing Area
:55.3 sq. dm
5.95 sq. ft
Wing Loading :117.5 g/sq. dm
38.5 oz/sq. ft
Flying Weight :6.5 kg(14.3 lbs)
Radio
:6ch&9 servos
Engine
:108 2-cycle
120 4-cycle
Air valve
Pull out length of 8mm
to make gear down

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47D Thunderbolt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Troy Built Models P-47D Thunderbolt

  • Page 1: Instruction Manual

    The centre of the Gravity. Adjustment. P-47D Thunderbolt Side View AILERON 20mm 20mm FLAP 40mm FLAP 136mm AILERON Two wheel retract system Make sure to assemble retracts as instructed below. 3-way pressure inlet 3-way pressure inlet Strut Strut Air inlet...
  • Page 2 Epoxy plies under the canopy and assemble the Epoxy the fixed landing gear to the main wing. canopy to fuselage with screw. (with 9 servos), 1.5mm 6 channel radio for aiplane is highly recommended for this model. TP Screw (2.3x8mm) Ply (15x15x6mm) Accessory list for the coming installation steps.
  • Page 3 Epoxy solid wood plates to appropriate position Mount the receiver and battery in the fuselage. Assemble the aileron to main wing with instant type inside the fuselage as below. Accessory list for the coming installation steps. CA glue Ply (20x15x6mm) Clevis Retainer Rod (2x300mm)
  • Page 4 Keep some space about 1mm width between trailing Secure the servo.Install the nylon control horn Accessory list for the coming installation steps. Assembly of the rudder servo. edge and flap. and connect the linkage. Retainer TP Screw (2.3x12mm) Washer(2x5mm) Screw (2x10mm) Trailing Clevis Ball joint...
  • Page 5 The sketch map of assembling the wheel steeling The standard sketch map will be as below when the The sketeh map of the linkages on the rudder shaft. mount to appropriate position in the fuselage. Install the nylon control horn and connect the linkage. main wing install completion.
  • Page 6 Epoxy the fuel tank to the fuselage Drill holes to appropriate position in the tail fuselage. Cut away the shaded portion for assembling the gear house very well. Epoxy the main wing together tightly. Epoxy the wheel house to the wings carefully. 20mm 110mm Main wing joiner...
  • Page 7 Epoxy the plies to fire wall and assemble the Install the throttle servo Accessory list for the coming installation steps. Mount the main wing on the fuselage. engine mount to them.(see 36 step) Screw (4x35mm) Set screw (3x4mm) Washer (4x8mm) Stab joiner(12x267mm) 6.2mm Pin hinge(24x24mm)
  • Page 8 Keep some space about 1mm width between the Drill two holes at the stabilizer root base on rib template Keep some space about 1mm width between the The front view when the engine install completion. elevator and horizontal tail edge. and wood dowel in them.
