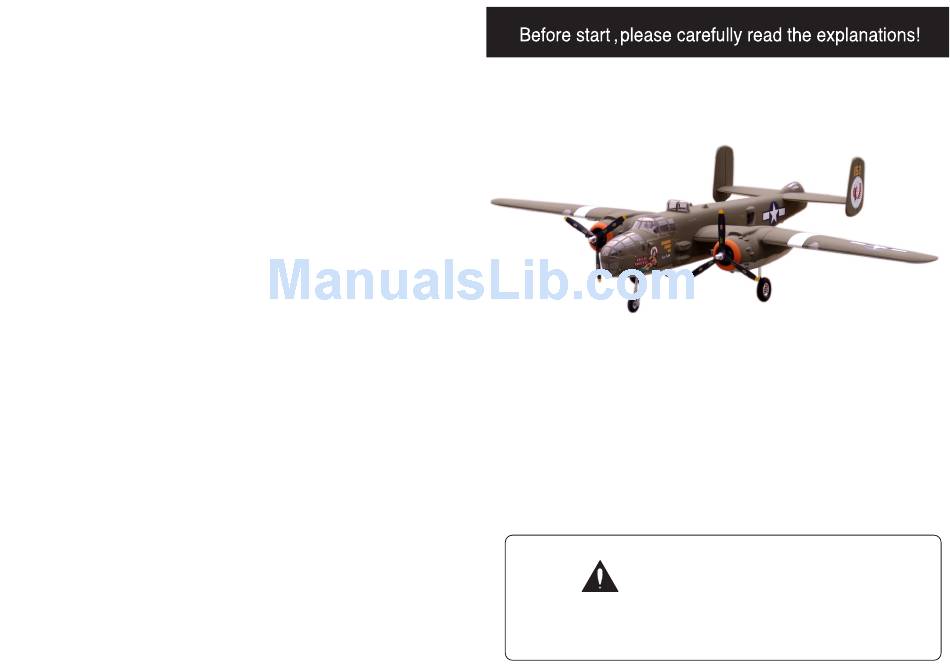

B-25 Mitchell
Specification:
Length
:1935 mm(76.2")
Wing Span
:2420 mm(95")
Wing Area
:77.6 sq. dm
7.82/sq.ft
Wing Loading :128 g/sq. dm
42 oz/sq. ft
Flying Weight :10 kg(22.1 lbs)
Radio
:6ch&13 servos
Engine(a pair) :91 4-cycle
SAFETY PRECAUTIONS
INSTRUCTION MANUAL
This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.
