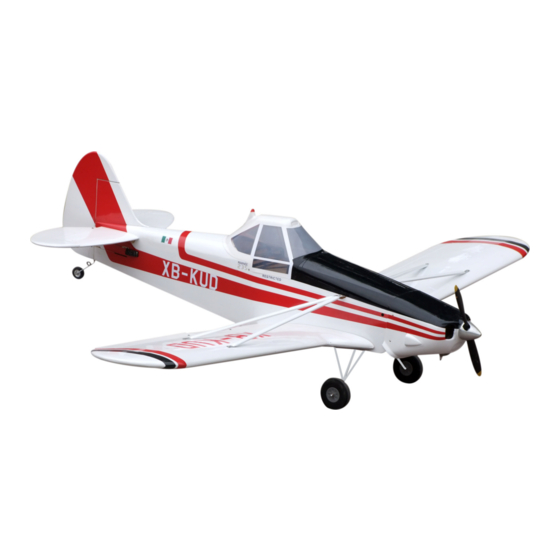

Troy Built Models PA-25 Instruction Manual

Troy Built Models PA-25 Instruction Manual

Advertisement

Quick Links

PA - 25

Specification:

Length
:1694 mm(66.7")
Wing Span
:2449 mm(96.4")
Wing Area
:87.1sq.dm
9.4sq.ft
Wing Loading :71.2g/sq.dm
23.3oz/sq.ft
Flying Weight :6.2kg(13.6lbs)
Radio
:6ch & 8servos
Engine:
:26cc-30cc

SAFETY PRECAUTIONS

INSTRUCTION MANUAL
This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Troy Built Models PA-25

  • Page 1 PA - 25 Specification: Length :1694 mm(66.7") Wing Span :2449 mm(96.4") Wing Area :87.1sq.dm 9.4sq.ft Wing Loading :71.2g/sq.dm 23.3oz/sq.ft Flying Weight :6.2kg(13.6lbs) INSTRUCTION MANUAL Radio :6ch & 8servos Engine: :26cc-30cc This R/C airplane is not a toy! (The people under 18 years old is forbidden from flying this model) First-time builders should seek advice from people having building experience.If misused or abused,it can cause serious bodily injury and damage to property.
  • Page 2 (with 8 servos), 6 channel radio for aiplane is highly recommended for this model. : 4-cycle .120 2.5 in Spinner " Pre-cover the covering with clean cloth! Warning Start at low setting. Increase the setting if Remove the covering with proper necessary.If it is too high,you may damage pressure to cut through only the covering itself.Otherwise, the film.
  • Page 3 Adjustment of the elevator,be sure it can work perfectly. Apply instant type AB glue to appropriate position in the Centre of the Gravity. Accessory list for the coming installation steps. trailing edge and assemble the ailerons to them. Rod (2.5x300mm) TP Screw (2.3x12mm) Servo tray(70x58x2mm) Pivot&round hinge(4.5X67mm)
  • Page 4 Fix the fuselage top cover to the fuselage with screws as Drill holes to appropriate position in the cowling and assemble Keep about 1mm width space between trailing edge Apply instant type AB glue to the control horn and the slots in the illustration.
  • Page 5 Install the control horn and connect the linkage. Accessory list for the coming installation steps. The sketch map when the undercarriage install completion. The standard sketch map when the kit install completion. Make sure to glue securely. Collar (5mm) If not properly glued, a failure in flight may occur. Collar Securely glue together.If coming off during flights, you'll lose control of your airplane which leads...
  • Page 6 Fix the wing to fuselage with screws throught the holes Keep about 1mm width space between elevator The sketch map when the engine install completion. Assembly of the fuel tank. and trailing edge. applied in the wings and fuselage. Screw Tailing edge Spring Washer...
  • Page 7 Install the engine mount tubes to the fuselage,lock them The front view once the engine install completion. Accessory list for the coming installation steps. Install the control horn and connect the linkage. from inside of the fuselage. Collar Screw (4x45mm) Screw (2x10mm) Collar (3mm) Washer(4x8mm)
  • Page 8 Lock the linkage to the control horn with screws and nuts Trim a slot and drill a hole in the rudder for helping The sketch map of how the steel wires works for the rudder. Epoxy the rudder to the vertical fin.. as below.
