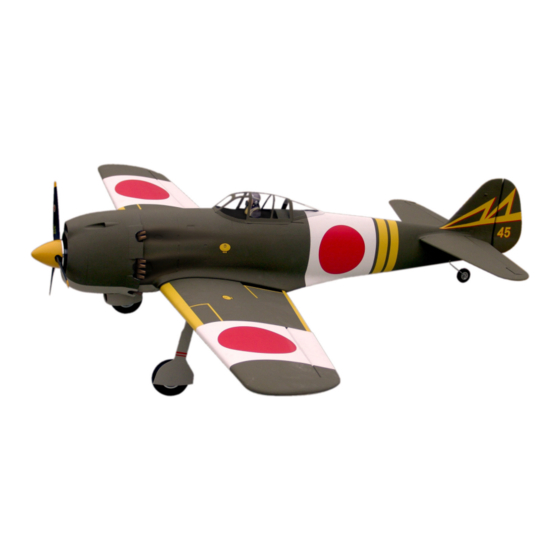

Ki84 Hayate
Specification:
Length
:1484 mm(58.4")
Wing Span
:1829 mm(72")
Wing Area
:56.9 sq. dm
6.1 sq. ft
Wing Loading :107.2 g/sq. dm
35.1 oz/sq. ft
Flying Weight :6.1 kg(13.4 lbs)
Radio
:6ch & 8 servos
Engine
:120 4-cycle

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.
